| Name | Biological Fermentation System BK-BR10 |
| Code | biobase-0743 |
| Type | Standard |
| Brand | Biobase |
| Category | New Products |
| subcategory | New Products |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |

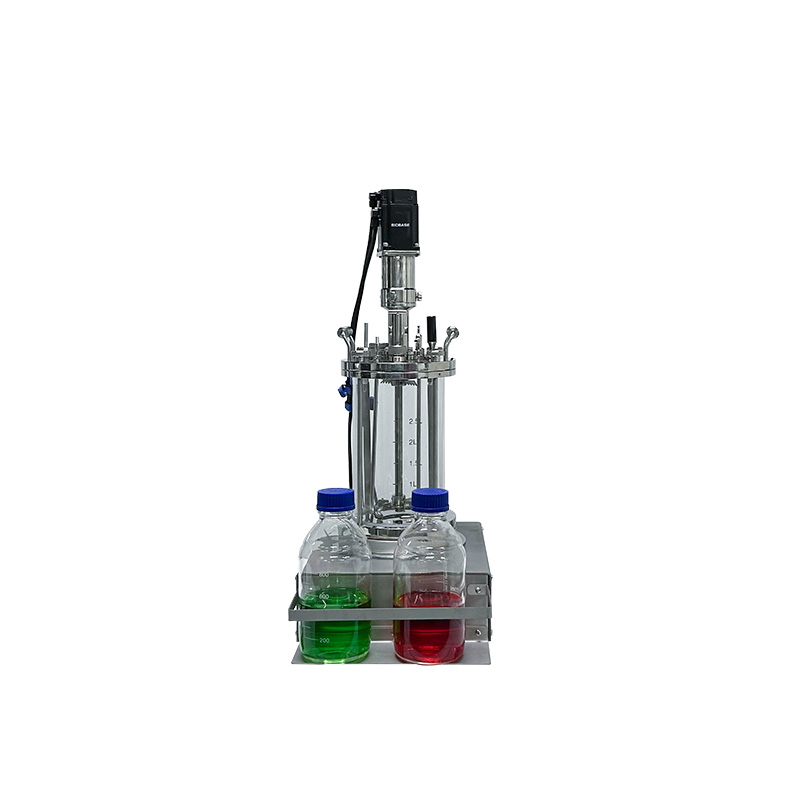

The Biological Fermentation System is an advanced setup designed for the efficient cultivation of microorganisms, cells, and enzymes for various biotechnological applications. Ideal for research, and food industries, this system enables controlled fermentation processes, ensuring optimal growth conditions for yeast, bacteria, and other cell types.
Features:
1. Large color touch screen, simple interface and operation.
2. The tank body is made of high temperature and corrosion resistant borosilicate glass, which can visually observe the state of the tank.
3. The peristaltic pump is easy to load, and the 4 fixed-speed peristaltic pumps can be directly used for the control of acid supplementation or alkali supplementation or feeding or defoaming.
4. The entire system is simple to configure, and can quickly enter into fermentation operations or new project research and development, shortening process optimization time.
Technical Parameters:
Model | BK-BR10 | |
Tank System | Capacity | 10L, Working volume: 70% |
Sterilization Method | Sterilization in off-position autoclave | |
Tank Structure | Imported SUS316L high quality stainless steel(food hygiene grade), high strength acid and alkali corrosion resistant stainless steel tank body | |
Aspect Ratio | 1:2(changeable) | |
Polishing | Internal and external polishing, polishing accuracy is RA0.4, reduce the chance of infection. | |
Tank Cover Interface | Flame ring inoculation*1, PH sensor interface*1, DO sensor interface*1, temperature sensor interface*1, spare ports *2(for feeding, defoamer and acid and alkali), sensor with foam, exhaust port with condensing device | |
Stirring System | Stirring Method | The magnetic stirring system is suspended on the strong magnetic machinery, and the magnetic stirring at the bottom of the tank without thimble is stable in speed. High performance mixing paddle, defoaming paddle, AC speed motor, stepless speed regulation |
Sealing System | No mechanical seal, not easy to leak | |
Agitating Valve | Fermentation special standard six-blade flat paddle, the height of the blade can be adjusted, and different types of mixing paddle can be changed according to the special requirements of the fermentation process | |
Motor | Variable frequency and variable speed motor, speed setting controller | |
Stirring Shaft | The maximum stirring speed will not be lower than 980rpm during the life of the fermenter | |
Max Speed | 1000rpm/min±5rpm | |
Aerating System | Aerate | Rotameter manual control, according to the process requirements to adjust and control the flow of each gas |
Air System | Configure primary fine filtering | |
Fine Filter Accuracy | 0.2μm | |
Temperature Control | Control Mode | Intelligent PID control |
Control Range | Cooling water temperature +5~65℃±0.2℃ | |
Resolution | 0.1℃ | |
Pressure Control | Control Mode | Manual |
Control Range | 0~0.2MPa | |
PH Control | Control Mode | Two peristaltic pump switch control flow acid and base, automatic control, automatic metering, intelligent PID control |
Display Range | 0.00~14.00pH±0.01pH | |
Control Range | 2.00~12.00pH±0.02pH | |
DO Control | Control Mode | It can be controlled with parameters such as speed, air flow, tank pressure and feeding, fermentation process sequence control(according to fermentation time, DO automatic variable control, at least 10 stages) |
Measuring Range | 0.1~150% | |
Control Accuracy | ±3% | |
Resolution | 0.1% | |
Foam Control | Detection | Electrodes automatically detect foam or liquid levels |
Control Mode | Peristaltic pump automatically add defoamer or feed, and measure, automatic PID control and alarm | |
Defoaming Control | Sensitivity | 100~100000Ω |
Detection | Automatic foam detection | |
Defoaming Method | Peristaltic pump automatically adds defoaming agent | |
Feeding system | Control Mode | Switch control, automatic flow and metering, automatic PID control, fermentation process segmentation control, the fermentation process is controlled in stages |
Controller Function | Supplement quantity curve analysis, add quantity accumulation, display record, batch report analysis data saving | |
Biological Process Controller | Controls Parameter | Temperature, PH, Dissolved Oxygen, Speed, Tank Pressure, Air Flow, Foam, Liquid Level, Multiple Feed, etc |
Detecting Parameter |
