| Name | Horizontal Precision Forced Air Drying Oven |
| Code | scitek-0020 |
| Type | Standard |
| Brand | Scitek |
| Category | Ovens and Furnaces |
| subcategory | Forced Convection Drying Oven |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Capacity : 20L / 50L / 100L / 200L / 625L
Circulation Mode : Forced air convection
Temperature Range : RT+10~250℃
Timer : 1 - 9999min
Horizontal precision forced air drying ovens with forced convection are ideal for research and quality assurance applications.
Forced Air Drying Oven Specifications:
| Model | FDO-20A | FDO-50A | FDO-100A | FDO-200A | FDO-625A | |
|---|---|---|---|---|---|---|
| Capacity (L) | 20 | 50 | 100 | 200 | 640 | |
| Circulation Mode | Forced convection | |||||
| Size(WxDxH)(mm) | Internal | 300x300x270 | 420x350x350 | 550x350x520 | 600x550x570 | 800x800x1000 |
| External | 600x470x420 | 710x520x520 | 840x530x730 | 890x730x780 | 1090x980x1180 | |
| Temperature | Range (℃) | RT+10~250 | ||||
| Fluctuation (℃) | ±0.5 | |||||
| Resolution (℃) | 0.1 | |||||
| Uniformity (℃) | ±2.5% | |||||
| Sensor | PT100 | |||||
| Controller | PID | |||||
| Display | High efinition LCD | |||||
| Timer | 1~9999min | |||||
| Material | Internal | High-quality brushed stainless steel | ||||
| External | Electro-galvanized steel with antimicrobial powder coating | |||||
| Shelves(Standard / Max ) | 2 | |||||
| Test Hole (Optional) | Φ25, 50, 80mm | |||||
| Safety Device | Leakage protector, over temperaure visible & audible alarm | |||||
| Electricity | Voltage/Frequency | AC 220/110V, 50/60Hz | AC 380V 50Hz | |||
| Consumption (W) | 500 | 750 | 1500 | 2000 | 4000 | |
| N.W./G.W. (kg) | 30/45 | 40/50 | 55/80 | 75/100 | 155/175 | |
| Shipping Size (WxDxH)(mm) | 710x600x550 | 810x640x600 | 950x680x880 | 1020x890x930 | 1200x1280x1120 | |
| Optional | Digital independent temperature limiter, multi-segment programable control (Optional USB, RS485/232 and printer), spare shelf | |||||
Forced Air Drying Oven Features:
Oven has a new synthetic silicone sealing strip to prevent heat loss, and automatically adjusts control parameters based on ambient temperature and load to optimize heating and reduce energy consumption.
Features a high-quality fan with a large impeller, which results in improved ventilation efficiency and better temperature uniformity.
Details of Forced Air Drying Oven:

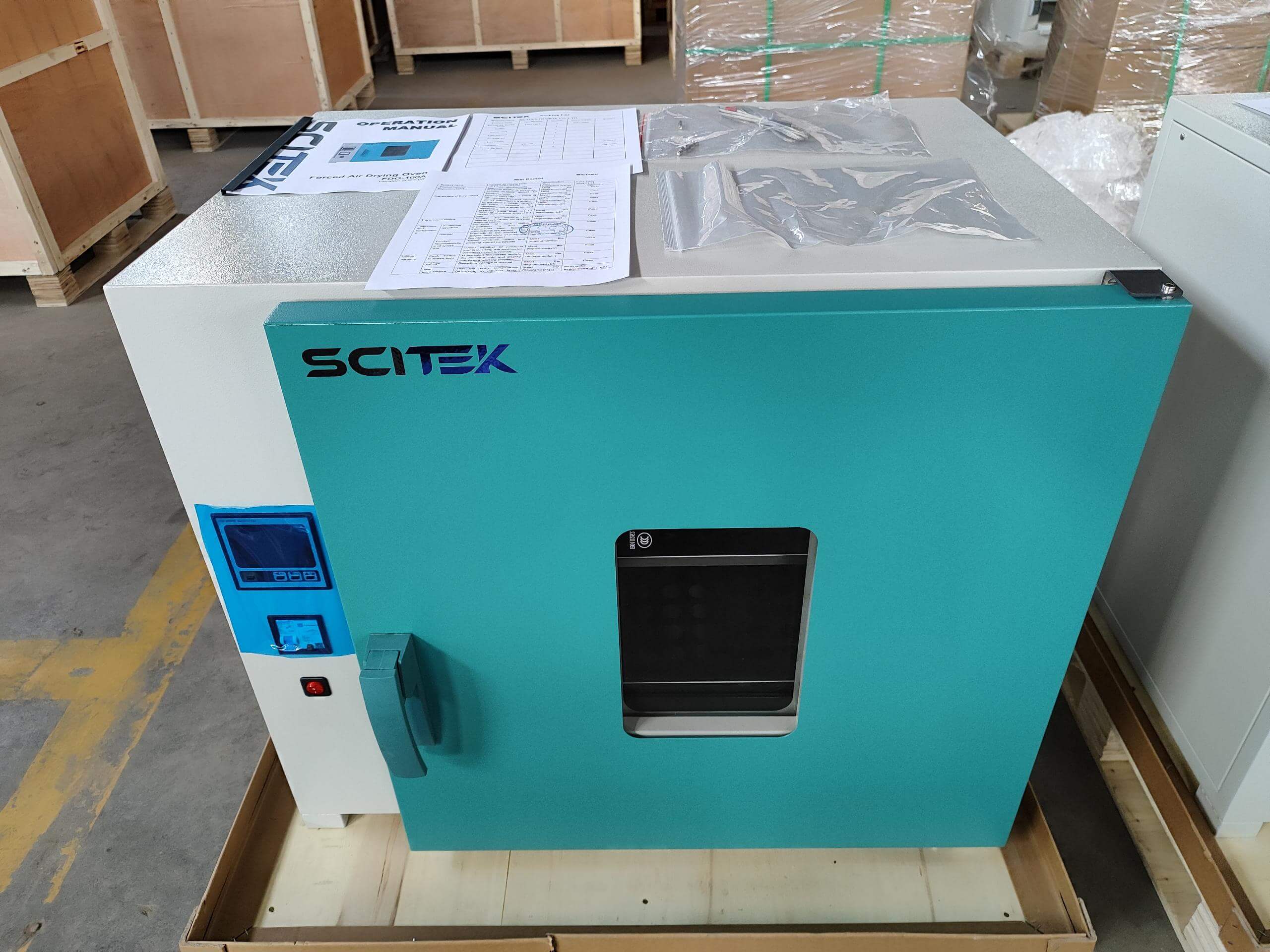

The front of this horizontal forced air drying oven features a high precision LCD display for real-time monitoring of parameters. The door of the unit has a large viewing window and an ergonomically designed door handle for easy operation.

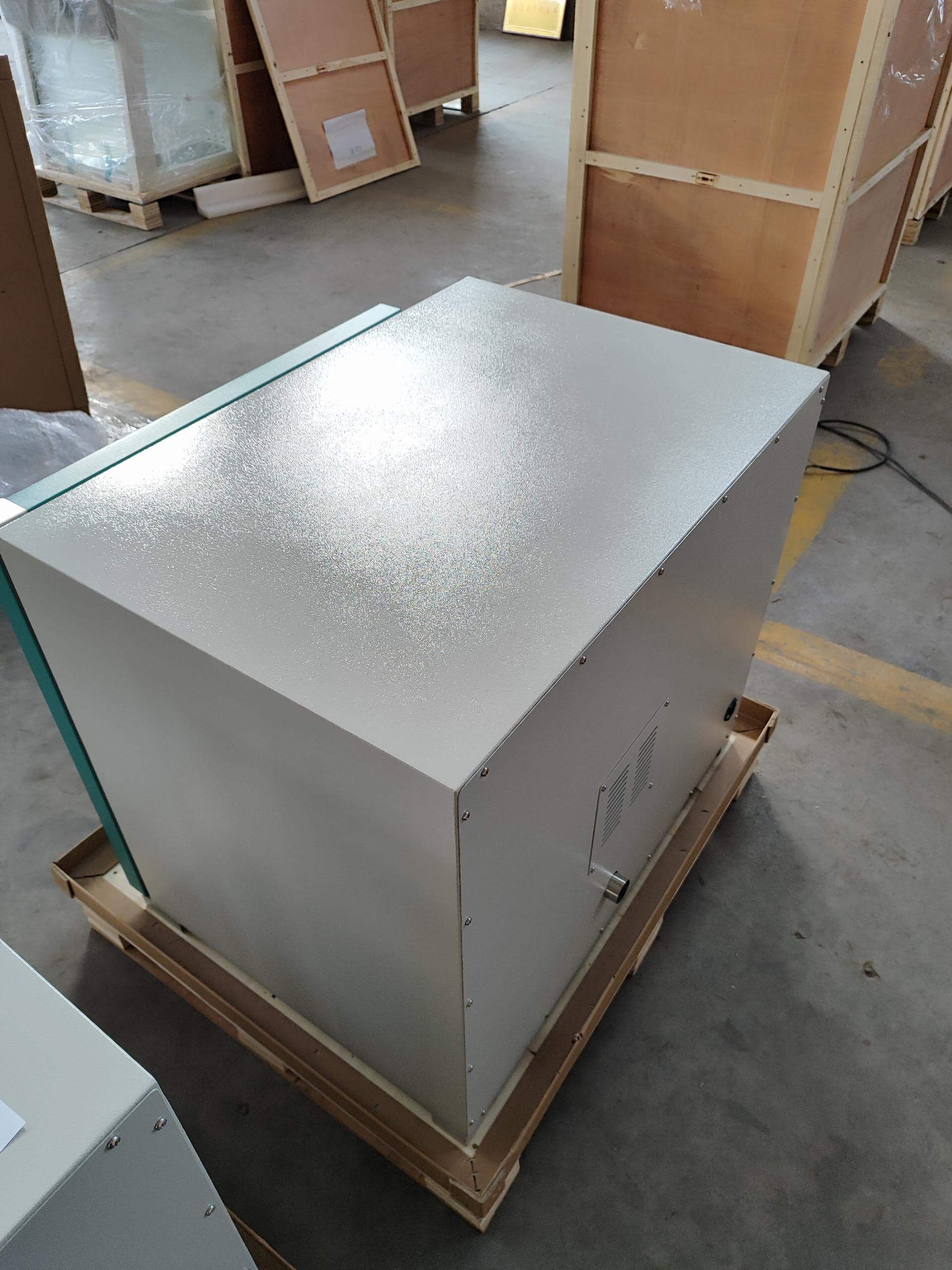

The side of the unit shows its sturdy cold rolled steel shell, which is rust resistant and durable. The back of the unit is equipped with a high-efficiency ventilation system, which ensures smooth air circulation and even temperature distribution inside the unit.
