Grinding Machine, Touch Screen (scitek-0313) Products

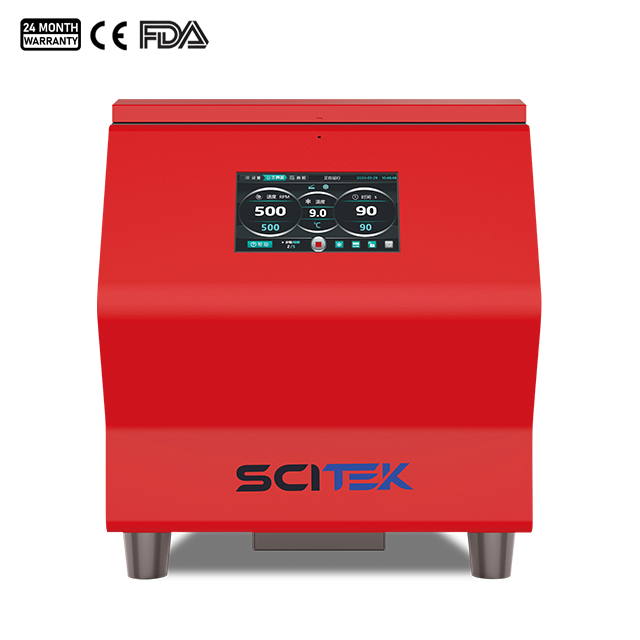

Name Grinding Machine, Touch Screen
Code scitek-0313
Type Standard
Brand Scitek
Category Grinding and Polishing Machine
subcategory Grinding Machine, Touch Screen
Unit pcs (pcs)
In Stock Yes
Berminat hub kami: wa chat
Product details for Invoice
Model : GM-BF48; GM-BF96

Grinding Frequency : 0-70 Hz/s
Program Mode : 30 sets of recipe data storage
Display : OLED touch screen
Shock Absorption Function : Yes
Grinding Ball Diameter : 0.1-30mm
The frozen tissue grinding machine is a short and efficient machine for biomedical research, especially in molecular biology.
Product Details

Frozen Tissue Grinding Machine Features:

  1. Preset grinding plan, single group cycle or multiple groups of intermittent grinding; grinding conditions are automatically recorded, and the recording interval is adjustable to facilitate traceability analysis.

  2. It can be refrigerated to -50°C. Low temperature can improve the brittleness of the sample, improve grinding efficiency and effect; low temperature protection prevents thermal degradation of the extract. The refrigeration starts continuously when the door is opened, and it quickly enters the grinding state. It only takes 30 minutes to drop the temperature from 26℃ to -50℃.

  3. High-frequency vertical bead grinding method, the same plane is uniformly stressed to ensure the crushing effect and uniformity of the sample.

  4. When a low-temperature grinding environment is required, immerse the adapter with the sample in liquid nitrogen to cool down for 1-2 minutes, remove it, and move it to the mainframe for quick fixation to start the grinding; no need to carry out the freezing process again, saving liquid nitrogen.

  5. The sample tube is fully closed during crushing; disposable centrifuge tubes and beads can be used. The sample is kept inside the tube, avoiding cross-contamination between samples and external contamination.

Frozen Tissue Grinding Machine Specifications:

ModelGM-BF48GM-BF96
Grinding Frequency0-70 Hz/s
Grinding Time0-9999s
Temperature Control Range-50℃~Room Temperature (Adjustable)
Control ModePID microcomputer intelligent control
Shock Absorption FunctionYes
Program Mode30 sets of recipe data storage
Grinding Ball Diameter0.1-30mm
DisplayOLED touch screen
Power300W
Power SupplyAC110~240V, 50/60Hz
Noise Level<55dB
Grinding Ball MaterialAlloy steel, chromium steel, zirconia, tungsten carbide, quartz sand, etc.
Adaptive Capacity2ml PE tube, 5ml PE tube (5ml, 10ml, 15ml, 25ml, 50ml, 100ml) stainless steel grinding tank
Aluminium Alloy Adapter2ml×48, 5ml×12, 10ml×8, 15ml×2, 25ml×2, 50ml×22ml×96, 5ml×12, 10ml×8, 15ml×4, 25ml×4, 50ml×2, 100ml×2
PE Adapter2ml×48, 5ml×12, 10ml×8, 15ml×2, 25ml×2, 50ml×22ml×96, 5ml×12, 10ml×8, 15ml×4, 25ml×4, 50ml×2, 100ml×2
Grinding Tube2ml PE tube, 5ml PE tube, 5ml-100ml stainless steel grinding tank
External Size (W×D×H)(mm)700x400x500
Shipping Size (W×D×H)(mm)800x540x510
Net/Gross Weight(kg)50/76
