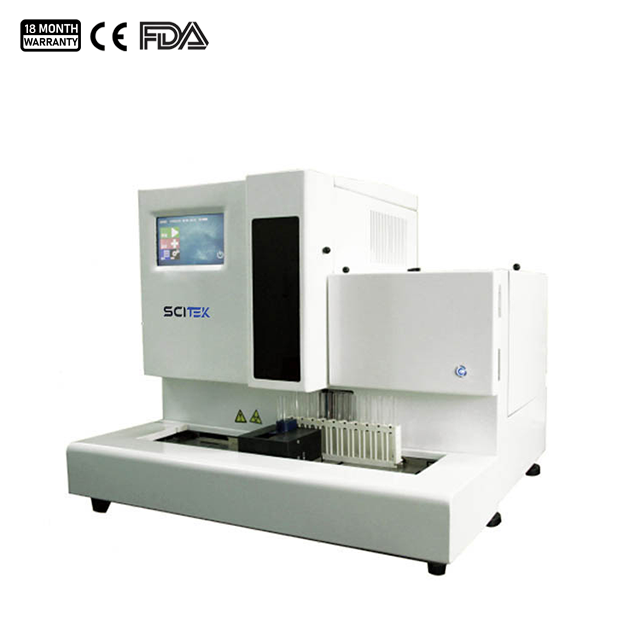

| Name | Fully Automatic Urinalysis Analyzer |
| Code | scitek-0616 |
| Type | Standard |
| Brand | Scitek |
| Category | Clinical Analyzers and Reagents |
| subcategory | Urine Analyzer |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Sample Volume : Minimum volume: 3mL
Throughput : 240 strips/hour (15 seconds/strip)
Measurement Principle : Photoelectric colorimetric method
Sizes(W×D×H)(mm) : 660x625x581
Fully Automatic Urinalysis Analyzer Specifications:
| Model | UA-240 |
|---|---|
| Test Speed | 240 strips/hour (15 seconds/strip) |
| On Board Sample Capacity | 5 racks of 10 tubes (50 samples) |
| Sample Volume | Minimum volume: 3mL |
| Aspiration Volume | Less than 1mL |
| Test Principle | Photoelectric colorimetric method |
| Test Parameters | Urobilinogen(URO), Bilirubin(BIL), Ketone (KET), Blood (BLD), Protein (PRO), Nitrite (NIT), Leukocytes (LEU), Glucose (GLU), Specific Gravity (SG), PH (pH), Ascorbic Acid (VC), Microalbumin (MAL), Creatinine (CRE), Calcium (CAL) |
| Data Storage Capacity | 20000 |
| External Output | RS-232 |
| Power Supply | AC 220V, 50Hz |
| Power | 300VA |
| Fuse | 250V 2A |
| Environment | Temperature: 15°C~35°C |
| Optimum Temperature: 20°C~25°C | |
| Relative Humidity: ≤75% | |
| Printer | Thermal Printer |
| Sizes(W×D×H)(mm) | 660x625x581 |
| Shipping Size (W×D×H)(mm) | 785x570x1015 |
| N.W./G.W. (kg) | 65/85 |
Fully Automatic Urinalysis Analyzer Features:
Fully automatic: The whole process of sample feeding, sample inletting, sample dropping, analyzing and outputting report can be completed automatically without too much personnel guarding, which saves time and workforce.
A high-precision sampling system ensures the accuracy of test strip sampling size and reduces the contamination of the worktable.
Each instrument module adopts a 32-bit ARM processor.
Unique 1C card control system: Reduce the batch difference of test strips, more accurate results.
Convenient TF card upgrade and maintenance function, users can experience the latest software support synchronously.
On-line testing can be performed with a urine sediment analyzer, combining dry chemistry test results, sediment test results and physical and chemical indicators, providing a comprehensive solution for urine.
