BIOBASE XS-208 Digital Laboratory Biological Microscope (biobase-0473) Products
Name BIOBASE XS-208 Digital Laboratory Biological Microscope
Code biobase-0473
Type Standard
Brand Biobase
Category Optical Instruments
subcategory Microscope
Unit pcs (pcs)
In Stock Yes
Berminat hub kami: wa chat
Product details for Invoice
A microscope (from Ancient Greek: μικρός mikrós 'small' and σκοπεῖν skopeîn 'to look (at); examine, inspect') is a laboratory instrument used to examine objects that are too small to be seen by the naked eye. Microscopy is the science of investigating small objects and structures using a microscope. Microscopic means being invisible to the eye unless aided by a microscope.
Product Details

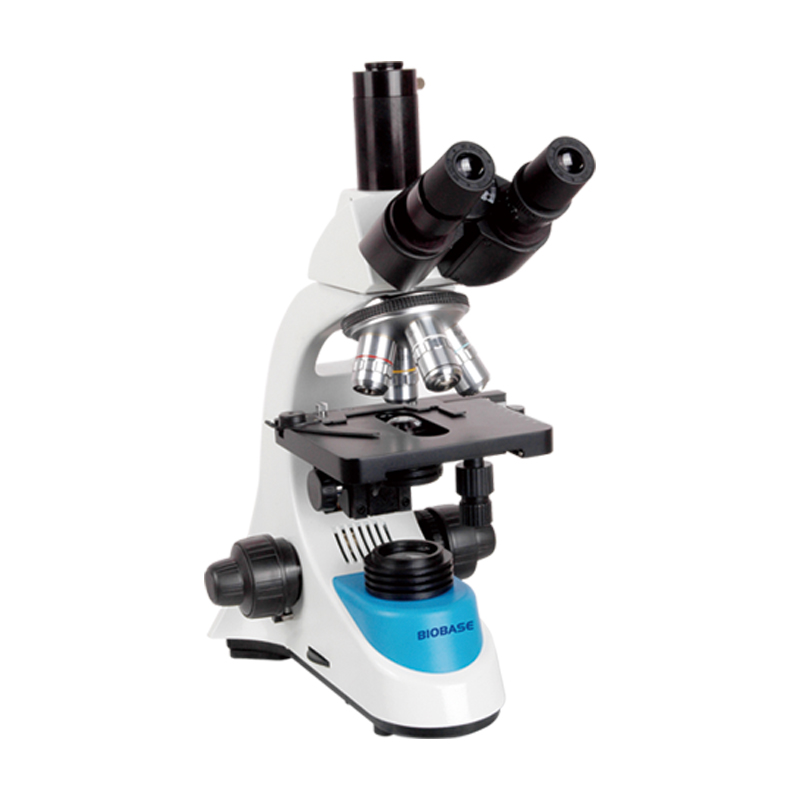

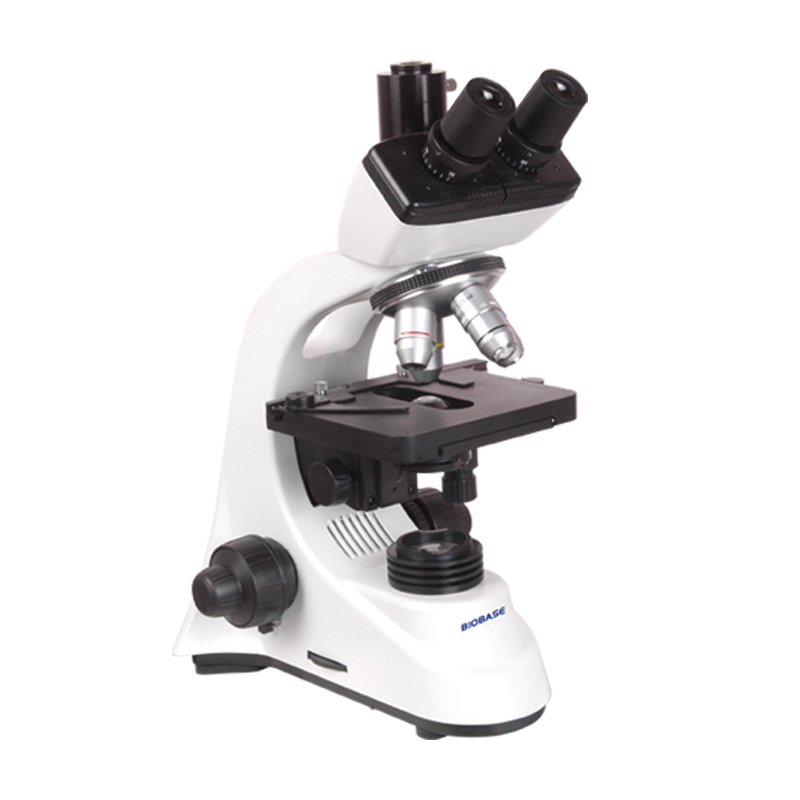

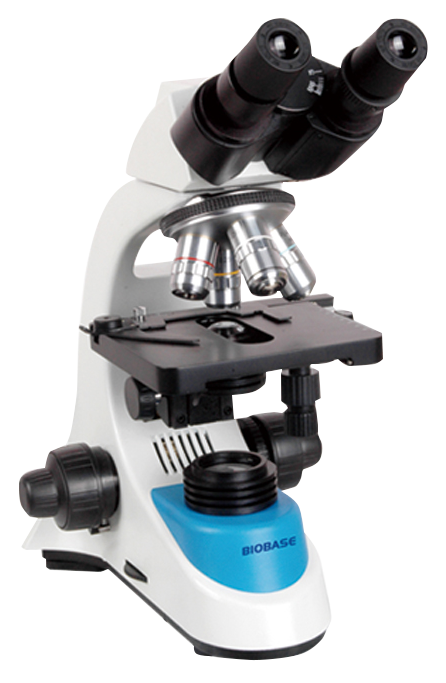

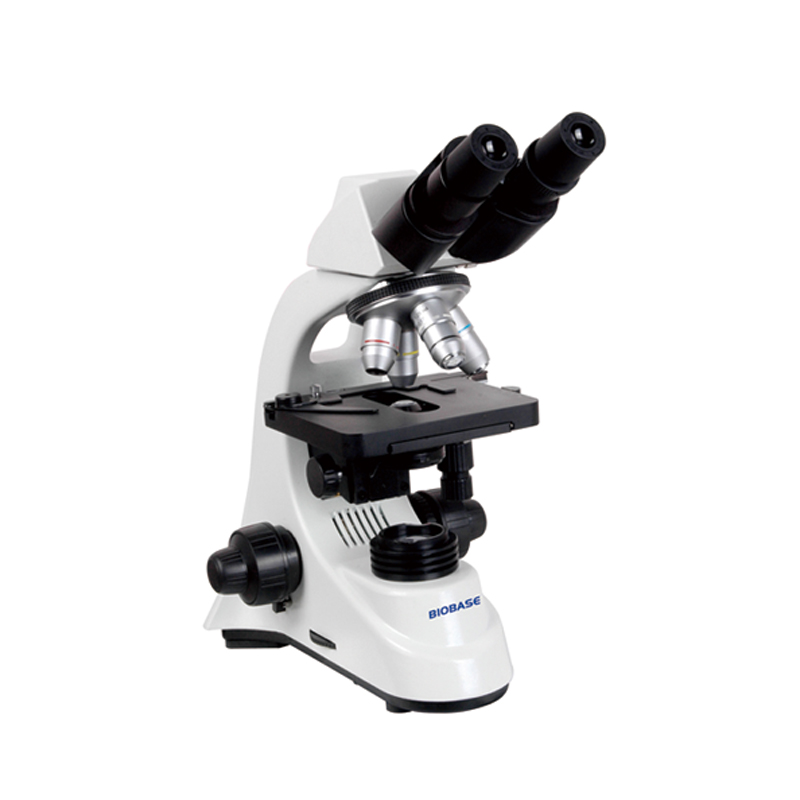

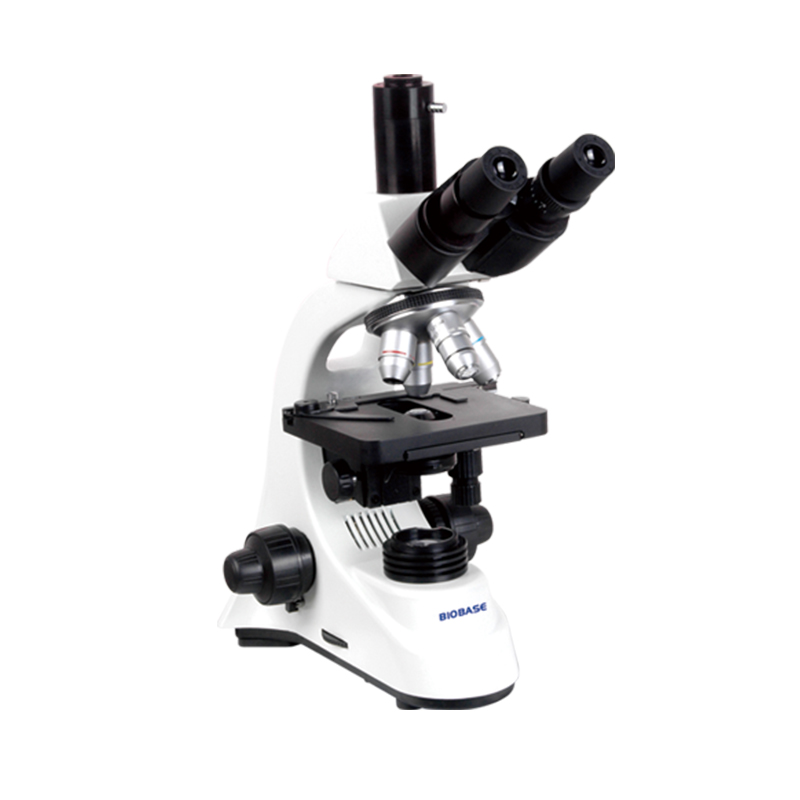

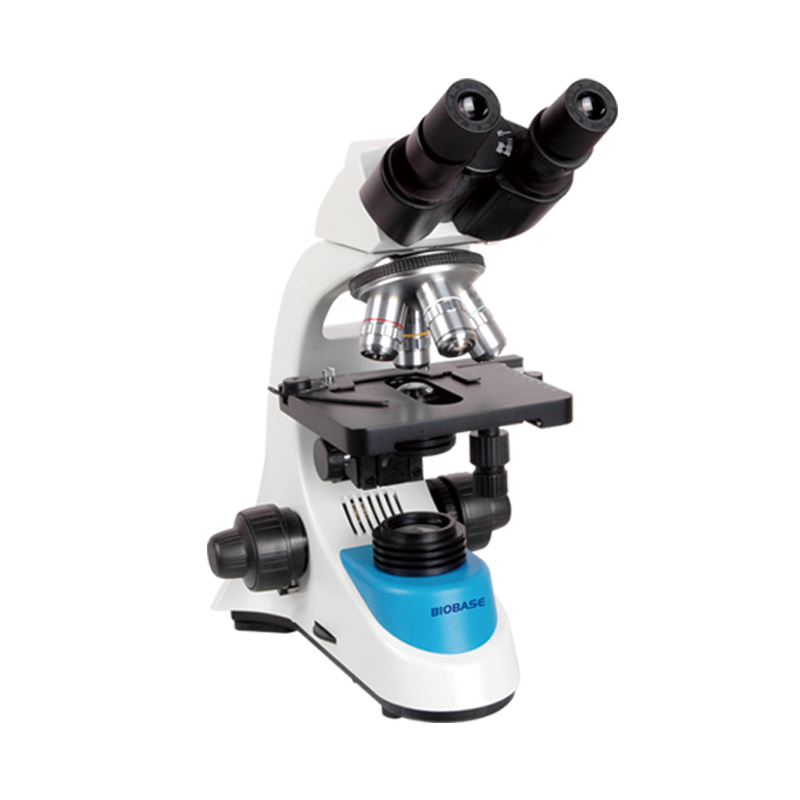

BIOBASE XS-208 Digital Laboratory Biological Microscope

Models:

Model

Specification

XS-208A

XS-208B

XS-208C

XS-208AP

XS-208BP

XS-208AB

Viewing Head

Sliding Binocular Head Inclined at 45°

√











Sliding Trinocular Head Inclined at 45°



√









Compensation Free Binocular Head inclined at30°







√



√

Compensation Free Trinocular Head  inclined at30°





√



√



Nosepiece

Ball Beating Quadruple Nosepiece

√

√

√

√

√

√

Eyepiece

Wide Field Plane-scope Eyepiece:

WF10X/18mm

√

√

√

√

√

√

Objective

Achromatic 4X,10X,

40x(Spring)100x(Spring,Oi)

√

√





√

√

Infinite Plan Achromatic 4X,10X,

40x(Spring)100X(Spring,Oil)





√

√





Stage

Double Layer Mechanical Stage 135*140mm

√

√

√

√

√

√

Condenser

ABBE NA1.25 condenser with Iris Diaphragm &filter,rack&pinion adjustable

√

√

√

√

√

√

Illumination

Build-in lumination,

LEDlamp

√

√

√

√

√

√

Power supply

AC110/220V±10%,50/60Hz

√

√

√

√

√

√

Optional
Accessories

Dark fieldcondenser,Polarization set ,Phase contrast kit

√

√

√

√

√

√

Package

Carton with foam

√

√

√

√

√

√

Package size

250*360*460mm

√
