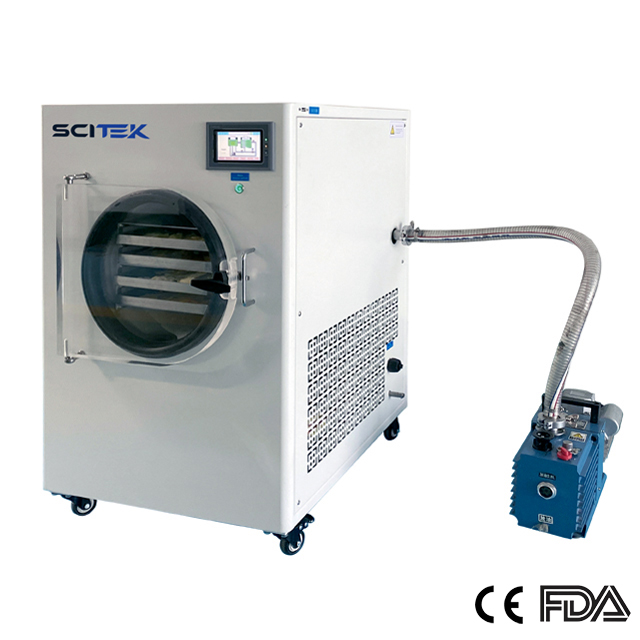

| Name | Freeze Dryer, -40/-70 ℃ Condenser Temp. |
| Code | scitek-0996 |
| Type | Standard |
| Brand | Scitek |
| Category | Freeze Dryer |
| subcategory | Freeze Dryer, -40/-70 ℃ Condenser Temp. |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Freeze Drying Area (m2) : 0.1 / 0.4 / 0.6 / 0.1 / 0.4 / 0.6
Tray Size (LxW)(mm) : 145x275
Vacuum Degree (no-loading) (Pa) : 10
Easy-to-use touchscreen displays provide flexibility and convenience
Freeze Dryer Specifications:
| Model | FD-1 | FD-4 | FD-6 | FD-1A | FD-4A | FD-6A |
|---|---|---|---|---|---|---|
| Freeze Drying Area (m2) | 0.1 | 0.4 | 0.6 | 0.1 | 0.4 | 0.6 |
| Tray (Qty) | 3 | 4 | 4 | 3 | 4 | 4 |
| Tray Size (LxW)(mm) | 145x275 | 195x450 | 330x440 | 145x275 | 200x450 | 335x445 |
| Height Between Trays (mm) | 45 | 45 | 50 | 45 | 45 | 50 |
| Condenser Temperature (℃) | -40 | -40 | -40 | -70 | -70 | -70 |
| Vacuum Degree (No-loading) (Pa) | 10 | 10 | 10 | 10 | 10 | 10 |
| Ice Condenser Capacity (kg/24h) | 3 | 5 | 6 | 3 | 6 | 8 |
| Refrigerant | CFC-free | CFC-free | CFC-free | CFC-free | CFC-free | CFC-free |
| Consumption (kW) | 0.75 | 1.5 | 2.3 | 1.7 | 2.6 | 3.3 |
| Electricity | AC220V/50Hz (standard), other electricity type can be customized | |||||
| External Size (WxDxH)(mm) | 400x550 x700 | 510x700 x850 | 700x800 x1300 | 400x550 x700 | 510x700 x850 | 700x800 x1300 |
| Shipping Size (WxDxH)(mm) | 730x700 x810 | 1080x700 x1030 | 1010x840 x1300 | 950x900 x1020 | 1170x850 x1190 | 1260x850 x1320 |
| Gross Weight(kg) | 115 | 161 | 225 | 168 | 203 | 295 |
Optional:
Optional for gas interface: Freeze dryer can inject inert gas.
In-situ freeze dryers are commonly used in the pharmaceutical and biotechnology industries for the drying of temperature-sensitive products such as vaccines, antibodies, proteins, and other biological materials. They are also used in research and development labs for the preparation of samples for analysis and storage. In-situ freeze dryers have the advantage of reducing the risk of contamination, preserving the sample integrity, and saving time and effort by eliminating the need for sample transfer.
Freeze Dryer Features:
7 inches colorful touch panel displays product sample’s temperature, condenser temperature and vacuum etc in digital and curve.
One-button start defrosting function, simple and fast.
Rack temperature can adjustable, controllable which helps to search for freeze-drying technology.
Compact design with a small footprint.
With USB interface to export the data, convenient for user information management.
Large-volume stainless steel condenser without coils, which can realize independent sample pre-freezing
Reliability:
In-situ freeze drying design, avoid the contamination during material transfer;
Imported brand compressor, high cooling efficiency and fast cooling speed.
Condenser and operation panel are made by stainless steel.
High transparent organic glass in drying chamber helps users to observe materials changes.
