| Name | Electronic & Digital Heating Mantle |
| Code | scitek-0382 |
| Type | Standard |
| Brand | Scitek |
| Category | Hotplates and Stirrers |
| subcategory | Stirring Heating Mantles |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Capacity(ml) : 100 / 250 / 500 / 1000 / 2000 / 3000 / 5000 / 10000 / 20000 / 50000
Working Time : Continuous
Max Working Temperature(℃) : 380℃ (Temperature of beating element beater)
Heating mantle uniformly heat up to 100-50000 mL of liquid up to a maximum temperature of 380°C.
Electronic & Digital Heating Mantle Specifications:

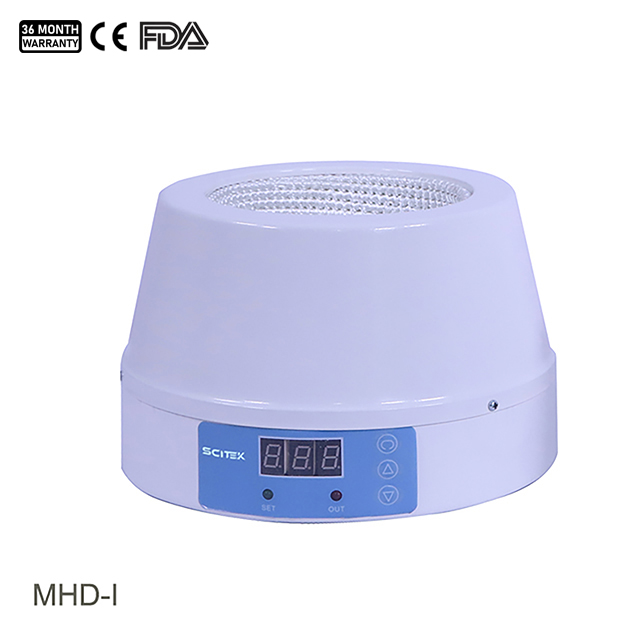

| Model | MHE-I/MHD-I | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Capacity(ml) | 100 | 250 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 | 50000 |
| Working Time | Continuous | |||||||||
| Max Working Temperature(℃) | 380℃ (Temperature of beating element beater) | |||||||||
| Power (W) | 180 | 180 | 250 | 300 | 500 | 500 | 1000 | 1500 | 2500 | 6000 |
| Power Supply | AC220/110V; 50/60Hz | |||||||||
| The Size of Working Room (DxH) (mm) | φ70x40 | φ95x50 | φ115x50 | φ150x70 | φ180x80 | φ200x100 | φ245x150 | φ310x175 | φ380x190 | φ480x270 |
| Sizes(D×H)(mm) | φ175x150 | φ175x150 | φ175x160 | φ240x175 | φ280x215 | φ289x 240 | φ354x 270 | φ414x310 | φ489x285 | φ690x475 |
| Shipping Size (W×D×H)(mm) | 270x270x240 | 270x270x240 | 270x270x240 | 320x320x260 | 360x360x290 | 360x360x330 | 420x420x260 | 480x480x330 | 550x550x450 | 780x780x560 |
| N.W./G.W. (kg) | 1.7/2.6 | 1.8/2.6 | 1.8/2.6 | 2.6/3.8 | 3.8/5.1 | 4.2/5.8 | 7/10.1 | 10.2/11.5 | 13.3/17 | 54/70 |
It is the ideal product for heating the liquid in laboratories of the fields of medicine, petroleum, chemical industry, colleges and universities and environmental protection etc.
Electronic & Digital Heating Mantle Features:
Heating mantle is the internally heater in hemisphere shape. It adopts high - temperature resistant alkali-free glass fibre to be the insulating material and seal up the nichrome resistive conductor within the insulating layer and braid it.
The case adopts the high quality cold- rolled plate and the electrostatic plastic spraying treatment on the surface.
Big heating area, speed hyperthermic, uniform temperature, good heat preservation results and no open fire.
Corrosion- resisting, ageing- resistant, durable, safety and reliable.
The digital display type has advantages of temperature setting, automatic temperature control and temperature digital display.
Way of heating:
Temperature-control (Electronic thermo regulation)
LED controller

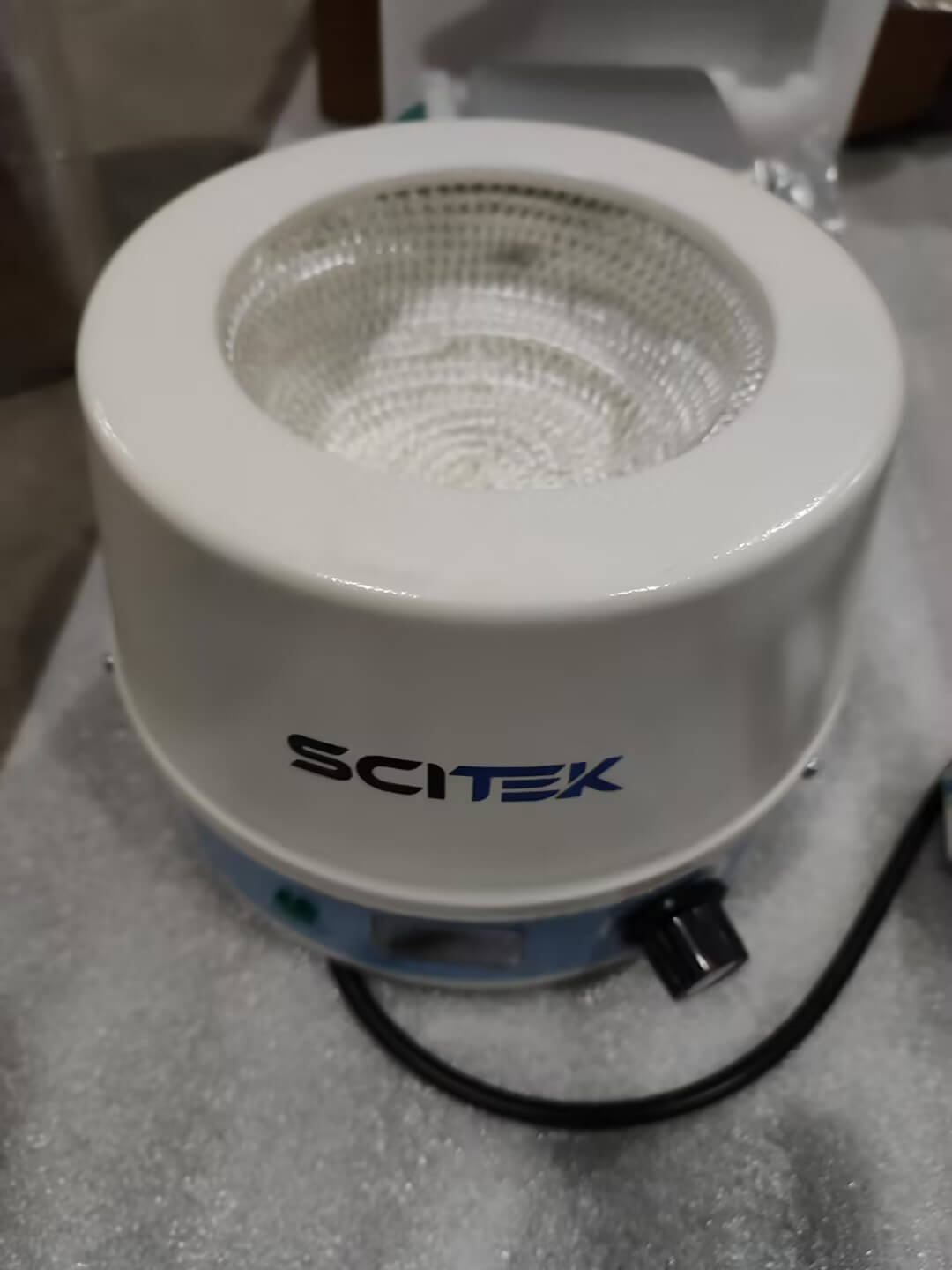

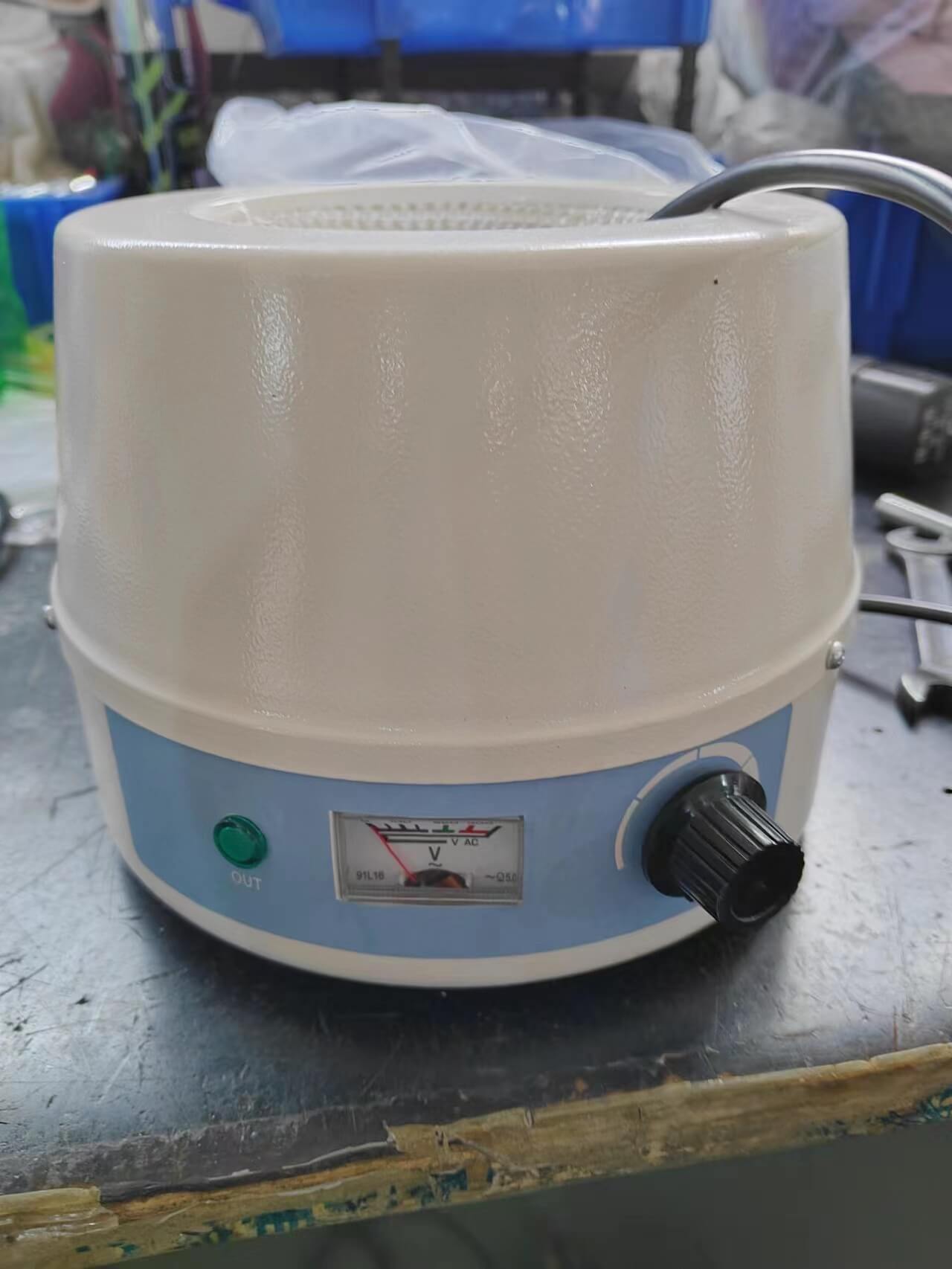

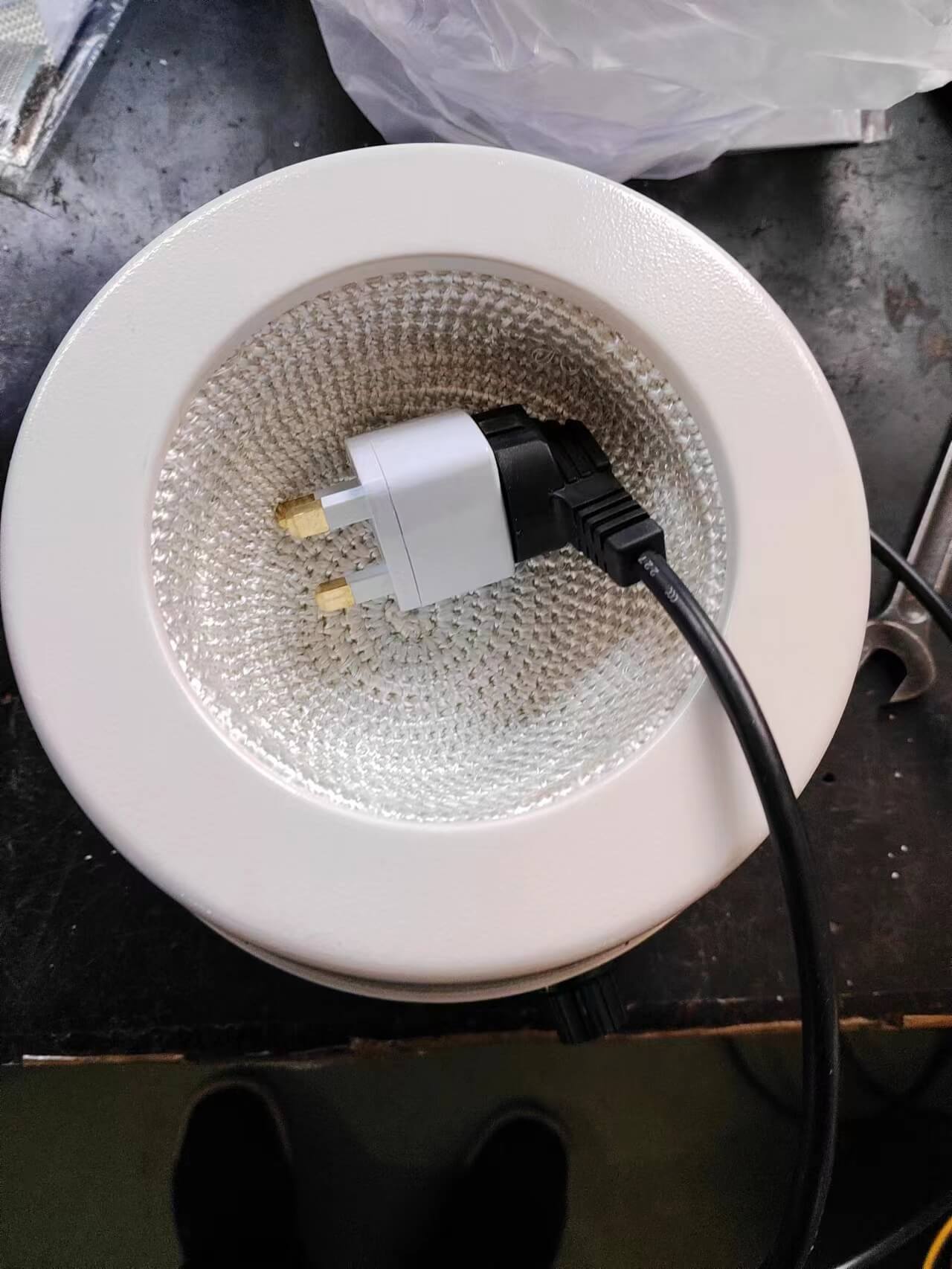

Details of Electronic & Digital Heating Mantle (MHE-I 500ml):
The heating jacket has a compact design and a small footprint, making it easy to move and store, making it suitable for small laboratories or places with limited space. At the same time, its temperature control knob design is simple and easy to operate, suitable for experiments that require prolonged heating.
Reasonable design in the heating area, can evenly distribute heat, effective heating of 500ml capacity samples, suitable for a variety of liquid or sample heating operation.
