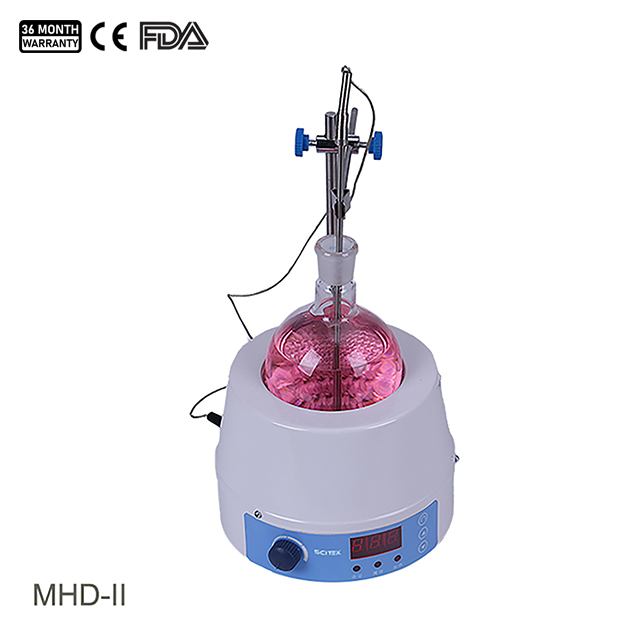

| Name | Electronic & Digital Magnetic Stirring Heating Mantle |
| Code | scitek-0383 |
| Type | Standard |
| Brand | Scitek |
| Category | Hotplates and Stirrers |
| subcategory | Stirring Heating Mantles |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Capacity(ml) : 100 / 250 / 500 / 1000 / 2000
Working time : Continuous
Max Working Temperature(℃) : 380°C (Surface temperature of the heating components)
Socope of Temperature Adjust (r/min) : start ~ 1200
Size of Working Room(DxH) (mm) : ϕ70x40 / ϕ95x50 / ϕ115x70 / ϕ150x70 / ϕ180x70
Magnetic stirring heating mantles uniformly heat up to 100-2000 mL of liquid up to a maximum temperature of 380°C.
Magnetic Stirring Heating Mantle Specifications:
| Model | MHE-II/MHD-II | ||||
|---|---|---|---|---|---|
| Capacity (ml) | 100 | 250 | 500 | 1000 | 2000 |
| Working Time | Continuous | ||||
| Max Working Temperature (℃) | 380°C (Surface temperature of the heating components) | ||||
| The Socope of Temperature Adjust (r/min) | start ~ 1200 | ||||
| Power(W) | 180 | 180 | 250 | 300 | 500 |
| Power Supply | AC220/110V; 50/60Hz | ||||
| The Size of Working Room (DxH) (mm) | ϕ70x40 | ϕ95x50 | ϕ115x70 | ϕ150x70 | ϕ180x70 |
| Sizes (D×H)(mm) | 220x195 x165 | 220x195 x165 | 220x195 x165 | 280x260 x205 | 320x300 x215 |
| Shipping Size (W×D×H)(mm) | 300x290 x260 | 300x290 x260 | 300x290 x260 | 355x350 x310 | 390x385 x340 |
| N.W./G.W. (kg) | 3/4 | 3/4 | 4/6 | 4/6 | 5.2/7.2 |
It is an ideal equipment for liquid heating and stirring used in modern oil, chemical, medical and sanitary field, environment protection, biochemistry, experimental analysis and education & research development field.
Magnetic Stirring Heating Mantle Features:
High temperature resistance fiberglass is used as insulation materials, resistance wire of nickel chrome material is sealed in the insulation layer and weaved into semisphere internal heater.
Adopts stepless speed that is easy to operate and it can make stable precise stirring to liquid solution within a wider speed scope, especially in the experiments of samples with small volume.
Way of heating:
Temperature- control (Electronic thermo regulation)
LED controller
