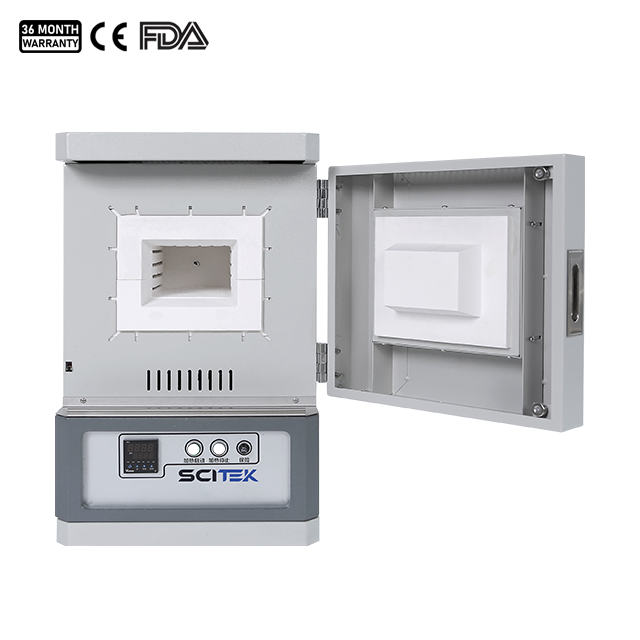

Ceramic Fiber Muffle Furnace Features:

1. Large screen digital controller

2. Inner tank mixed wet vacuum forming (high sealing degree)

3. Ultra-warm and leakage double protection, safety function guarantee

4. Unique air insulation design, so that there is no heat sensation around the furnace bod

Ceramic Fiber Muffle Furnace Specification:

Ceramic Fiber Muffle Furnace Feature:

Energy-saving Design

1. The ceramic fiber muffle furnace is made of high-quality fiber cotton and inorganic adhesives and other materials mixed by wet vacuum forming. It integrates fire resistance and heat preservation. The furnace body is light, less heat storage, and the heating temperature uniformity on three sides is high.

2. Lightweight and high temperature resistant. Resistant to rapid cooling and heating. No cracks, no crystallization, no slag, no need to worry about contaminating the fired products

3. Fast heating speed, high working efficiency, and overall energy saving of more than 50%.

4. Unique air insulation design to minimize the surface temperature of the furnace body.

Intelligent LCD Screen Control

1. The latest AI artificial intelligence PID adjustment algorithm, with high accuracy, good temperature control, self-tuning, and no overshoot.

2. 30 programmable temperature control curves to meet customers' complex heat treatment processes. You can also pre-set 30-segment heating curves, divided into 5 groups for easy call, and quickly switch to meet different process requirements (optional).

3. Display accuracy: 0.2% of FS, slope value compensation offset, more accurate than single fixed value compensation.

Sheet metal processing

1. The shell is made of high-quality cold-rolled steel, processed by advanced CNC machine tools and laser technology, with high precision.

2. The internal structure adopts advanced air insulation technology, combined with thermal induction technology, to quickly cool the furnace surface.

3. The electric furnace shell adopts a patented double-layer forced air cooling structure, so that the external temperature of the furnace shell is close to room temperature when the electric furnace is at the highest temperature, and the maximum is not higher than 50 degrees Celsius.

Humanized design

1. High brightness LCD screen display is used to improve the recognition clarity.

2. Multiple windows are displayed in real time, and the program running status is clear at a glance

3. Optional computer remote control, touch screen operation, and optional wireless controller can be used to separate the host and control. And record and store in the form of curves and data tables, real-time temperature curves, historical temperature curves and alarm record parameters, and can export and print historical data with a USB flash drive.

Security function

1. Automatic power off function when the furnace door is opened.

2. Over-temperature protection function, when the temperature exceeds the allowable set value, the power will be automatically cut off and the alarm will be given.

3. Leakage protection function, when the furnace leaks electricity, the power will be automatically cut off. The above functions ensure the safety of use.

Temperature Feature

1200℃ box-type high temperature electric furnace adopts imported high temperature material furnace wire and fiber refractory material semi-inlaid process design, which greatly improves the service life of heating elements.

Ceramic Fiber Muffle Furnace Applications:

A box-type high-temperature ceramic fiber muffle furnace that uses electric current to heat the electric heating elements or heating media on both sides of the furnace, thereby heating the workpiece or material. Box-type resistance furnaces are used in the machinery industry for heating metals before forging, heating metal heat treatment, brazing, powder metallurgy sintering, glass ceramic baking and annealing, melting low-melting-point metals, and drying sand molds and paint films.
