| Name | Biological Microscope MSC-B203T |
| Code | scitek-0946 |
| Type | Standard |
| Brand | Scitek |
| Category | Microscopes |
| subcategory | Biological Microscope |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Viewing Head : Siedentopf trinocular head/seidentopf trinocular head, inclined at 30°, interpupillary 50-75mm
Eyepiece : WF10×22mm Wide Field Eyepiece WF10×22mm; xWF16×; xWF20×
Objective : Infinite Plan Achromatic Objective 4×, 10×, x20×, 40×, 100× / xInfinite Plan Phase Objective Ph10x, 20x, 40x, 100x
The MSC-B203T biological microscope is ideally suited for semiconductor inspection, especially for industrial quality control and technical education.
Biological Microscope Specifications:
| Model | MSC-B203T |
| Optical System | Infinite optical system |
| Viewing Head | Siedentopf trinocular head/seidentopf trinocular head, inclined at 30°, interpupillary 50-75mm |
| Eyepiece | WF10×22mm wide field eyepiece WF10×22mm; xWF16×; xWF20× |
| Objective | Infinite plan achromatic objective: 4×, 10×, x20×, 40×, 100× |
| xInfinite plan phase objective: Ph10x, 20x, 40x, 100x | |
| Nosepiece | Quadruple nosepiece/xQuintuple nosepiece |
| Stage | Double layers mechanical stage 210x150mm/ 75x50mm |
| Condense | Abbe condenser N.A. 1.25 with iris diaphragm & filter |
| Focusing System | Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 24mm |
| Illumination | LED illumination, brightness adjustable |
| Optional | Phase contrast kit; dark field attachment |
| 1.3M-20.M pixel microscope camera/win10 Pad/digital display | |
Shipping Size (W×D×H)(mm) | 590x350x360 |
| G.W. (kg) | 9 |
Biological Microscope Features:
Biological microscope has an infinite optical system provides extreme clarity and viewing accuracy. The tilt of the trinocular lens ensures ergonomic viewing for long periods. The wide range of eyepieces within provides magnification versatility to meet the requirements of different specimens.
Biological microscope has an infinite plan achromatic objective lens to provide excellent optical performance for various microscope applications.
The double mechanical stage provides ample space for sample manipulation and precise positioning.
An Abbe spotting scope (N.A. 1.25), iris diaphragm, and filters ensure optimal illumination control and contrast adjustment.
The coaxial coarse and fine adjustment system has a fine index of 0.002 mm for precise focusing.
In terms of illumination, the biological microscope features adjustable LED illumination that provides consistent and customizable illumination.
Details of Biological Microscope:

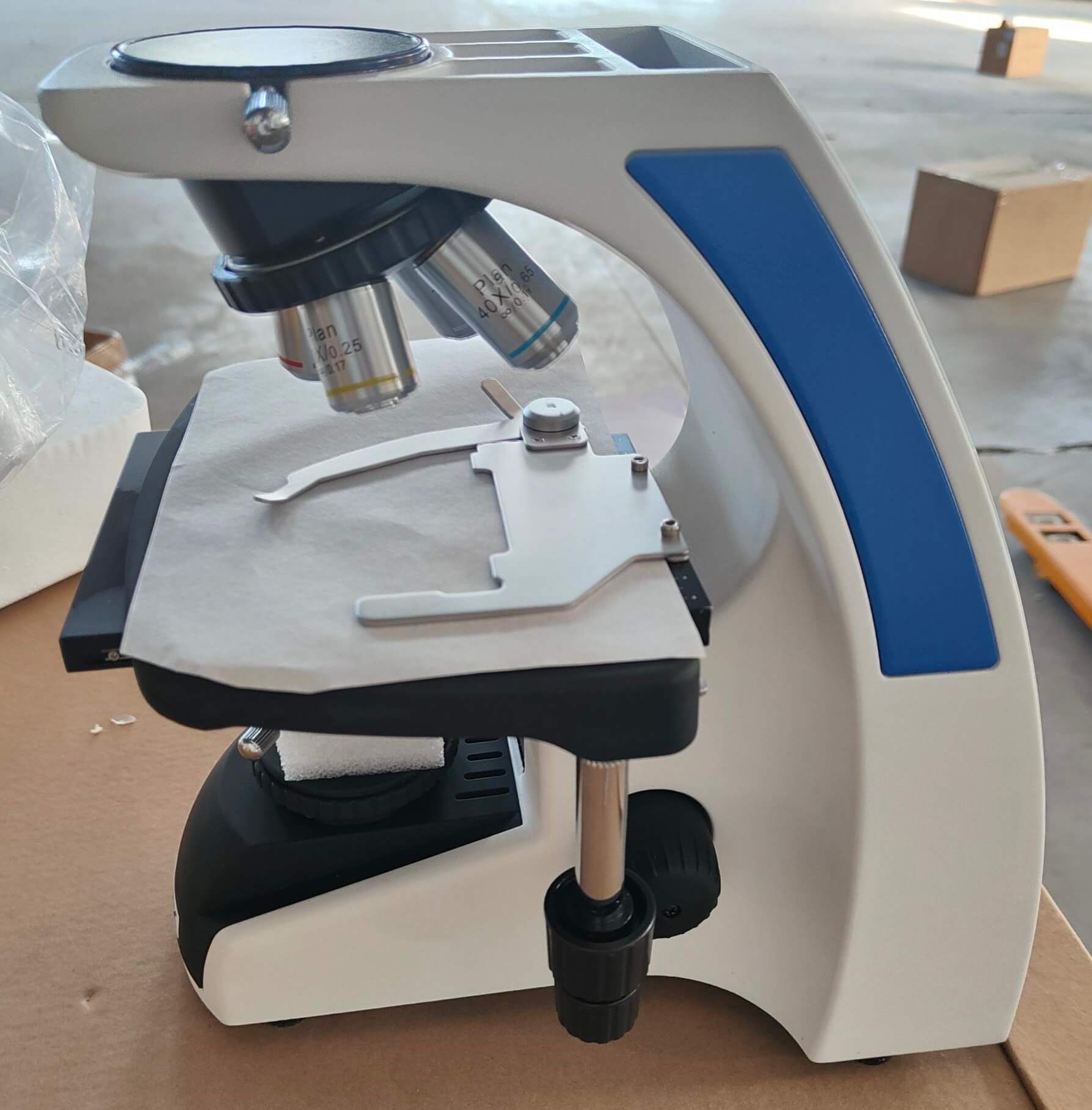

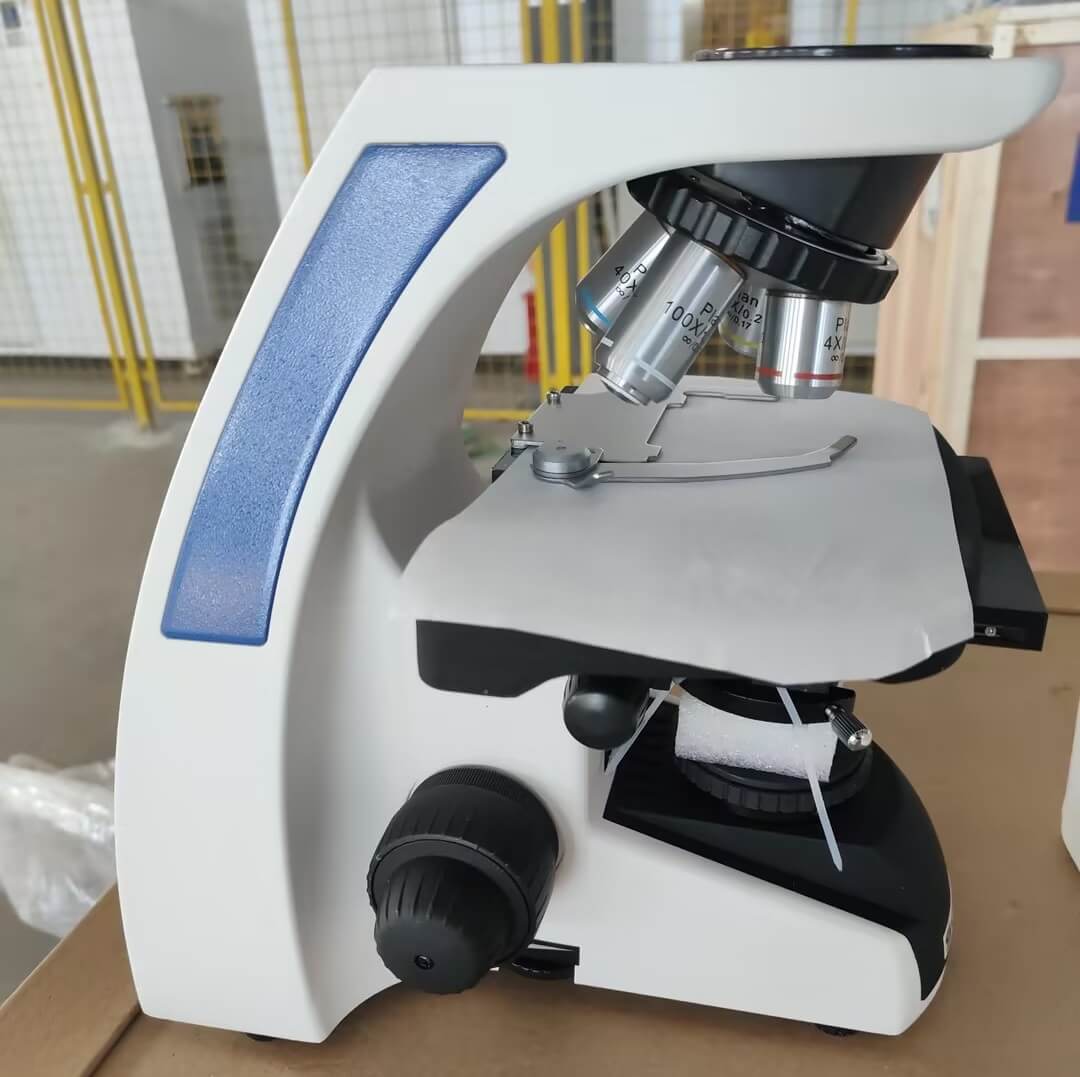

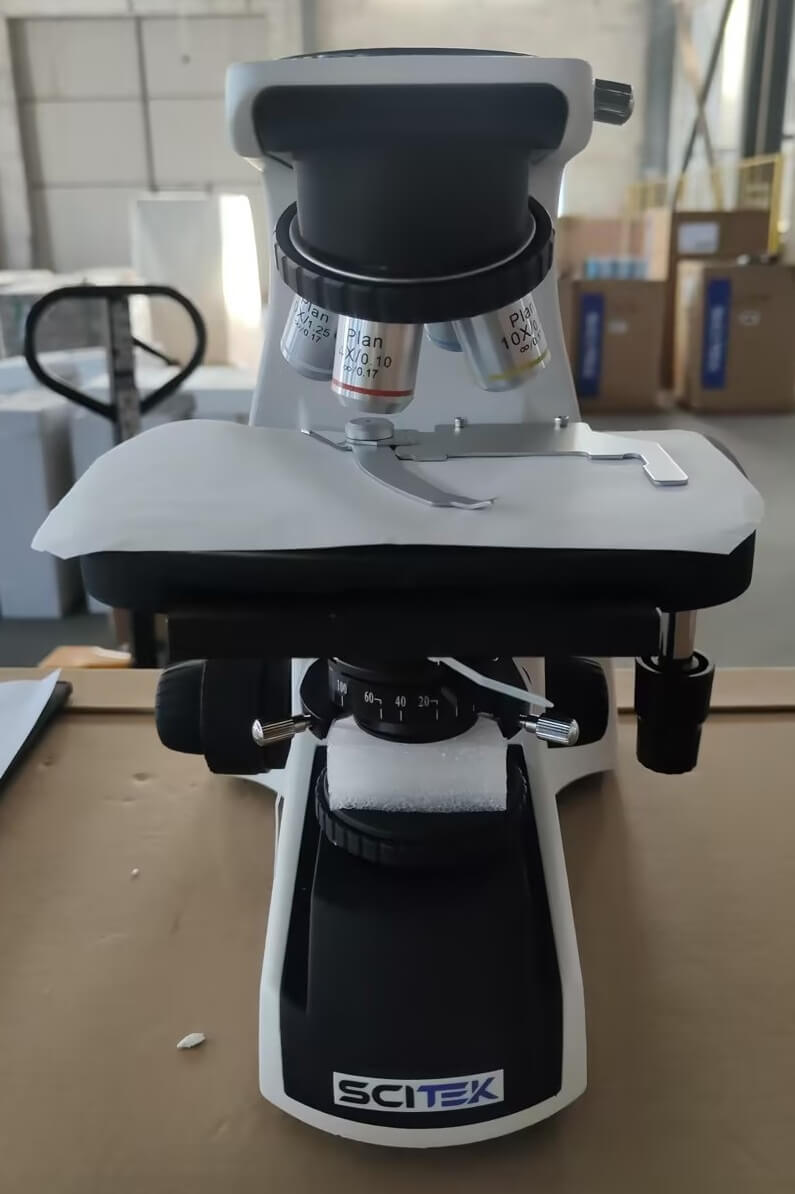

MSC-B203T Smooth contours and tactile controls for a great user experience.
Rugged construction and stable base ensure accurate and stable observation.

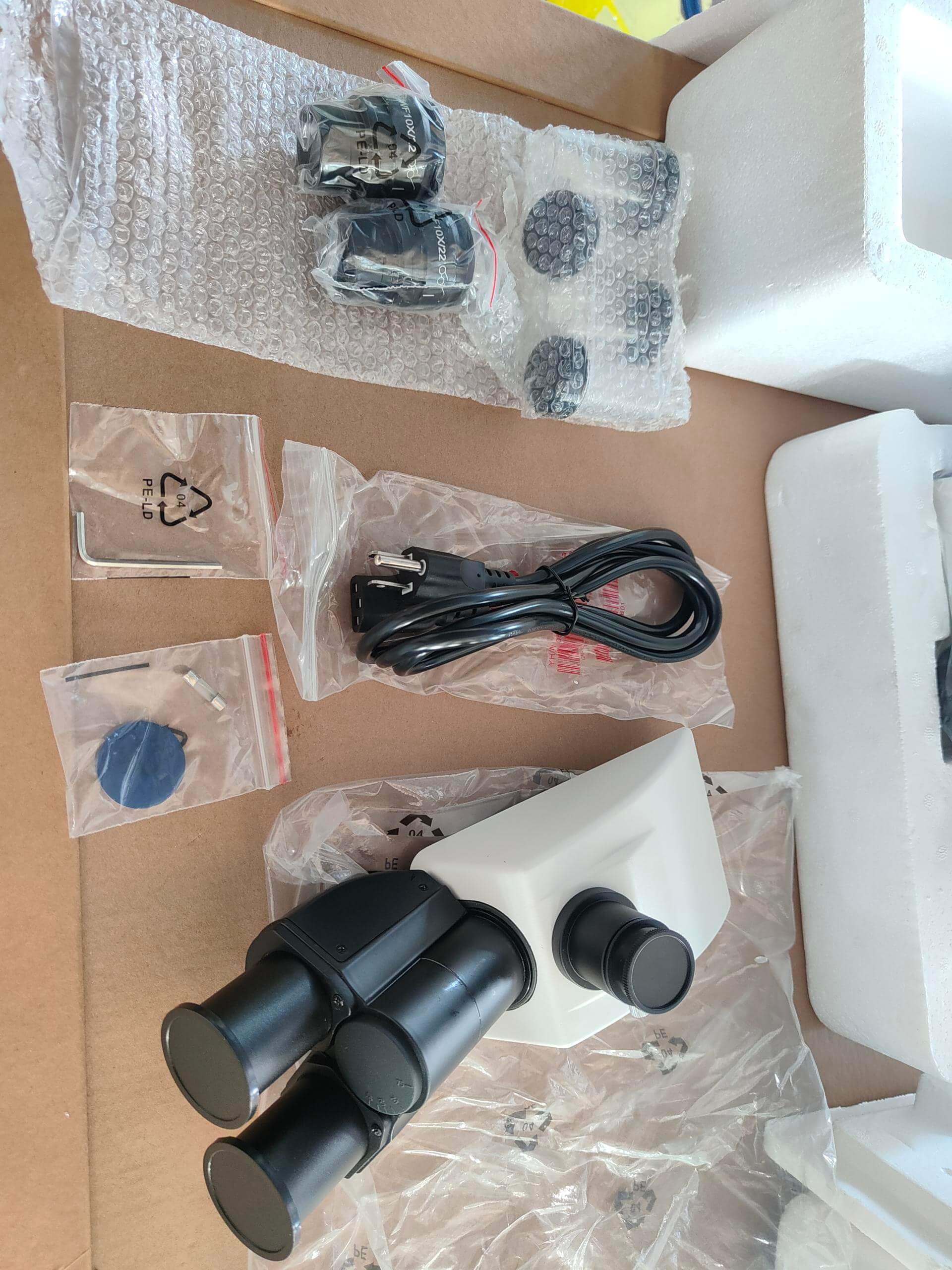

The eyepieces and cables, as well as other accessories, are fully packaged for easy assembly and immediate use.

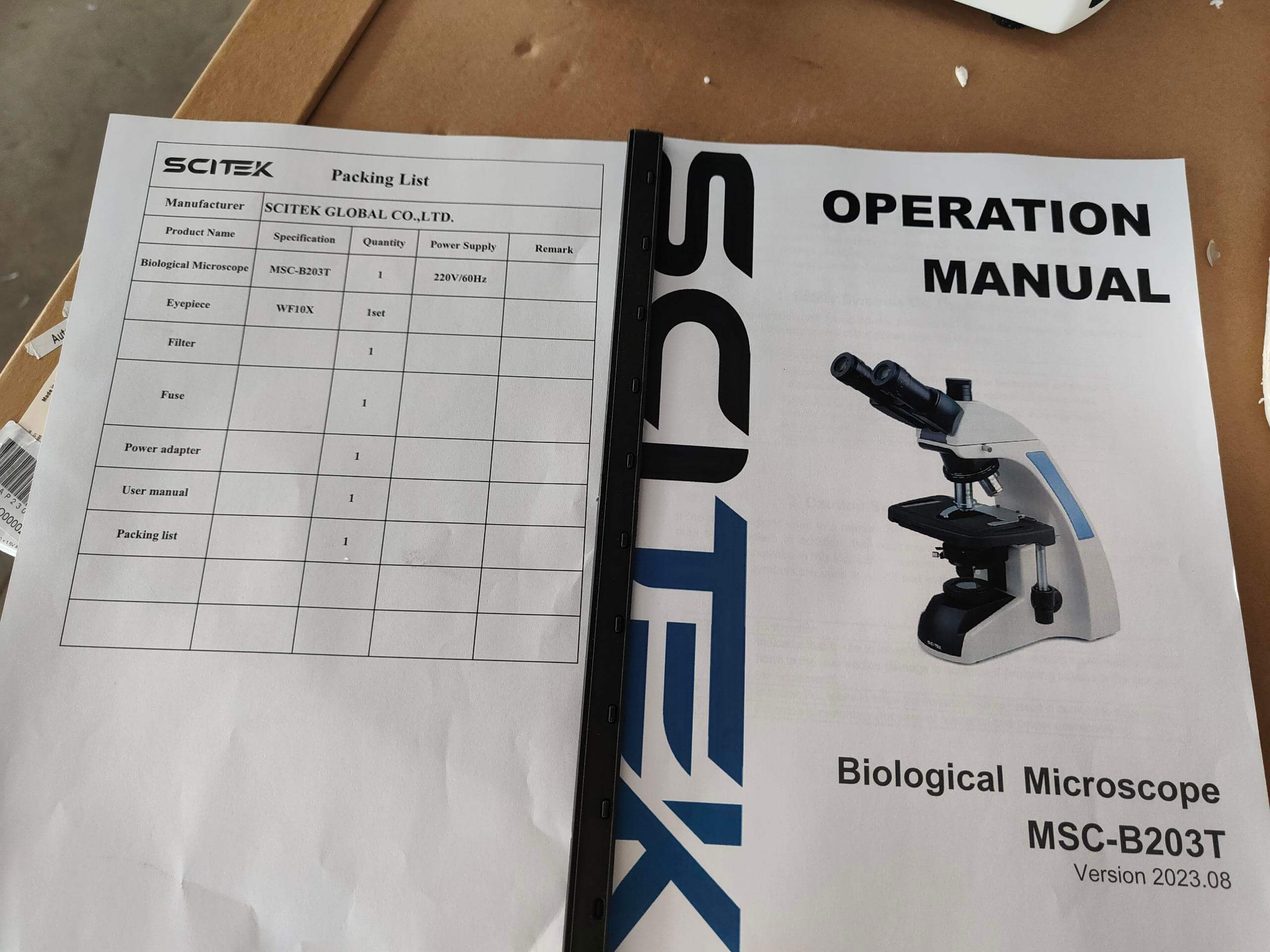

The user manual and other components, with detailed instructions, facilitate quick setup and operation.
