| Name | Automatical Dissolution Tester |
| Code | scitek-1059 |
| Type | Standard |
| Brand | Scitek |
| Category | Pharmaceutical Equipment |
| subcategory | Dissolution Tester |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Speed Range : 20~200 rpm; 20~250 rpm
Amplitude of Swing of Stirring Paddle ≤0.3mm
Rotating Speed Resolution : 1 time/min
Temperature Range : Ambient Temperature~+45.0℃
Temperature Resolution : 0.1ºC
Dissolution Tester Specifications:
| Model | DT-XII | DT-STIII | DT-STVI | DT-STVIII |
|---|---|---|---|---|
| Amplitude of Swing of Stirring Paddle | ≤0.3mm | |||
| Amplitude of Swing of Rotation Basket | ≤0.8mm | |||
| Deviation of Rotating Rod and Axle of Dissolution Cup | ≤1mm | |||
| Speed Adjustable Range | 20-200 rpm | 20-250 rpm | ||
| Rotating Speed Resolution | 1 time/min | |||
| Water Bath Temperature Adjustment Range | RT~45ºC | |||
| Temperature Resolution | 0.1ºC | |||
| Temperature Control Accuracy | ≤±0.3ºC | |||
| Number of Sampling Periods | 9 different sampling periods can be preset. | |||
| Time of Sampling Period | 1-999min optional for each period, 9 sampling periods can be counted down by sections. | |||
| Timing Error | ±0.5min | |||
| Pharmacopoeia Parameter Calling | The instrument saves 300 dissolution test parameters in Chinese Pharmacopoeia, which can be called randomly. | |||
| Standard Configuration | 12 paddles and 12cups | 3 paddles and 3 cups | 6 paddles and 6 cups | 8 paddles and 8 cups (Small cup accessories can be optional.) |
| Electrical Heating Power | 1100W | 500W | 1100W | 1100W |
| Note | / | Large screen liquid crystal display and intelligent menu operation. The head can lift and descend automatically and attaches overturn function (a model whose control is very convenient). Electronic sensor can monitor the temperatures of various point of water bath case. | ||
| Shipping Size (W×D×H)(mm) | 1130x730x650 | 730x490x630 | 1130x530x650 | 850x640x670 |
| G.W. (kg) | 130 | 60 | 85 | 90 |
Dissolution Tester Features:
The dissolution tester determines the speed and extent of drug dissolution in tablets, capsules and other solid preparations in a defined solvent.

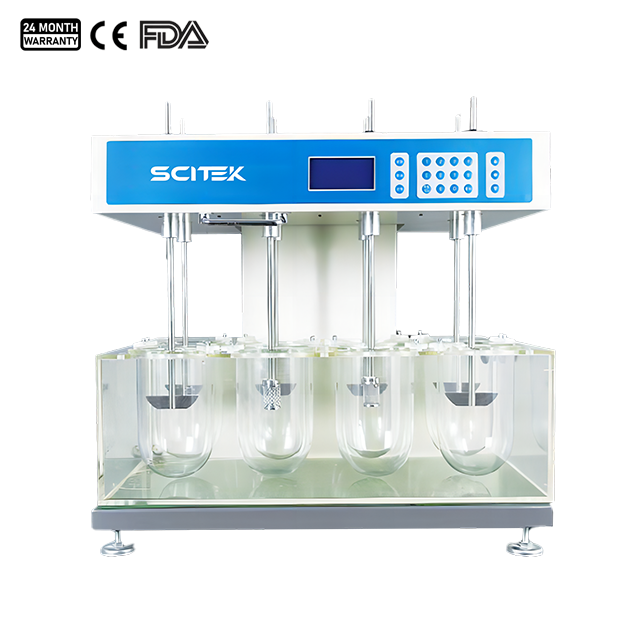

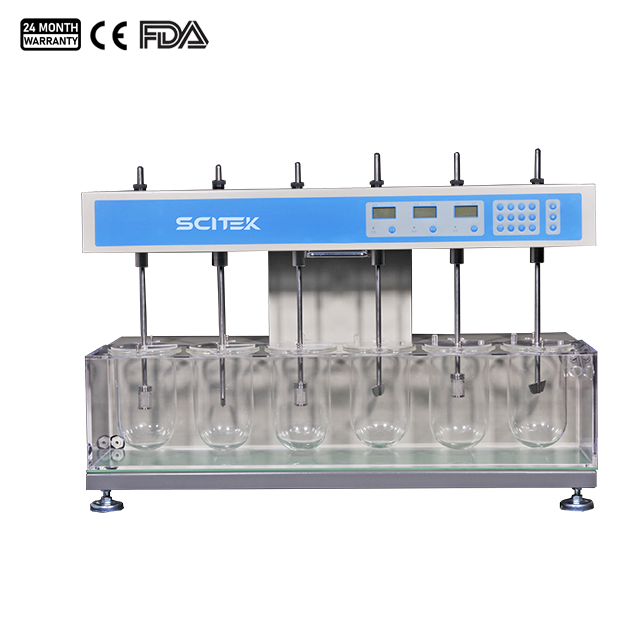

DT-STVI and DT-STVIII dissolution testers adopt a high-resolution touch screen and a real-time display of running time, speed, waiting times, etc.
Intelligent temperature correction function eliminates measurement errors and ensures the user can reliably complete the temperature correction through interactive operation.
Supports USB data transfer and direct printing of test results
Provides timer shutdown, timer automatic preheating function, but also has a self-test and automatic protection function, which can give a variety of fault alarm prompts and secondary overheating protection.
No gap design between dissolving cup and water tank to ensure automatic centring and positioning, eliminating systematic errors.
Dissolving cover prevents evaporation of dissolving medium
Motorized lifting of the head section, stable and flexible operation
