Gelatin Gel Strength Tester (scitek-1058) Products
| Name | Gelatin Gel Strength Tester |
| Code | scitek-1058 |
| Type | Standard |
| Brand | Scitek |
| Category | Pharmaceutical Equipment |
| subcategory | Gelatin Gel Strength Tester |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Product details for Invoice
Model : GST-II; GST-III
Test Range : 5-1000 Bloomg
Test Precision : ±0.3%
Resolution : 1g
Repeated Measurement Error : ±1 Bloomg
Sampling Depth : 1-60mm
Test Range : 5-1000 Bloomg
Test Precision : ±0.3%
Resolution : 1g
Repeated Measurement Error : ±1 Bloomg
Sampling Depth : 1-60mm
Product Details
Gelatin Gel Strength Tester Specifications:
| Model | GST-II | GST-III |
|---|---|---|
| Test Range | 5-1000 Bloomg | |
| Test Precision | ±0.3% | |
| Resolution | 1g | |
| Repeated Measurement Error | ±1 Bloomg | |
| Sampling Depth | 1-60mm | |
| Stroke Error | ≤±0.1mm | |
| Stroke Error of High-speed Measurement | ≤±0.1mm | |
| Measured Value | Take bioom gas the unit | |
| Measured Diameter of Cylinder | 12.700±0.010mm | |
| Standard Gel Strength Bottle | Volume=150ml; inner diameter=59mm; height=85mm | |
Printer | / | Embedded micro printer, standard serial printing, convenient storage of experimental data |
| Power Supply | AC220/110V; 50/60Hz | |
| Total Power | 60W | |
| Size(W×D×H)(mm) | 260x260x450 | |
| Shipping Size(W×D×H)(mm) | 380x380x550 | |
| N.W./G.W. (kg) | 10/18 | |
| Thermostatic Water Tank and Refrigerating Machine Technical Indexes: | ||
| Water Bath Temperature Control Range | 5~60℃ | |
| Water Bath Temperature Control Precision | ±0.1℃ | |
| Refrigerating Time | 30℃→10℃＜40min | |
| Power Supply | AC220V, 50Hz | |
| Thermostatic Water Tank HW-III | ||
| Size(W×D×H)(mm) | 580x440x220 | |
| Shipping Size(W×D×H)(mm) | 710x560x380 | |
| N.W./G.W. (kg) | 20/30 | |
| Refrigerating Machine ZL-III | ||
| Size(W×D×H)(mm) | 480x380x290 | |
| Shipping Size(W×D×H)(mm) | 600x500x410 | |
| N.W./G.W. (kg) | 15/23 | |
Gelatin Gel Strength Tester Features:
Gelatin gel strength tester is a device for measuring gelatinous substances' gel strength or gelatin strength.
High-definition display interface with easy-to-use controls so operators can access them easily
Digital display provides clear and accurate readings
Parameters such as test speed, temperature and other relevant settings can be arbitrarily adjusted to suit different testing requirements.
Can be used to test a wide range of gelling substances, ensuring broad applicability in different industries
Data storage enables users to store and retrieve test results for analysis or documentation.
A number of safety features protect the operator during use.

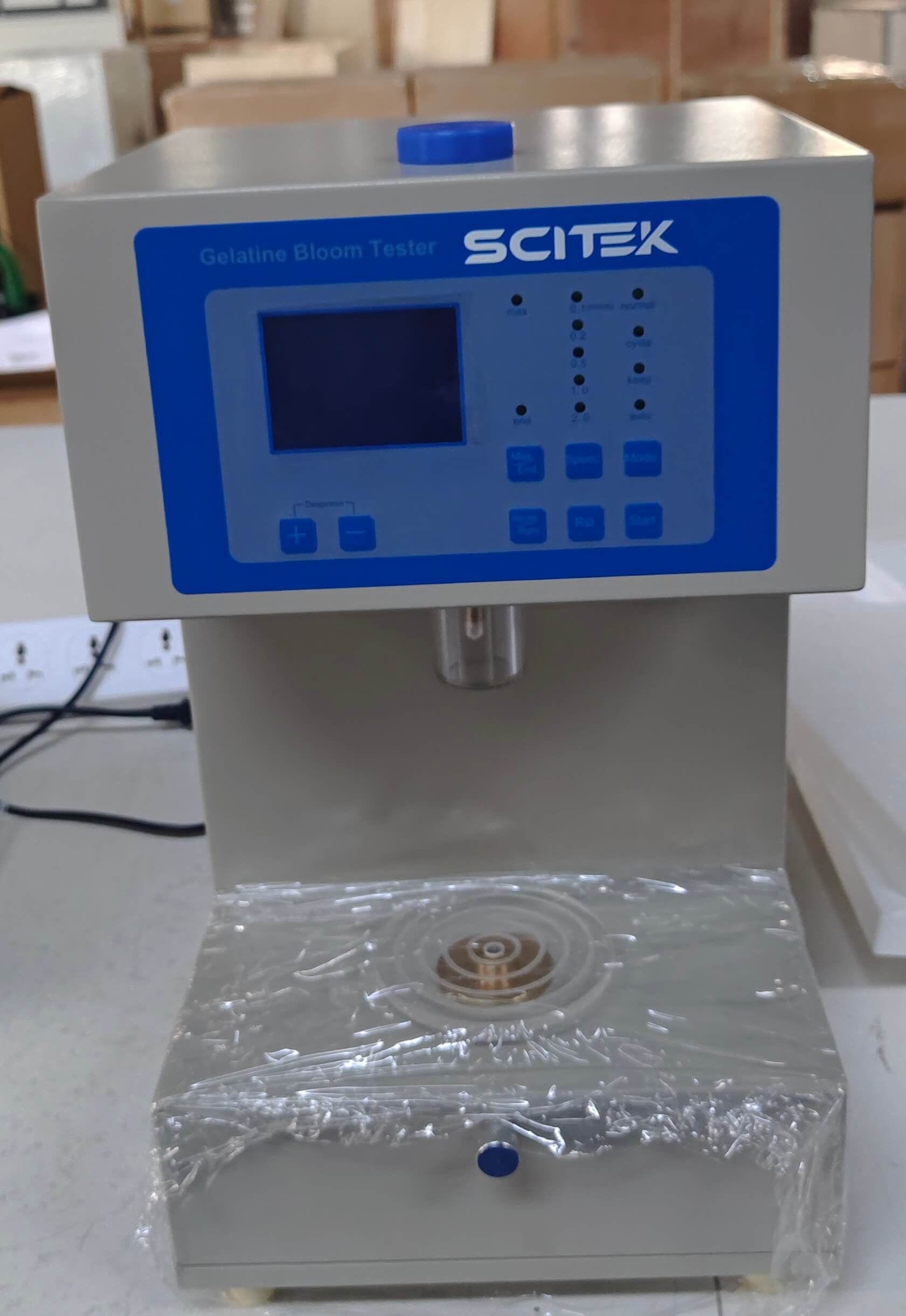

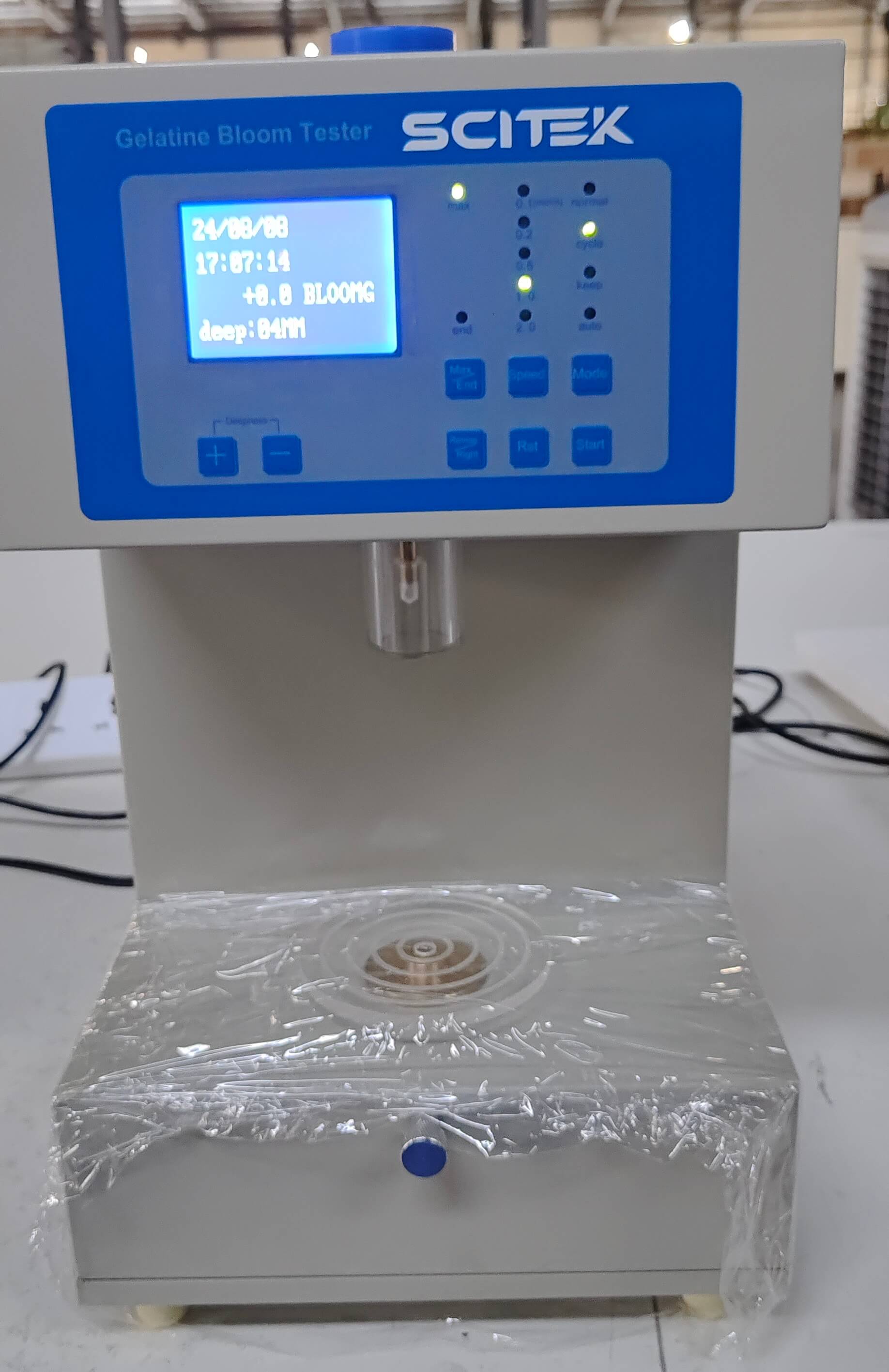

Details of Gelatin Gel Strength Tester:
