| Name | Affordable Visible Spectrophotometer |
| Code | scitek-0420 |
| Type | Standard |
| Brand | Scitek |
| Category | Spectrophotometer and Colorimeter |
| subcategory | Visible Spectrophotometer |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Wavelength Range : 340-950nm
Wavelength Accuracy : ±2.5nm
Photometric Accuracy : ±2%(T) (tube), ±0.5%(T) (cuvette)
Size(W×D×H)(mm) : 450×420×280

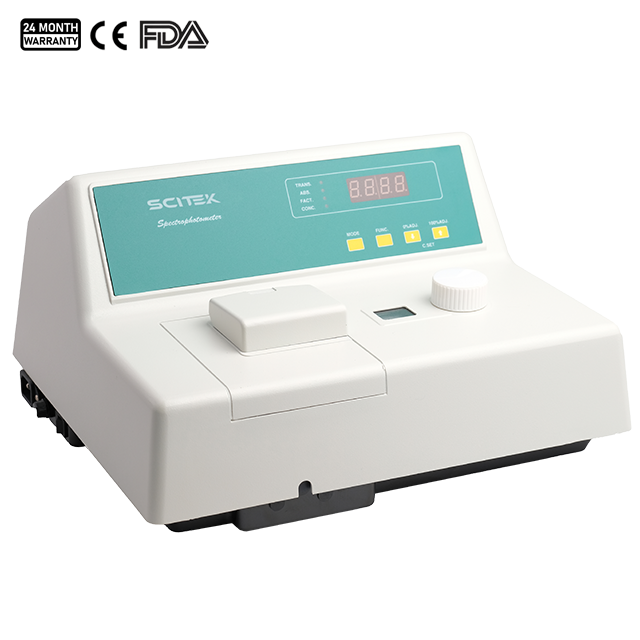

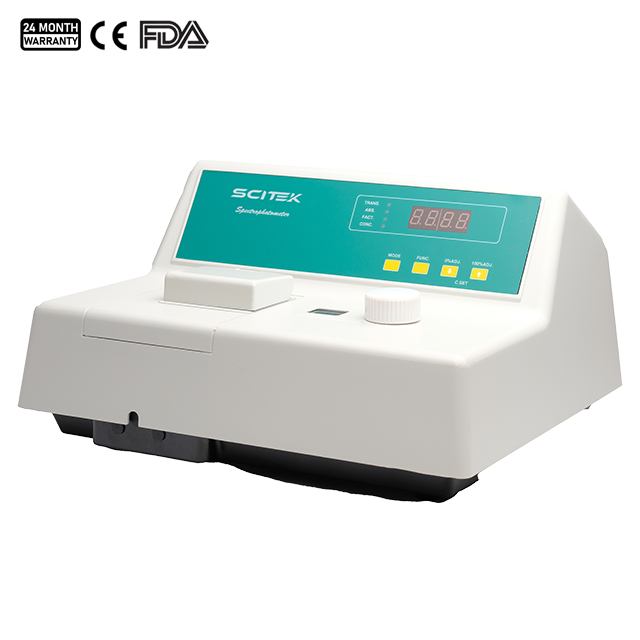

The spectral lab visible spectrophotometer is a low-cost product designed for teaching and general analytical purposes.
Visible Spectrophotometer Specifications:
| Model | SP-VS23 |
|---|---|
| Standard | Enterprise Standard, Q/SEEK3 |
| Display Mode | 4 digits LED |
| Wavelength Range | 340-950nm |
| Wavelength Accuracy | ±2.5nm |
| Wavelength Repeatability | ≤1nm |
| Spectral Slit Width | 12nm |
| Photometry Accuracy | ±2%(T) (tube), ±0.5%(T) (cuvette) |
| Photometry Repeatability | 0.3%τ |
| Voltage Requirements | 220V±10% or 110V±10% |
| Photometry Range | 0.0～199.9%(T), -0.3～2.999 A, 1～9999 F, 0～9999 C |
| Interface | RS232 serial & parallel interface |
| Serial printer, Any printer (for software) | |
| Complete Set | A set:SP-VS23 |
| B set: SP-VS23+Data processing software package | |
| Size(W×D×H)(mm) | 450×420×280 |
| Shipping Size(W×D×H)(mm) | 460x430x320 |
| N.W./G.W. (kg) | 6/10 |
Visible Spectrophotometer Features:
It is low-priced, highly reliable, and easy to operate. It is very suitable for education, environmental protection and other fields.
The visible spectrophotometer has a variable wavelength and four scales: Absorbance, Concentration, Transmittance and Coefficient.
Use cuvettes or universal test tubes to make measurements directly.
A microcomputer controls the instrument and is easy to operate.
12nm spectral slit width provides the sensitivity required for almost any application.
One solid-state silicon detector covers the entire wavelength range, eliminating the need to change detectors between analyses.
Instrument units, especially the pre-conditioned light source unit, are easy to replace and maintain.
Cartridge replacement is freely adjustable.
Optical system with grating and toroidal mirrors.
