| Name | WXG-4 Manual Polarimeter |
| Code | bante-0122 |
| Type | Standard |
| Brand | Bante |
| Category | Polarimeters |
| subcategory | Polarimeters |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |

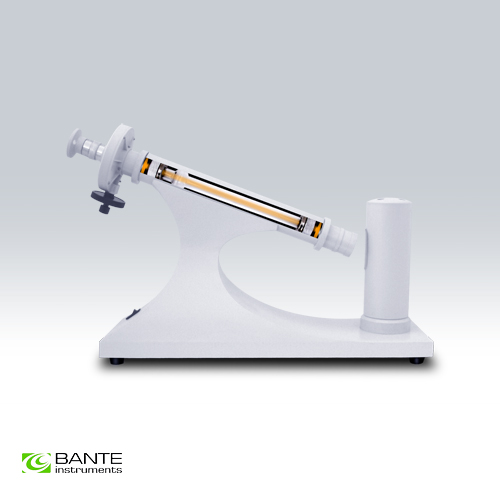

WXG-4 Manual Polarimeter
Easy-to-use manual polarimeter with a measurement range of -180° to +180° and is suitable for measuring the optical rotation of optically active substances, accuracy: 0.05°.
Features:
WXG-4 polarimeter is installed with a 589nm sodium lamp. Switch on the power, the polarized

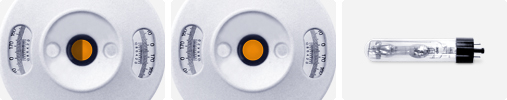

light radiates to the polarizer filter. The user is able to observe the distinct visual fields through
eyepiece. Place the test tube into the measuring chamber and rotate the vernier knob until the
visual fields appear the equal brightness. Recording the vernier scale. Measurement is done.
Applications:
• Education
• Food and sugar industries
Specification
Model | WXG-4 | |
Range | ±180° | |
Scale Value | 1° | |
Vernier | 0.05° | |
Magnifier | 3X | |
Light Source | Sodium lamp | |
Wavelength | 589.4 nm | |
Tube Length | 50 / 100 / 200 mm | |
Power Supply | AC 220V / 50Hz | |
Dimensions | 500 × 135 × 330 mm | |
Weight | 5 kg |
Ordering Info
Ordering Code | Polarimeter Includes |
WXG-4 | Polarimeter tubes 100 and 200 mm |
| Sodium lamp (220V) | |
Sealing rings |
Optional Accessories
| Items | Description |

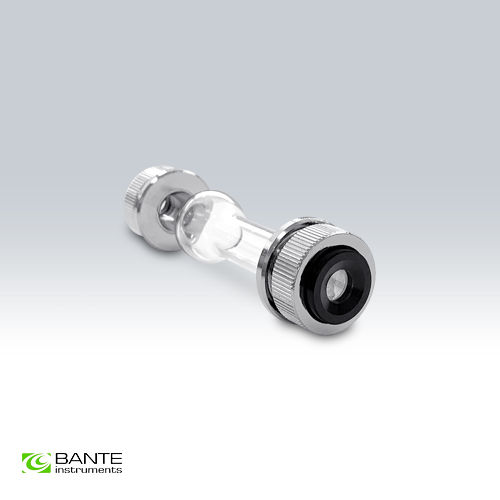

| Polarimeter Tubes | For filling the sample solution (length 100/200mm) |
| Sodium Lamp | Wavelength 589.4 nm |
Packaging
Ordering Code | Dimensions and Weights |
WXG-4 | 60 × 20 × 40 cm, 5 kg |
