Washer Disinfector (Lab Automatic Glassware Washer) BKX-CQS-120 (biobase-0218) Products

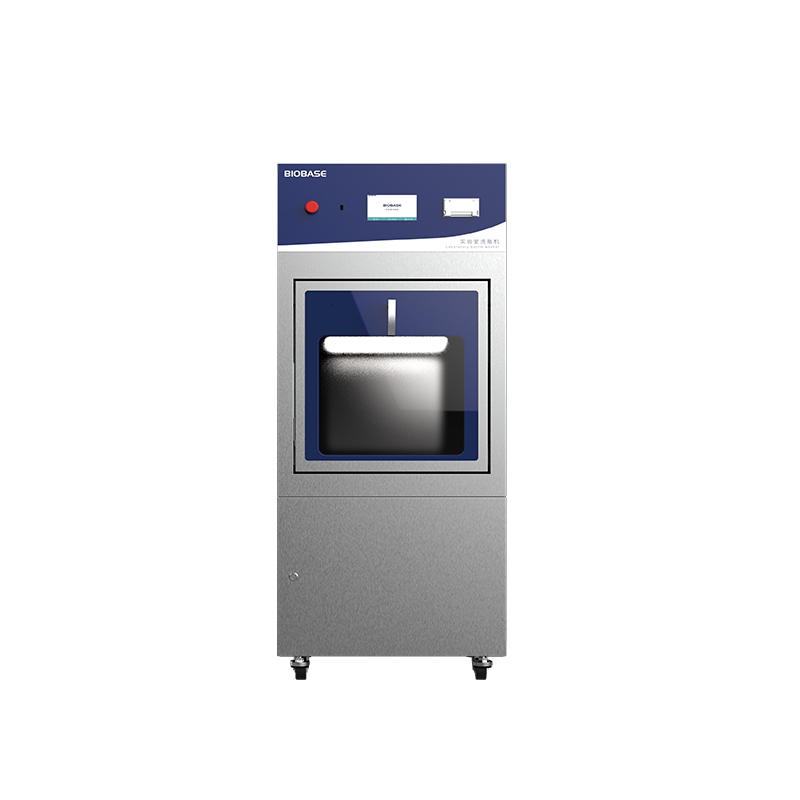

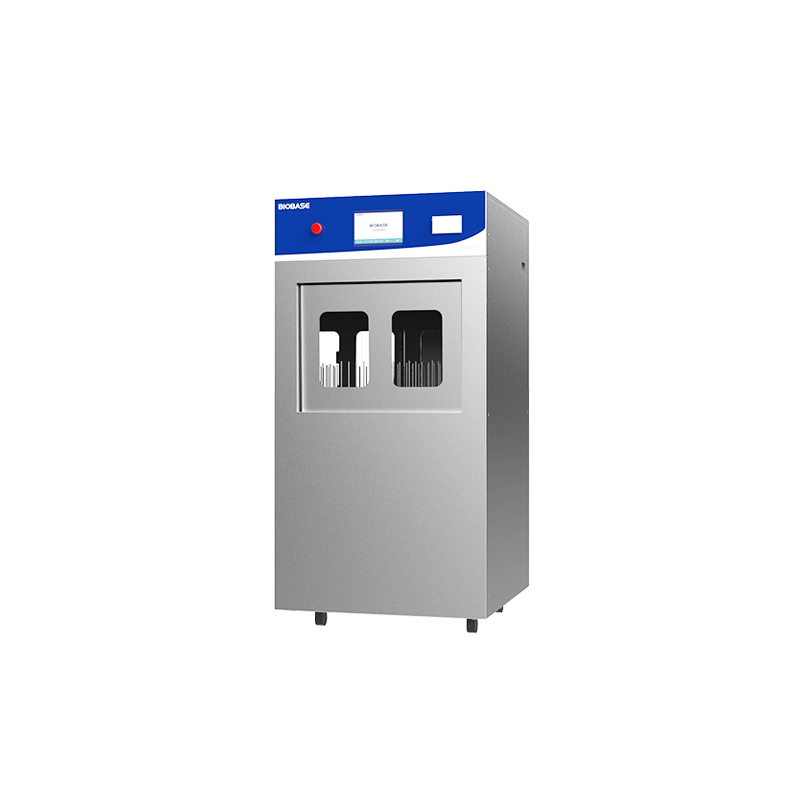

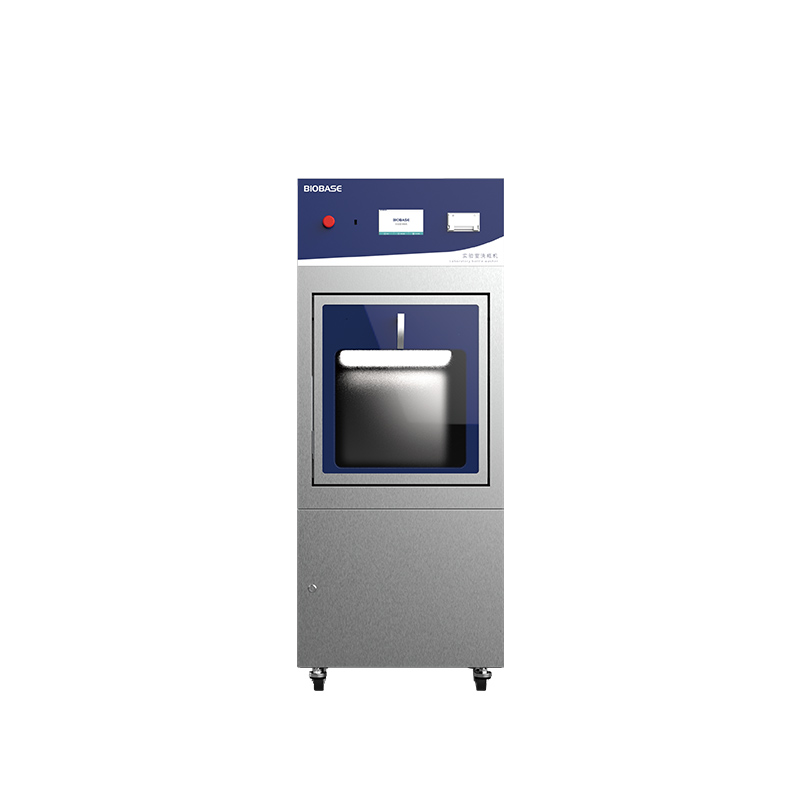

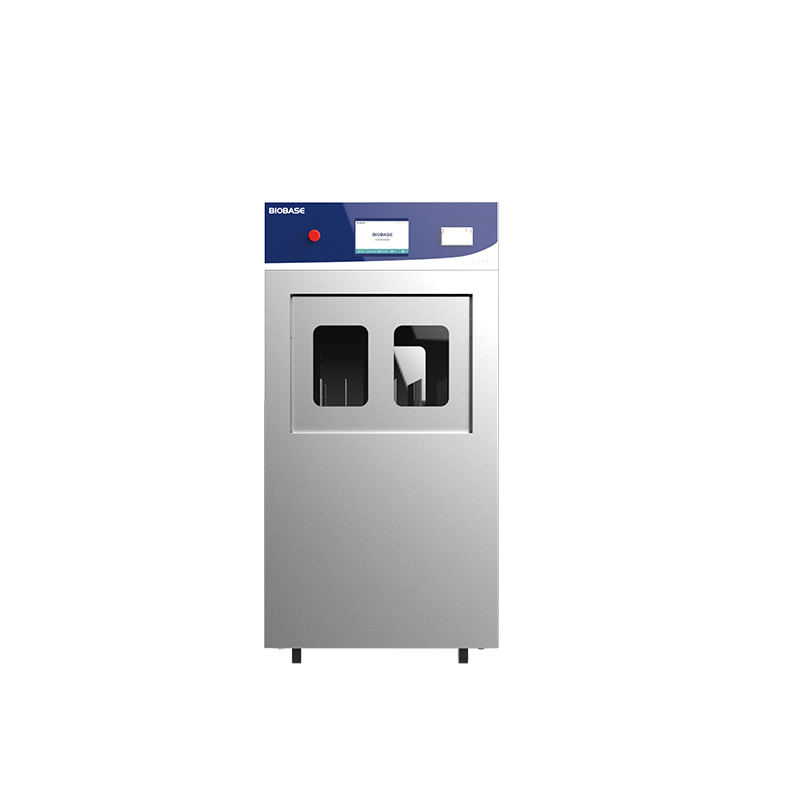

Name Washer Disinfector (Lab Automatic Glassware Washer) BKX-CQS-120
Code biobase-0218
Type Standard
Brand Biobase
Category Disinfection And Sterilization Equipments
subcategory Washer Disinfector
Unit pcs (pcs)
In Stock Yes
Berminat hub kami: wa chat
Product details for Invoice
Application:
Washer Disinfector can thoroughly wash and dry items. It is suitable for cleaning and drying sample bottles, test tubes, beakers, pipettes, triangular flasks, volumetric flasks, etc. in various laboratories such as pharmaceutical companies, scientific research institutes, environmental protection, water systems, petrochemical systems, and power systems.
Product Details
Washer Disinfector (Lab Automatic Glassware Washer) BKX-CQS-120

Features:

1. High degree of cleanliness.

2. Adopt PLC microcomputer control technology. Standard printer and 7-inch color LCD touch screen.

3. Complete protection functions: The door cannot be opened during operation to ensure safe use; dual temperature protection of water temperature and air temperature; power failure protection function; water seal design of drainage pipeline to prevent reverse flow of sewage; installed with leak-proof detection, if liquid leakage is detected, The program is cancelled, the inlet valve is closed, and the drain pump is started.

4. Efficient drying: The in-situ drying system uses compressed hot air to enter the cleaning chamber and the interior of the utensils, which can thoroughly dry the utensils and the pipeline of the washing machine. Built-in HEPA high-efficiency filter to ensure the cleanliness of dry air. Synchronize the drying water circulation pipeline to avoid the wet pipeline contaminating the cleaning system.

Cleaning Procedure:

1. Standard procedure: Meet the general contaminant blood cleaning.

2. Quick cleaning program: Meet the cleaning of lightly polluted utensils.

3. Customized cleaning program: According to different cleaning needs, users can customize the combined cleaning program.

4. Drying program: Equipped with a high-performance drying system, which can quickly complete the drying and cleaning of various instruments.

5. Manual test procedure: Self-check the operation status of each component of the equipment.

Cleaning Racks:

 Washer Disinfector

Technical Parameters:

Model

BKX-CQS-120

BKX-CQZ-120

BKX-CQS-220

BKX-CQS-320

Volume

120L

120L

220L

320L

External Size(W*D*H)

980*740*870mm

890*800*1630mm

700*800*1850mm

700*800*2000mm

Internal Size(W*D*H)

600*630*460mm

600*630*460mm

600*610*750mm

600*610*920mm

Door

Manual

Automatic

Manual

Manual

Noise

<50dB

<50dB

<50dB

<50dB

Inlet Pressure

Tap Water: 0.3~0.8Mpa
Pure Water: 0~0.8Mpa

Tap Water: 0.3~0.8Mpa
Pure Water: 0~0.8Mpa

Tap Water: 0.3~0.8Mpa
Pure Water: 0~0.8Mpa

Tap Water: 0.3~0.8Mpa
Pure Water: 0~0.8Mpa

Standard Accessories

BKIR36, 1pc

Optional Accessories

BKIR60, BKIR11218, BKIR220, BKBR01, BKDR9075U

Overall Power
Consumption

6KW

6KW

9KW

9KW

Power Consumption-Water Heating

5KW

5KW

7KW

7KW

Power Consumption-Drying

3KW

3KW

4KW

4KW

Power Supply

AC220V, 50Hz

AC220V, 50Hz

AC220V, 50Hz

AC220V, 50Hz

Package Size(W*D*H)

1150*940*1060mm

1100*970*1900mm

850*950*2250mm

850*950*2250mm

Net Weight

190kg

260kg

290kg

310kg

Gross Weight

220kg

290kg

330kg

340kg
