Vertical Sterilization Autoclave BKQ-Z30I (biobase-0189) Products
Name Vertical Sterilization Autoclave BKQ-Z30I
Code biobase-0189
Type Standard
Brand Biobase
Category Disinfection And Sterilization Equipments
subcategory Vertical Autoclave
Unit pcs (pcs)
In Stock Yes
Berminat hub kami: wa chat
Product details for Invoice
Application Range:
Vertical Autoclave is mainly used in hospitals, laboratories, universities and other institutes where users need to sterilize temperature-resistance solid and liquid.
Product Details

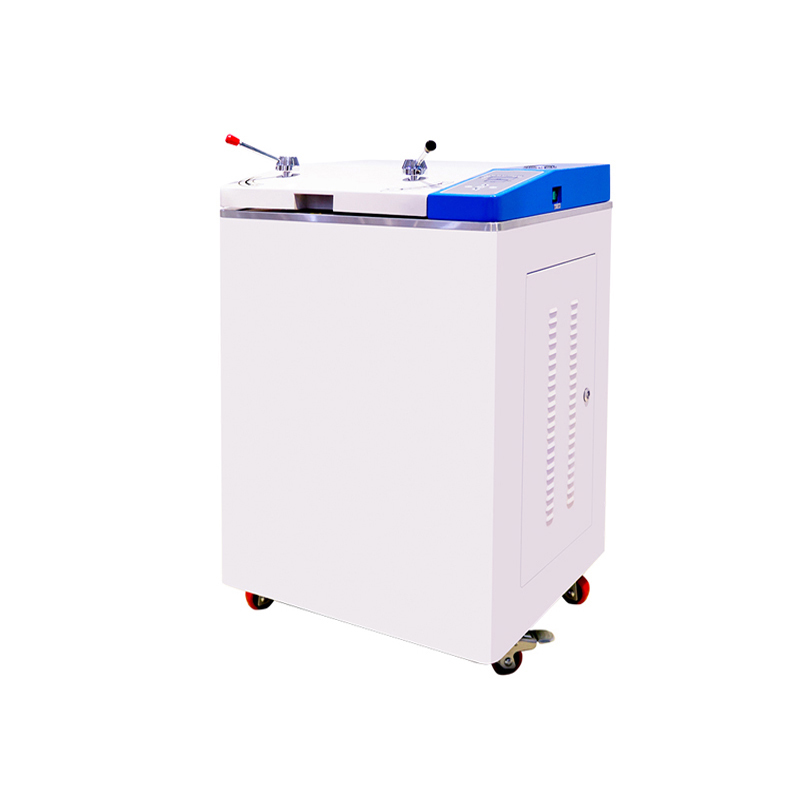

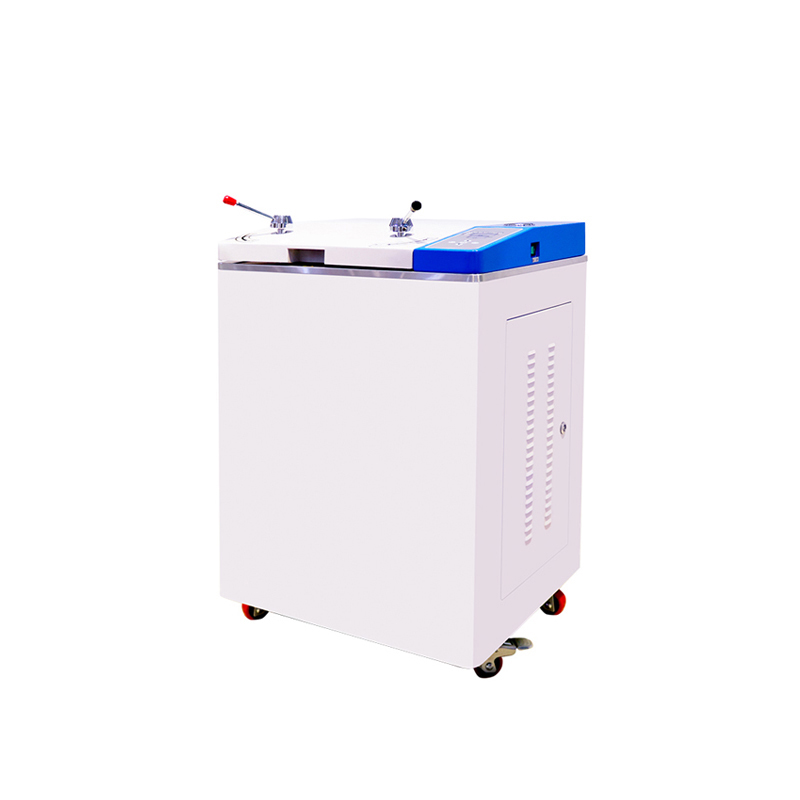

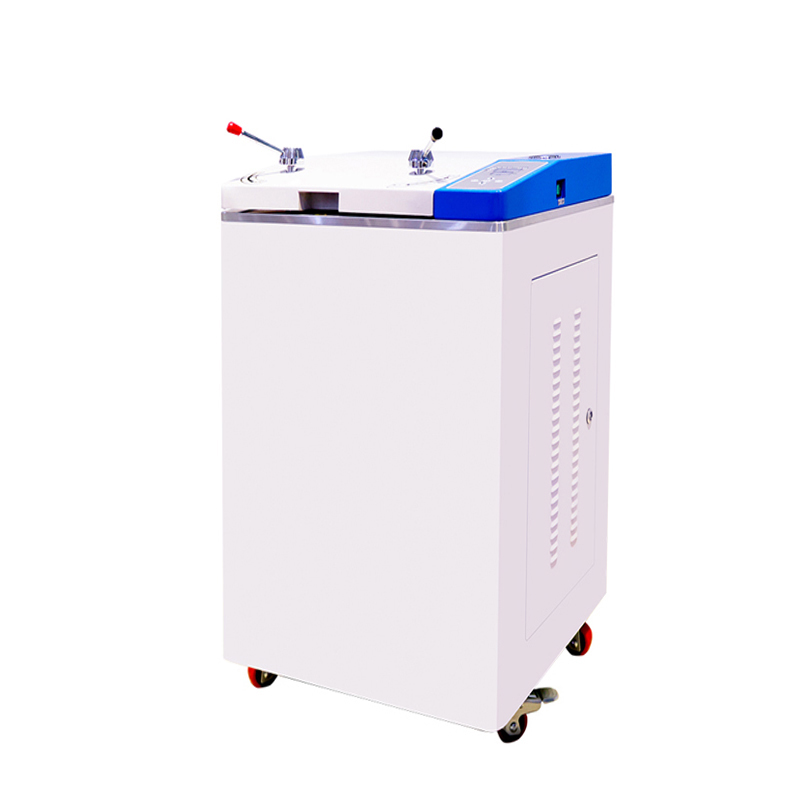

Vertical Sterilization Autoclave BKQ-Z30I

Safety Features:

1. Over pressure, safety valve can automatically open to release pressure.

2. Over temperature, the system will stop heating automatically and start alarm.

3. Anti dry-out function. If water level is too low, heating stops and error code displays on screen.

4. Over current, over voltage or electric leakage protection apparatus-air switch.


Technical Features:

1. Complete protection system.

2. Flip-open door structure with spring booster, easy to open.

3. LED displays inner temperature, time and error codes.

4. Automatic exhausting steam function.

5. Reliable mechanical safety interlock feature.

6. External material: Cold rolled steel with anti-bacteria powder coating.

7. Fixed sterilization programs for dressings, unwrapped and wrapped equipment, rubber, and liquid.

8. Door cover is wrapped completely, to prevent scald effectively.

9. Radial self-expanding silicone rubber seals with high effect and long using life.

10. Optional printer for recording sterilization data.

11. Optional stainless steel bucket.


Technical Parameters:

Model

BKQ-Z30I

BKQ-Z50I

BKQ-Z75I

BKQ-Z100I

Capacity

30L

50L

75L

100L

Chamber Size(mm)

φ385*412

φ385*515

φ385*715

φ385*915

Basket

φ365*265mm, 1pc

φ365*360mm, 1pcφ365*265mm, 2pcsφ365*360mm, 2pcs

Chamber Material

S30408

Designed Pressure

0.28MPa

Rated Working Pressure

0.23MPa

Max Temperature

150℃

Working Temp Range

105~136℃

Temp. Display Accuracy

0.1℃

Timing Range

0~999min

Dynamic Pulse Exhaust Time

0~9 times

Water Requirement

Distilled water or demineralized water

Standard Accessories

SS basket*1pc, SS tray*1pc

SS basket*2pcs, SS tray*1pc

Consumption

4KW

Power Supply

AC110/220V±10%, 50/60Hz

External Size(W*D*H)mm

645*610*710

645*610*810

645*610*945

645*610*1150

Packing Size(W*D*H)mm

750*745*950

750*745*1100

750*745*1240

750*745*1450

Gross Weight(kg)

100

103

114

122

Note: It is applicable to the altitude below 3,000m
