| Name | Vertical Electrophoresis Tank ET-V02 |
| Code | scitek-0940 |
| Type | Standard |
| Brand | Scitek |
| Category | Electrophoresis |
| subcategory | Electrophoresis Tank |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Sample Comb : 20, 34, 50 samples (optional gun sampling)
Gel Thickness : 1.0mm
Gel tray(W×L)(mm) : 150x150
Sizes (W×D×H)(mm) : 220×130×190
The vertical electrophoresis tank allows for high resolution separations over long runs.
Gel Electrophoresis Chamber Specifications:
| Model | ET-V02 | |
|---|---|---|
| Glass Tray(W×L)(mm) | 180×180 | |
| Gel Tray(W×L)(mm) | 150×150 | |
| Sample Comb | 20, 34, 50samples (optional gun sampling) | |
| Gel Thickness | 1.0mm | |
| Buffer Capacity | 600ml | |
| Sizes (W×D×H)(mm) | 220×130×190 | |
| Shipping Size(W×D×H)(mm) | 420×370×320 | |
| N.W./G.W. (kg) | 3.5/5 | |

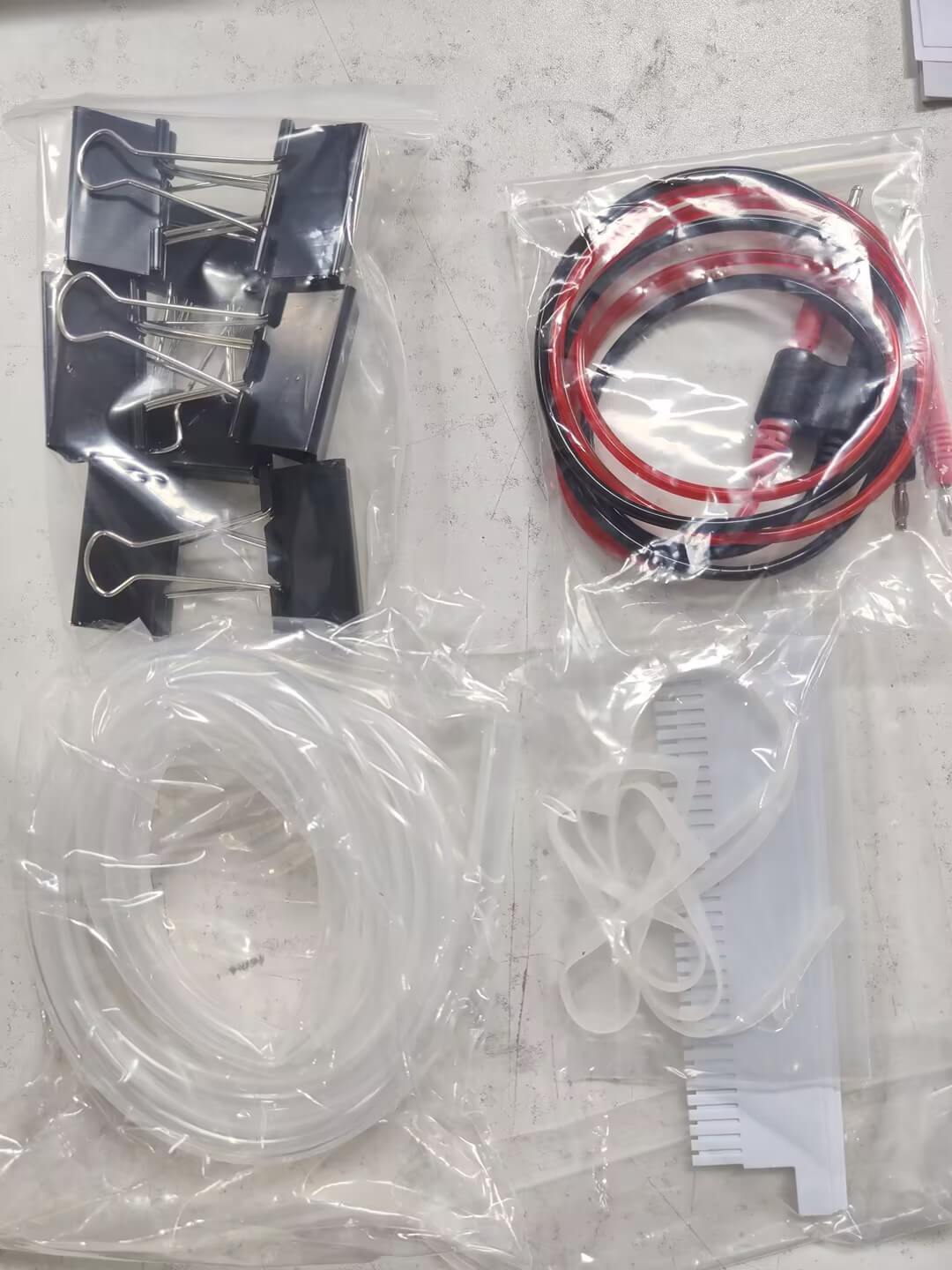

| Standard Accessories | ||
| Name | Specification | Quantity |
| Electrophoresis Tank | 1 | |
| Concave Glass Plate | 2 | |
| Flat Glass Plate | 2 | |
| Sealing Frame | 2 | |
| Sample Comb | 20 samples | 2 |
| 34 samples | 2 | |
| Drain Pipe | 2 | |
| Wireway | 1 | |
Vertical Electrophoresis Tank Features:
Suitable for all kinds of protein gel electrophoresis.
Thickened gel glass plate provides better structural stability and resistance to deformation.
Integrated design of concave plate and side bar, thus improving separation effect and resolution.
Dedicated sealing mould to ensure no leakage of gel to reduce experimental failure and waste due to gel leakage.
Buffer drain ports on the top and bottom slots for easy removal of residual liquid.
Details of Vertical Electrophoresis Tank:
Transparent housing with internal electrophoresis buffer tank and dividers to hold electrophoresis gels.
The electrophoresis tank is equipped with electrodes at both ends that provide a stable electric field that drives the separation of sample molecules in the gel according to molecular weight or charge.
Gel electrophoresis equipment has a simple design and is easy to operate.
