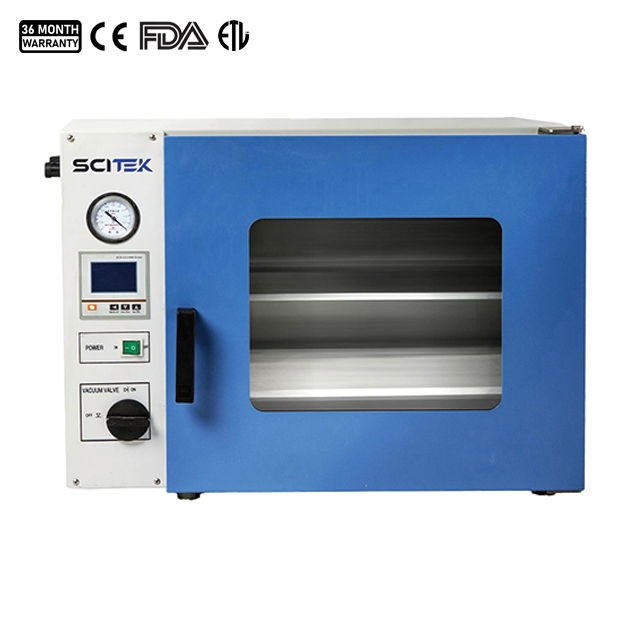

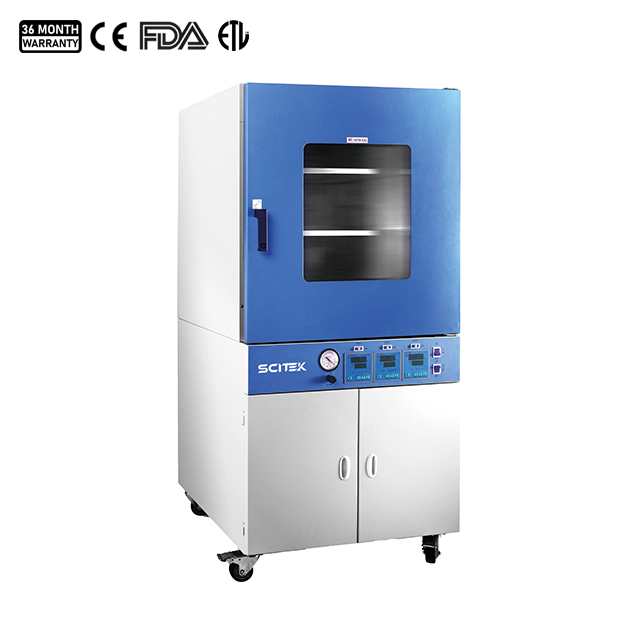

| Name | Vacuum Oven |
| Code | scitek-0032 |
| Type | Standard |
| Brand | Scitek |
| Category | Ovens and Furnaces |
| subcategory | Vacuum Oven |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Capacity : 25L/54L/91L
Temperature Range(℃) : RT+10~200℃/250℃
Temperature Fluctuation : ±1℃
Display Resolution : 0.1℃
These vacuum drying ovens have excellent heat transfer and fast heat-up times, which can increase drying speeds by up to six times compared to using conventional equipment.
This vacuum oven features digital controls, built-in overheat protection and more for a wide range of applications. These vacuum ovens can be used for processes such as drying, ageing, curing of samples to ensure sample quality.
Vacuum Oven Specifications:
| Model | VO-25 | VO-55 | VO-90 |
|---|---|---|---|
| Capacity(L) | 25 | 54 | 91 |
| Temperature Range(℃) | RT+10~200℃ | RT+10~250℃ | RT+10~200℃ |
| Temperature Fluctuation(℃) | ±1℃ | ||
| Display Resolution(℃) | 0.1℃ | ||
| Small Vacuum Pump | Optional | Standard | |
| Vacuum Pressure | <133 Pa | ||
| Shelf | 1 | 2 | |
| Power Supply | AC220/110V, 50/60Hz | ||
| Power(W) | 500 | 1400 | 1600 |
| Chamber Size (W×D×H)(mm) | 300×300×280 | 420×350×370 | 450×450×450 |
| Sizes (W×D×H)(mm) | 580x570x460 | 710x590x530 | 610x660x1450 |
| Shipping Size (W×D×H)(mm) | 720×660×620 | 850×720×710 | 800×780×1650 |
| N.W./G.W. (kg) | 35/55 | 75/110 | 90/150 |
Vacuum Oven Features:
Microprocessor controller with LCD display, more accurate and reliable.
Polished stainless steel chamber, durable and easy to clean.
Tempered, bullet-proof double glass door ensure the safety of operator and clear observation of the chamber.
Door tightness can be adjustedsilicon sealing. To keep vacuum states in the chamber, can fll working chamber with inert gas (inflation pressure≤0.1 MPa).
Storage, heating, testing and drying can be performed in the environment without oxygen or in an inert atmosphere. It will not cause oxidation.
Vacuum oven is equipped with leakage protection.
Vacuum Oven Options:
Microprocessor controller
Built-in printer
RS485 connector
Inert gas inlet valve
Small vacuum pump (VO-25, VO-55)
