| Name | UV Visible Spectrophotometer, 190-1100nm |
| Code | scitek-0519 |
| Type | Standard |
| Brand | Scitek |
| Category | Spectrophotometer and Colorimeter |
| subcategory | UV-Vis Spectrophotometer |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Wavelength Range : 190-1100nm
Wavelength Accuracy : ±0.5nm
Wavelength Repeatability : ≤0.2nm
Size(W×D×H)(mm) : 460x360x225
The optical path of the UV Visible Spectrophotometer uses a helical form light path to reduce scattering and interference in the light path.
The UV vis spectrometers assess the intensity of light before and after it travels through a sample in a cuvette, allowing for the determination of a solution's concentration, purity, and physical properties. They are particularly suited for industries like chemicals, pharmaceuticals, biotechnology, food and beverage and more. Scitek's UV vis spectrometers are compact, digital, and user-friendly, making them perfect for enhancing and streamlining your workflows.
UV Visible Spectrophotometer Specifications:
| Model | SP-UV5600 |
|---|---|
| Optical System | Single Beam |
| Wavelength Range | 190-1100nm |
| Bandwidth | 2nm |
| Wavelength Accuracy | ±0.5nm |
| Wavelength Repeatability | ≤0.2nm |
| Wavelength Setting | Auto |
| Photometric Accuracy | ±0.3%T |
| Photometric Repeatability | 0.2%T |
| Photometric Range | -0.3-3A, 0-200%T, 0-9999C |
| Stability | ± 0.002A/h @ 500nm |
| Baseline Flatness | ± 0.002A/h |
| Stray Light | ≤0.05%T@220nm,360nm |
| Data Output Port | USB |
| Printer Port | Parallel Port |
| Display | 128x64 Dots LCD |
| Lamps | Tungsten Lamp & Deuterium Lamp |
| Detector | Silicon Photodiode |
| Power Requirements | AC 220V/50Hz or 110V/60Hz |
| Size(W×D×H)(mm) | 460x360x225 |
| Shipping Size(W×D×H)(mm) | 630x540x370 |
| N.W./G.W. (kg) | 18/23 |
UV Visible Spectrophotometer Features:
This uv visible spectrophotometer adopts a screw structure, greatly improving the wavelength accuracy and resolution.
UV visible spectrophotometer adopts imported flange deuterium lamp, low stray light, accurate light measurement and easy replacement.
SP-UV5600 can establish various standard curves according to the customer's solution to determine the concentration of unknown resolution. And the wavelength can be set automatically by the direction key to avoid operation errors.
SP-UV5600 is controlled by a microprocessor. Numeric keys can easily set all parameters.
The UV visible spectrophotometer is equipped with a USB port for connection to a PC.
8mm rigid die-cast aluminum base is used as the optical mount to ensure the stability and reliability of the instrument.
Details of UV Visible Spectrophotometer:

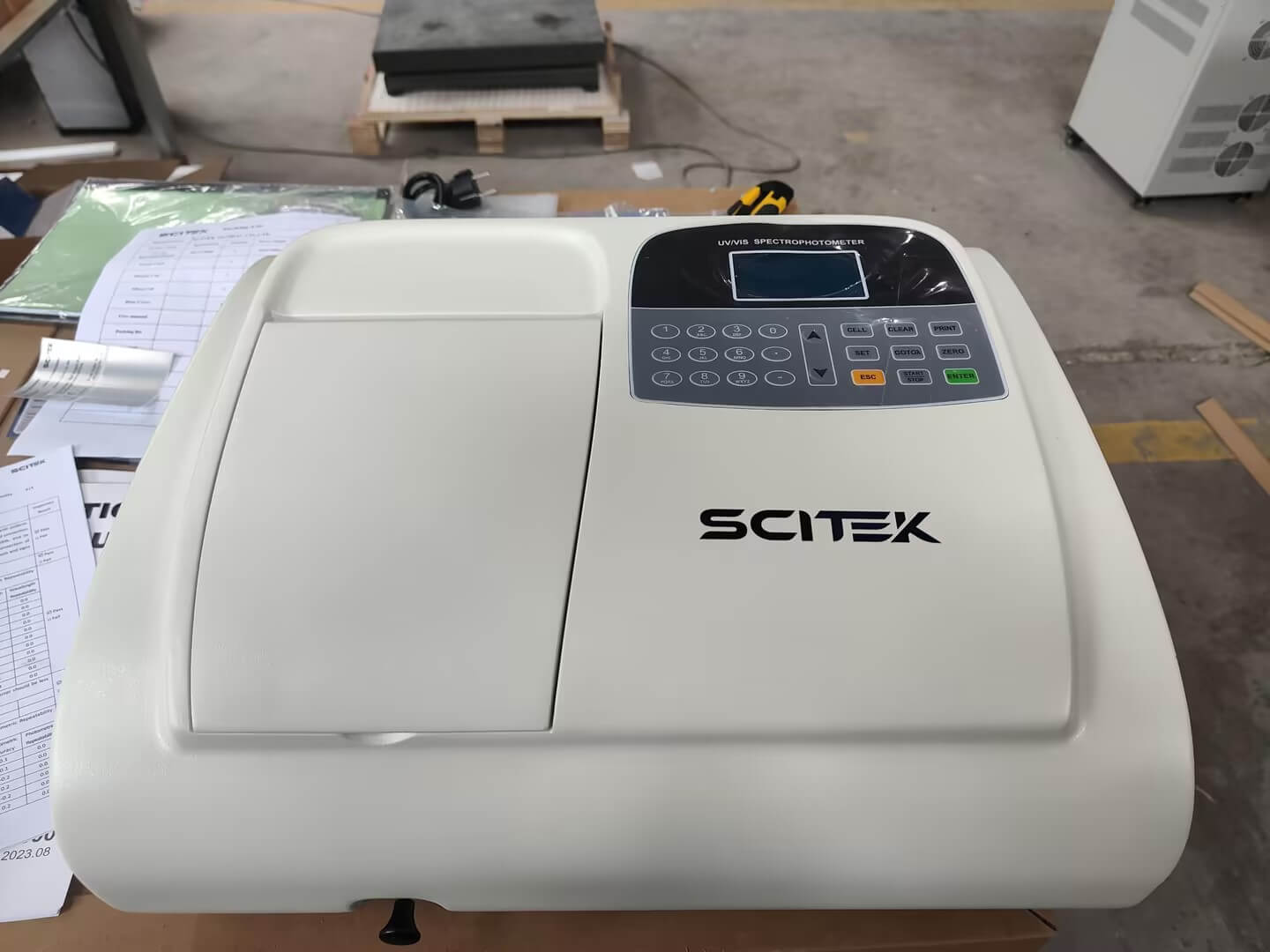

The UV VIS spectrophotometer has an overall compact design with a clearly visible and user-friendly display and control panel.

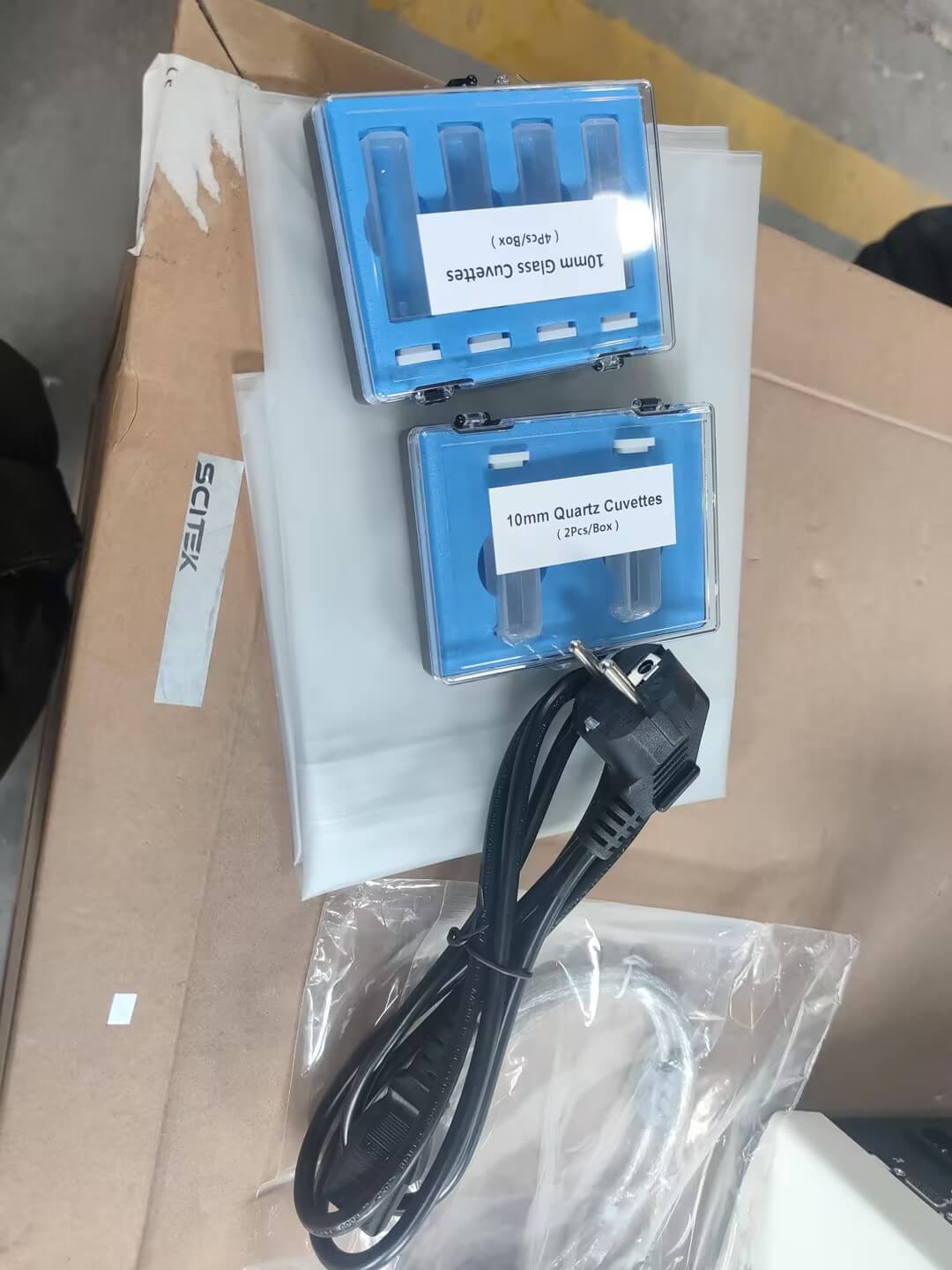

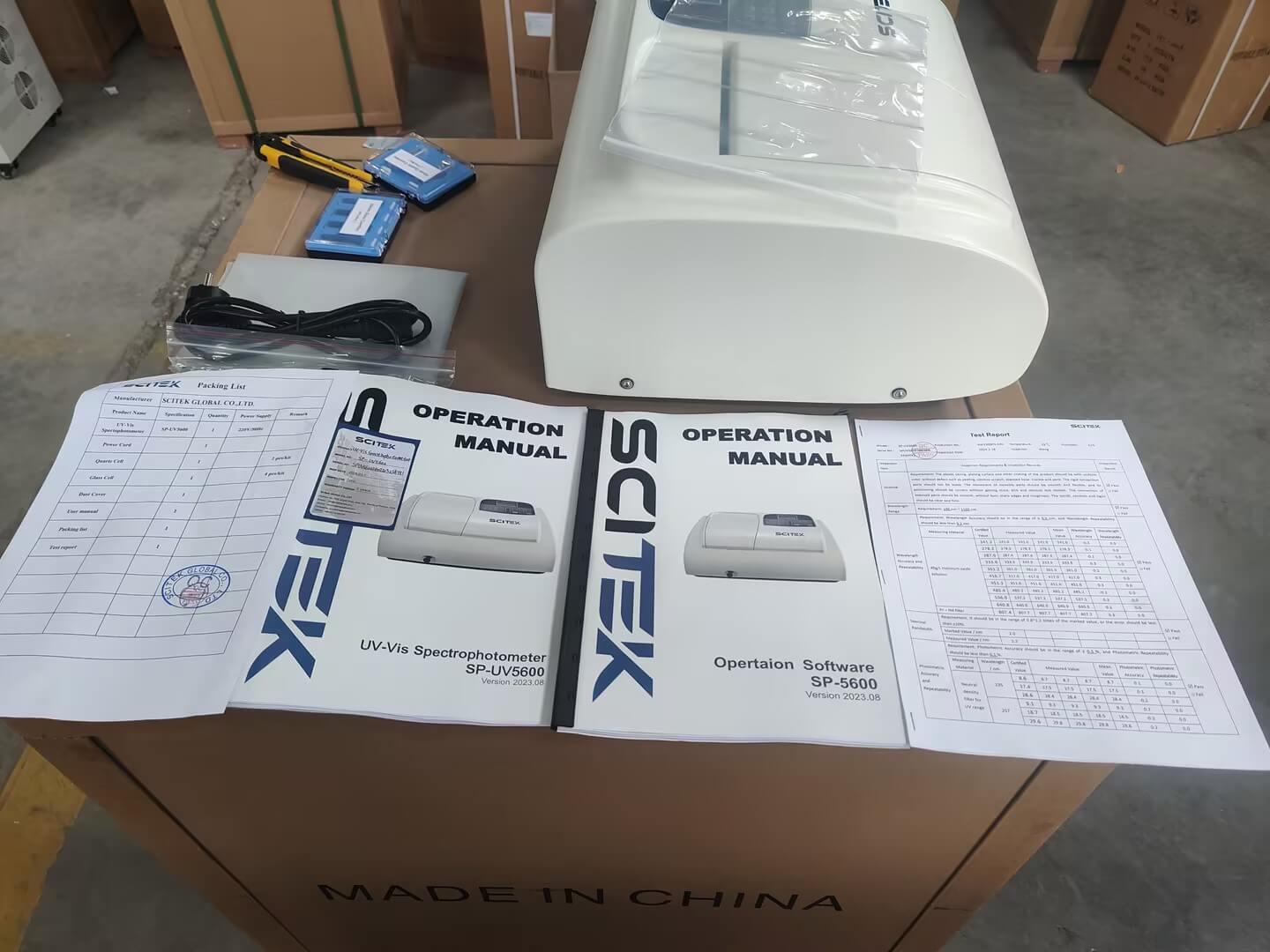

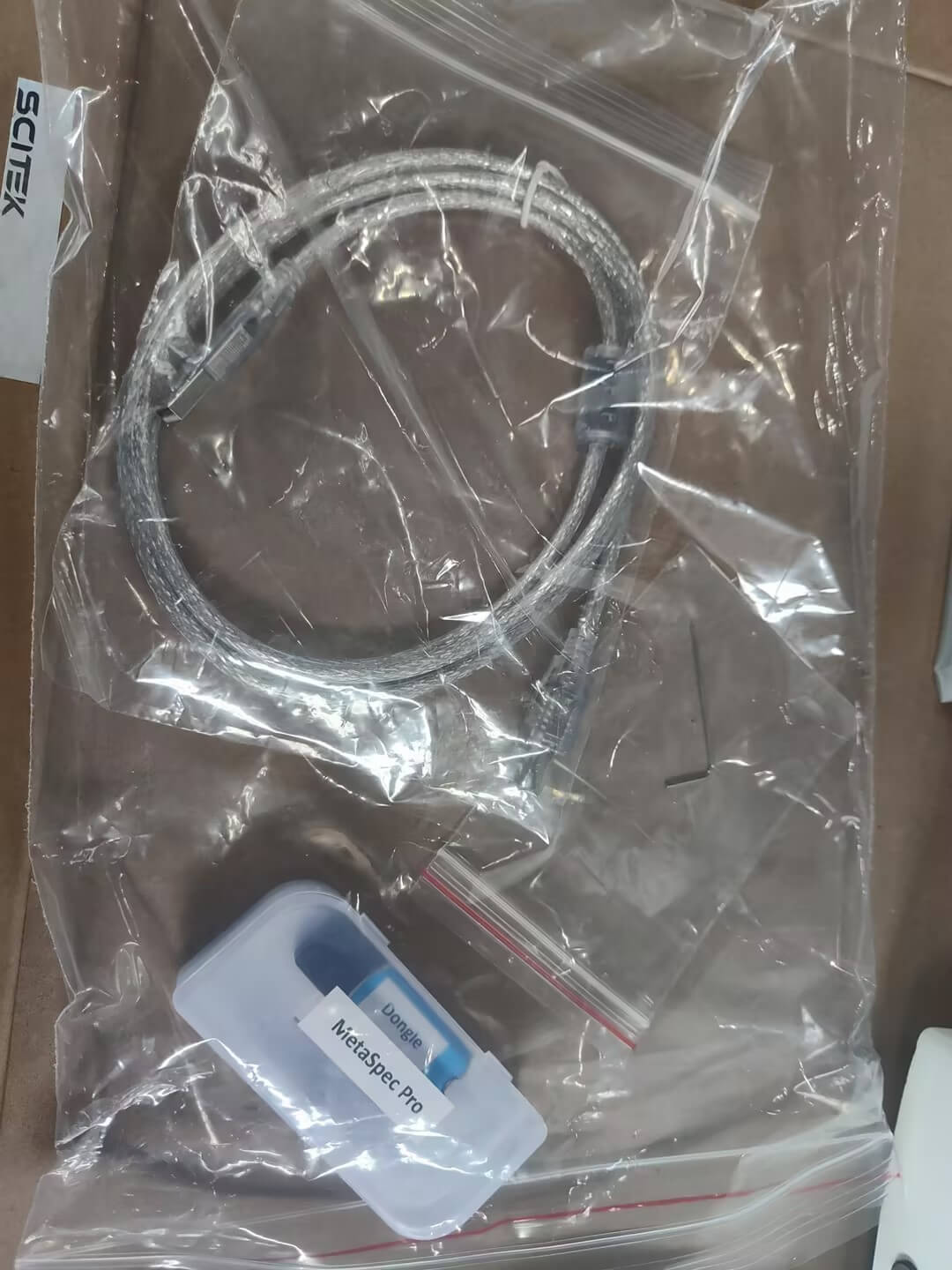

The UV-VIS spectrophotometer comes complete with a power cord, sample case and usb, making it easy for users to get up and running quickly.
