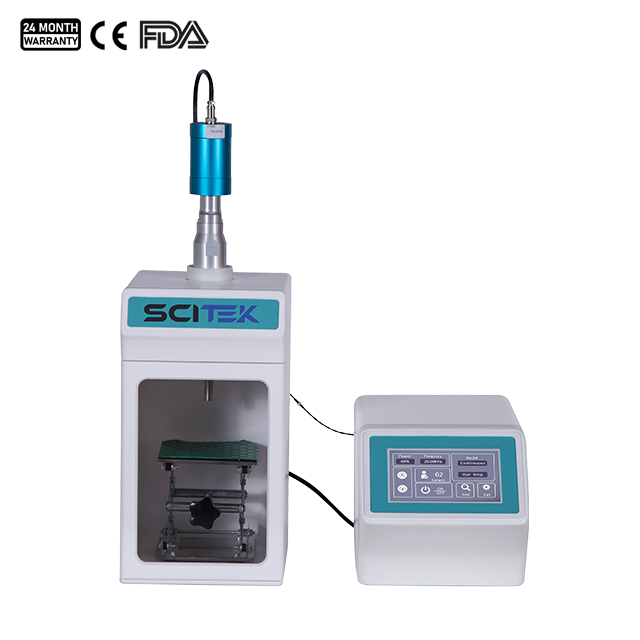

| Name | Ultrasonic Cell Disruptor, Modular |
| Code | scitek-0295 |
| Type | Standard |
| Brand | Scitek |
| Category | Ultrasonic Cell Disruptor |
| subcategory | Ultrasonic Cell Disruptor, Modular |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Operating Frequency Range: 19-25KHz
Generator Output Power: 300/550/650/950/1200/2000W
Crusher Capacity : 0.1-200ml; 0.1-600ml; 0.1-800ml; 0.1-1200ml; 0.1-1500ml; 0.1-3000ml
Standard Probe : Φ3mm; Φ6mm; Φ8mm; Φ13mm; Φ16mm; Φ20mm
This ultrasonic cell disruptor has advanced controls for more precise control of all key elements of the experiment. The split design is suitable for experimental needs that require a high degree of flexibility and customisation.
The ultrasonic cell disruptor uses advanced comminution technology with all the features required for ultrasonic disruption. High frequency sound waves are used to agitate and disrupt cell membranes to extract proteins, nucleic acids and other valuable biomolecules. The ultrasonic cell disruptor breaks down most cells, bacteria, spores, and DNA/chromatin and is suitable for use in most laboratories, universities, and other areas.
Ultrasonic Cell Disruptor Features:
2D exponential ultrasonic probes with higher output efficiency
3 Operation Modes: Continuous, pulse and timer (Timer 1min ~ 99h)
7" touch screen for easy operation & observation
10 user groups for programmable procedures
1%~100% variable power output
19-25KHz auto-tracking and auto amplitude compensation with real time display
0℃~300℃ sample temperature monitoring andprotection
Operating power AC 85V - 260V, fit for every laboratory in the world

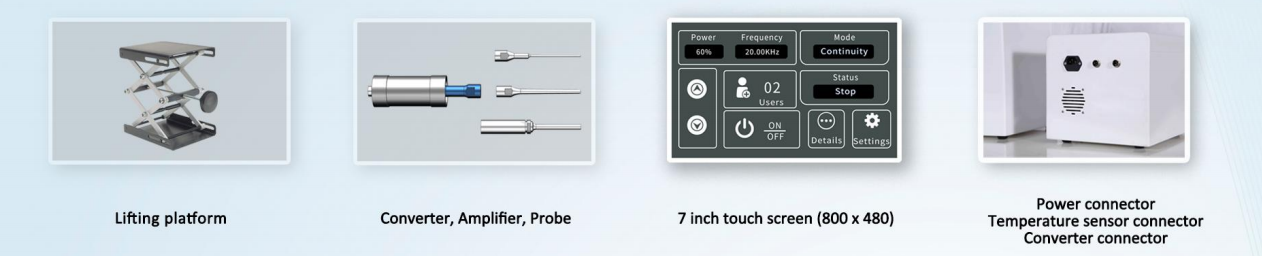

Details of Ultrasonic Cell Disruptor:
Ultrasonic Cell Disruptor Specifications:
| Model | UCD-S200 | UCD-S600 | UCD-S800 | UCD-S1200 | UCD-S1500 | UCD-S3000 |
|---|---|---|---|---|---|---|
| Capacity | 0.1-200ml | 0.1-600ml | 0.1-800ml | 0.1-1200ml | 0.1-1500ml | 0.1-3000ml |
| Frequencies | 19~25KHz | 19~25KHz | 19~25KHz | 19~25KHz | 19~25KHz | 19~25KHz |
| Power supply | 300W | 550W | 650W | 950W | 1200W | 2000W |
| Standard Probe | Φ3mm | Φ6mm | Φ8mm | Φ13mm | Φ16mm | Φ20mm |
| Optional Probes | Φ3 (0.1 ~ 50ml) Φ6 (50～200ml) | Φ3 (0.1～50mL) Φ6 (50～300mL) Φ8 (200～500mL) | Φ3 (0.1～50mL) Φ6 (50～400mL) Φ8 (200～800mL) | Φ6 (50～300mL) Φ8 (300～600mL) Φ13 (500 ~ 1200mL) | Φ13 (50～1000mL) Φ16 (500 ~ 1500mL) | Φ13 (50 ~ 1000mL) Φ16 (500～1500mL) Φ20 (500 ~ 3000mL) |
Application of Split ultrasonic liquid processor:
EP tube microsample, small processing capacity, routine laboratory, large processing capacity
The ultrasonic liquid processor is used for the crushing of many kinds of animal and plant cells, virus cells.
Melting, emulsification, traction, separation, rinsing, accelerated chemical reaction and so on.
It is widely used in the fields of microbiology, zoology as well as biology and medicinal chemistry.
