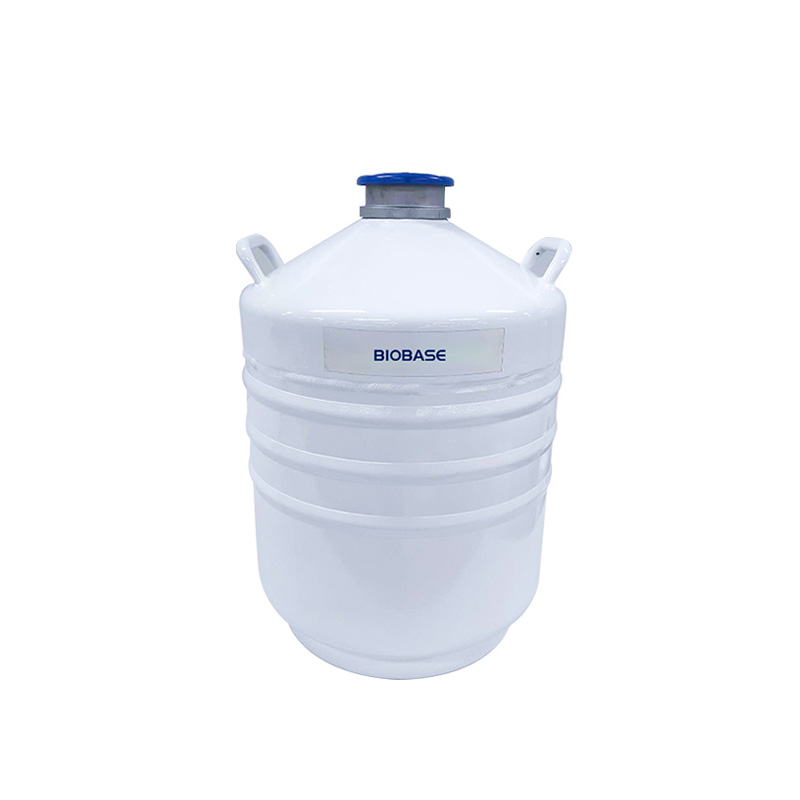

| Name | Transportation Liquid Nitrogen Container YDS Series |
| Code | biobase-0170 |
| Type | Standard |
| Brand | Biobase |
| Category | Laboratory And Medical Cryogenic Equipments |
| subcategory | Liquid Nitrogen Container |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Liquid nitrogen tank is a kind of equipment for storing and transporting liquid nitrogen, which is mainly used in scientific research, industrial production, medical treatment and agriculture. The design of liquid nitrogen tank is based on the principle of vacuum jacket insulation invented by Dewar, which can effectively reduce the evaporation loss of liquid nitrogen due to heat convection, conduction and radiation.
Features:
1. High vacuum, multi-layer insulation design
2. Low static evaporation rate
3. Made ofhigh-quality alloy aluminum
4. Insulation material bracket, Iower evaporation, safe and reliable transportation
Technical Parameters:
Model | Unit | YDS-20B | YDS-30B | YDS-35B-80 | YDS-35B-125 | YDS-35B | YDS-50B-125 | ||||||||||
Capacity | L | 20.1 | 31.5 | 35.5 | 35.5 | 35.5 | 50 | ||||||||||
Empty Weight | kg | 12.42 | 15.6 | 17.9 | 18.3 | 17.1 | 21 | ||||||||||
Caliber | mm | 50±1 | 50±1 | 80±1 | 125±1 | 50±1 | 125±1 | ||||||||||
Outer Diameter | mm | 409±2 | 455±2 | 455 | 455 | 455 | 508 | ||||||||||
Height | mm | 675 | 665 | 725 | 720 | 725 | 818±4 | ||||||||||
Static Evaporation Loss | L/d | ≤0.20 | ≤0.20 | ≤0.30 | ≤0.41 | ≤0.20 | ≤0.45 | ||||||||||
Static Holding Time | d | ≥101 | ≥159 | ≥119 | ≥86 | ≥179 | ≥110 | ||||||||||
Canister Specification | mm | NO | NO | NO | NO | NO | NO | ||||||||||
Canister No. (Standard) | pc | NO | NO | NO | NO | NO | NO | ||||||||||
Canvas Protective Sleeve | pc | NO | NO | NO | NO | NO | NO | ||||||||||
Lockable Lid | set | NO | NO | NO | NO | NO | NO | ||||||||||
Packing Size | mm | 460*460*750 | 510*510*810 | 575*575*860 | |||||||||||||
Gross Weight | kg | 14.1 | 17.6 | 19.9 | 20.3 | 19.1 | 24.8 | ||||||||||
Model | Unit | YDS-20B-LS(6) | YDS-20B-S(6) | YDS-30B-LS(6) | YDS-30B-S(6) |
