| Name | TB100 Portable Turbidity Meter |
| Code | bante-0120 |
| Type | Standard |
| Brand | Bante |
| Category | Turbidity Meters |
| subcategory | Turbidity Meters |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |

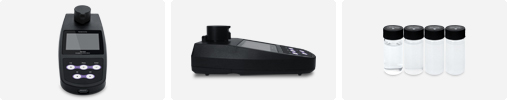

TB100 Portable Turbidity Meter
High-performance portable turbidity meter, 2 to 5 points calibration, selectable 4 turbidity units, the meter is suitable for process control and field use.
Features:
• High-performance portable turbidity meter meets the design criteria in ISO 7027.
• 2 to 5 points calibration using the Formazin Standards.
• Selectable 4 turbidity units, including the NTU, FNU, EBC and ASBC.
• Single measurement mode automatically senses and locks a stable reading.
• Continuous measurement mode can be used for indexing or matching the sample vials.
• Auto-power off effectively conserves battery life.
• Setup menu allows setting the number of calibration points, resolution, date and time, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Expanded memory stores or recalls up to 100 data sets.
• USB communication interface for data transfer or connecting a power adapter to the meter.
Applications:
• Drinking water and beverage industry
• Environmental monitoring and other industrial applications
Specification
Model | TB100 | |
Turbidity | ||
Range | 0 to 1100 NTU / 0 to 275 EBC / 0 to 9999 ASBC | |
Resolution | 0.01, 0.1, 1, automatic | |
Accuracy | ±2% of reading (0~500 NTU), ±3% of reading (501~1000 NTU) | |
Calibration | 2 to 5 points | |
Calibration Standards | 0.02 / 10 / 200 / 500 / 1000 NTU | |
Other Specifications | ||
Light Source | Infrared-emitting diode, wavelength 850 nm | |
Detector | Silicon photodiode | |
Stray Light | < 0.02 NTU | |
Sample Vial | 60 × 25(Ø) mm | |
Sample Volume | 20 mL | |
Auto-Power Off | 15 minutes after last key pressed | |
Memory | Stores up to 100 data sets | |
Output | USB communication interface | |

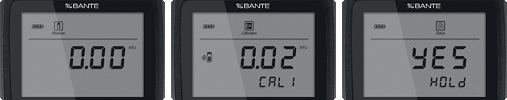

Display | Custom LCD (60 × 40 mm) | |
Power Supply | 3 × 1.5V AA batteries or 5V DC power adapter | |
Dimensions | 180 × 85 × 70 mm | |
Weight | 300 g |
Ordering Info
Ordering Code | Meter Includes |
TB100 | Turbidity standards 0.02, 200, 500, 1000 NTU |
Glass sample vials | |
Lint-free cloth | |

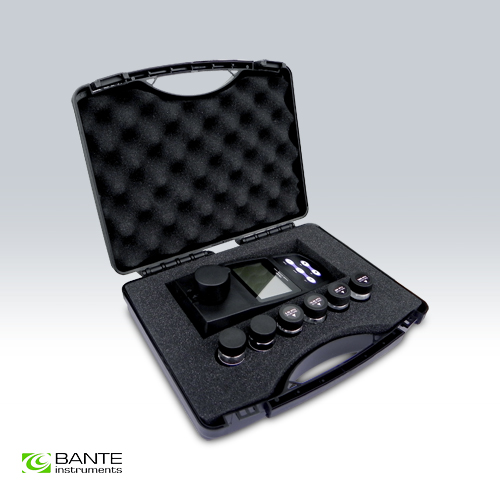

Carrying case |
Optional Accessories
| Items | Description |

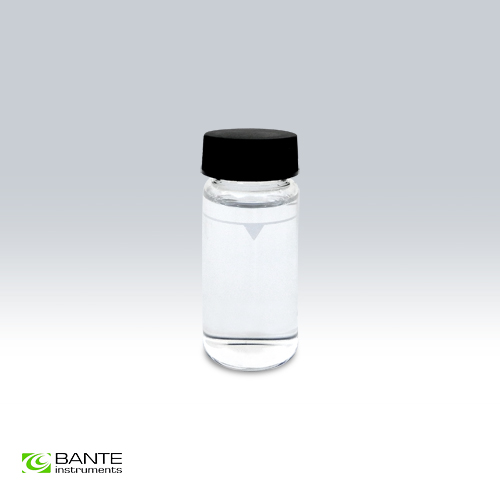

| Turbidity Sample Vial | Capacity 20 mL |
| Turbidity Standard Solutions | 0.02, 200, 500, 1000 NTU |
| USB Cable | For transferring data or connecting power adapter |
| 5V DC Power Adapter | For connecting external power source |
Packaging
Ordering Code | Dimensions and Weights |
TB100 | 28 × 8 × 25 cm, 1.5 kg |
