| Name | StepMate Stepper |
| Code | biobase-0564 |
| Type | Standard |
| Brand | Biobase |
| Category | Liquid Processing Instruments |
| subcategory | Pipettes |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |

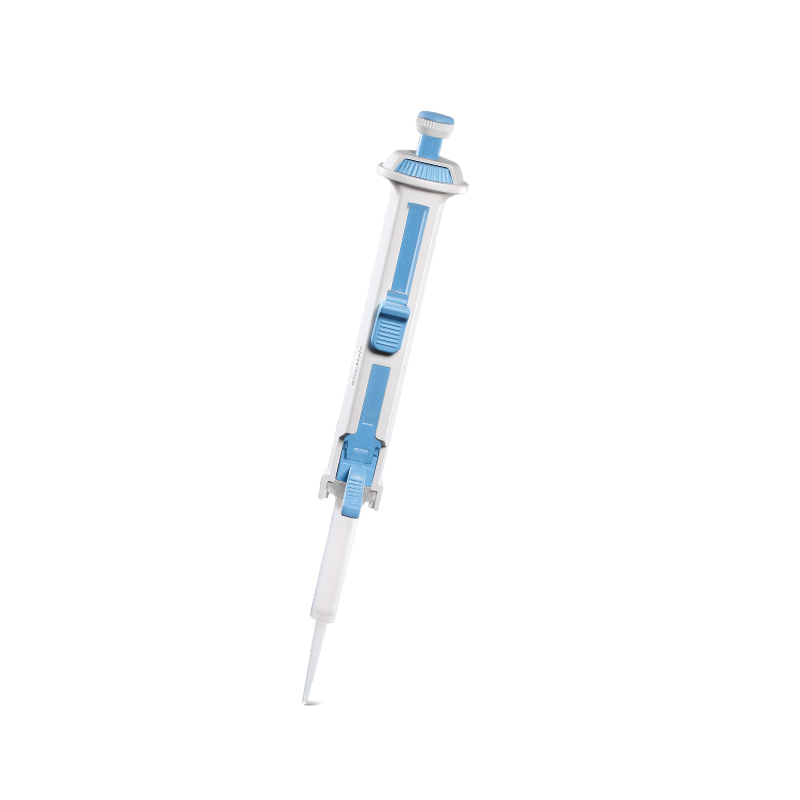

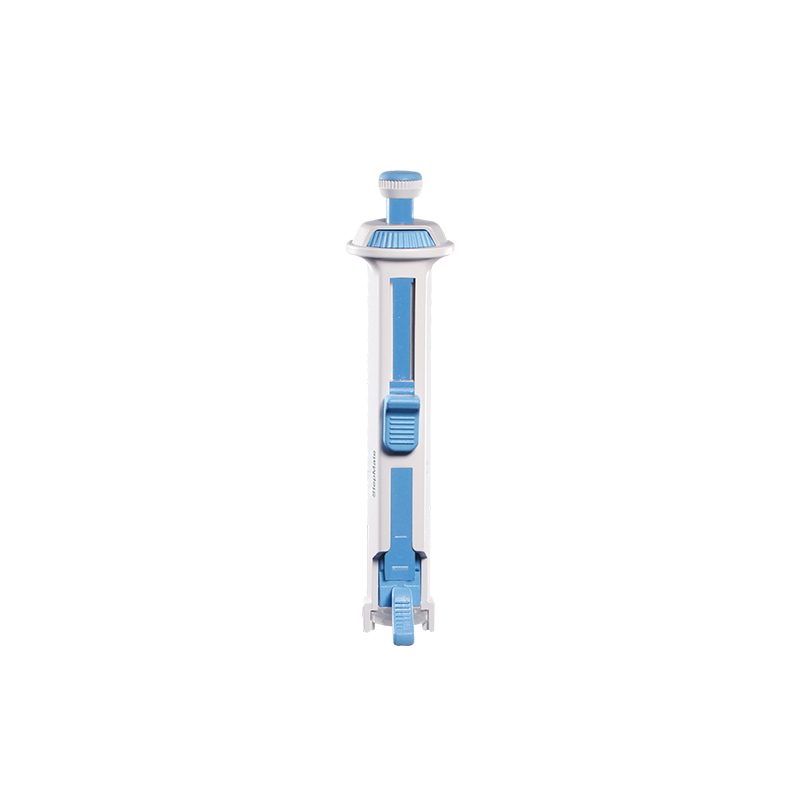

Features:
• Light and ergonomic solution provides easy usability
• Single-handed operation
• Volume range from 10μL to 5mL
• Up to 48 dispensing steps
• Maintenance free
• Equipped with durable tip
• insertion lever
• Fits seven sizes of disposable polypropylene syringes from 0.5mL to 50mL
Optimized for smooth dispensing of even the smallest volumes
Five easy-to-select settings control dispensing volume
By pushing the slide upwards,
the syringe is filled up
The stop lever secures the syringe

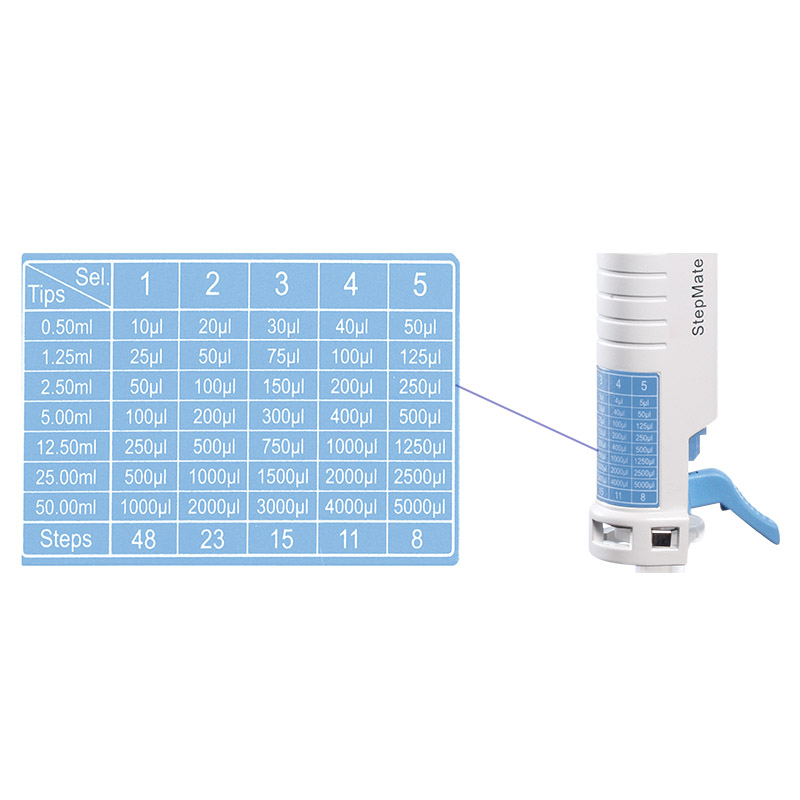

How to select dispensing volume
Find the required dispensing volume in the table
Use the adjusting wheel to set the required volume
Select and insert a suitable tip
Follow the maximum dispensing steps

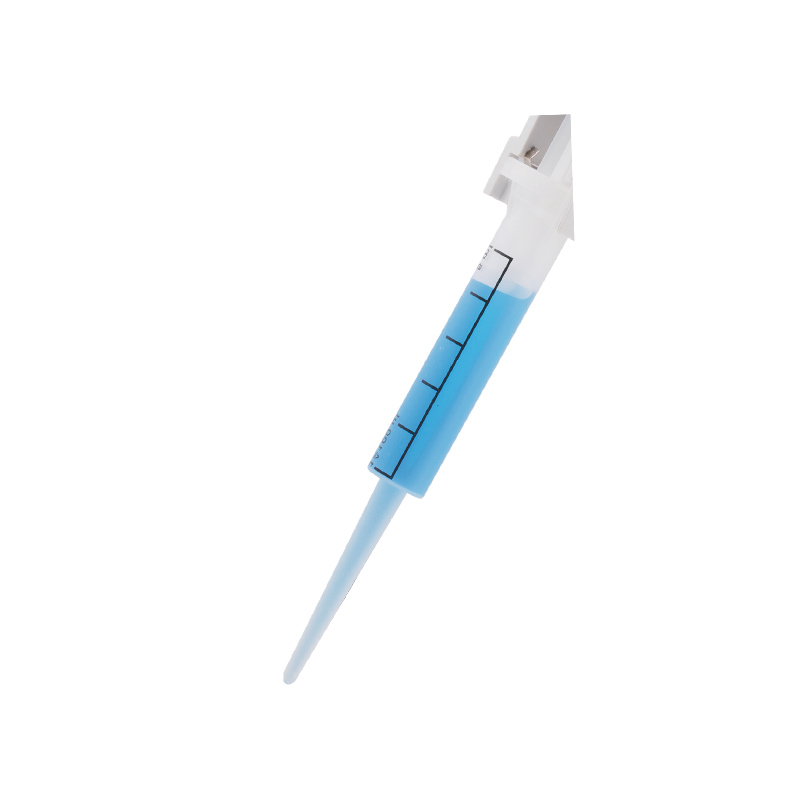

Stepper tips are particularly suitable for dispensing of fluids with high viscosity, high
vapor pressure etc.
Tips are made from high-quality materials(Cylinder: PP, Piston: PE-HD) without soft
lubricants or other additives.
Parameter:
Note:
1. The first and last dispensing liquid should be discarded for precision.
2. Cat No. 7031000000
Dial setting | 1 | 2 | 3 | 4 | 5 |
Number of steps | 48 | 23 | 15 | 11 | 8 |
Cat. No. | Syringe volume (mL) | Sample volume (μL) | A % | P % | Description | ||||
17900032 | 0.50 | 10 | 20 | 30 | 40 | 50 | ± 0.8 | ≤ 0.7 | 0.5mL, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing |
17900033 | 1.25 | 25 | 50 | 75 | 100 | 125 | ± 0.8 | ≤ 0.5 | 1.25mL, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing |
17900034 | 2.50 | 50 | 100 | 150 | 200 | 250 | ± 0.8 | ≤ 0.4 | 2.5mL, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing |
17900035 | 5.00 | 100 | 200 | 300 | 400 | 500 | ± 0.4 | ≤ 0.3 | 5mL, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing |
17900036 | 12.50 | 250 | 500 | 750 | 1000 | 1250 | ± 0.3 | ≤ 0.3 | 12.5ml, piston PE-HD, cylinder PP, 1 packing, 5 pcs/packing |
17900037 | 25.00 | 500 | 1000 | 1500 | 2000 | 2500 | ± 0.2 | ≤ 0.3 | 25mL, piston PE-HD, cylinder PP, 1 packing, 2pcs/packing with 1 pc adapter |
17900038 | 50.00 | 1000 | 2000 | 3000 | 4000 | 5000 | ± 0.2 | ≤ 0.2 | 50mL, piston PE-HD, cylinder PP, 1 packing, 2pcs/packing with 1 pc adapter |
