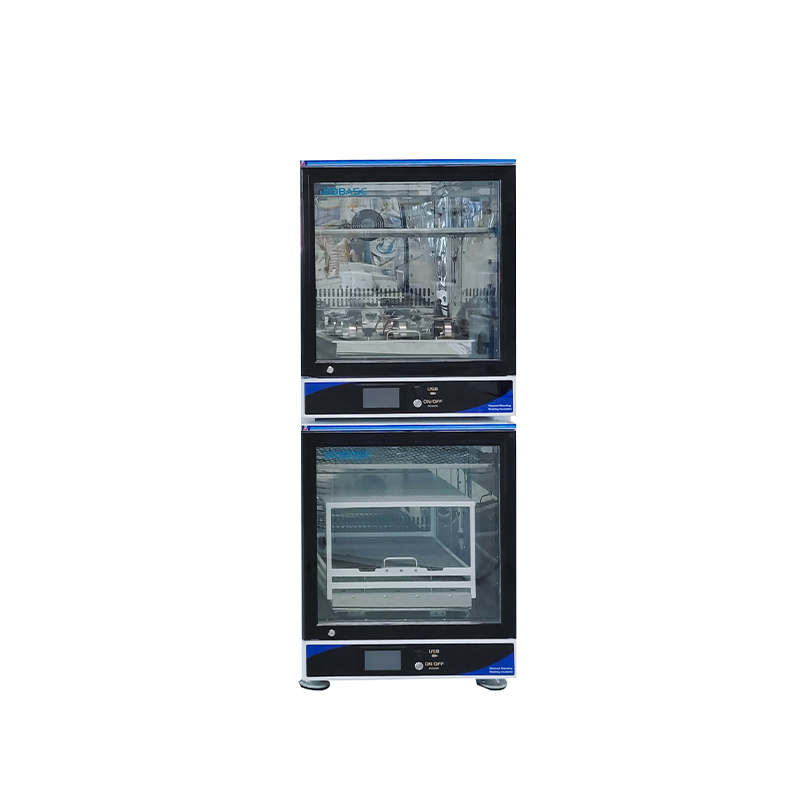

| Name | Stacked Large Capacity Shaking Incubator(BJPX-SDL) |
| Code | biobase-0266 |
| Type | Standard |
| Brand | Biobase |
| Category | Laboratory Incubator |
| subcategory | Shaking Incubator |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
The Stacked Large Capacity Shaking Incubator is a high-performance device designed for large-scale cell culture, microbial fermentation, and other temperature-sensitive shaking applications. With its stacked design, this incubator maximizes space efficiency in laboratories while offering increased capacity for simultaneous experiments.
Features:
1. Brushless DC motor, low noise, lasting operation.
2. 5 inch touch screen, clear and intuitive interface.
3. Run parameter encryption lock, parameter memory function.
4. With power failure recovery function, with power failure recovery function.
5. Motor overheat, temperature control, abnormal over temperature instrument automatically cut off their power supply.
6. With USB data export function to achieve data traceability.
7. With ultraviolet disinfection function.
8. Standard equipped with LED light, open the door of the box light automatically open.
Technical Parameters:
Model | BJPX-SDL10 | BJPX-SDL20 |
Controller | PID | |
Display | 5 inch touch screen | |
Circulation Mode | Forced convection | |
Shaking Mode | Rotary shaking | |
Drive Mode | Single axis balanced drive type | |
Vibration Range | Φ26mm | |
Rotating Speed | 30~300r/min | |
Rotating Accuracy | ±1r/min | |
Temp. Range | RT+5~60℃ | 4~60℃ |
Temp. Control Accuracy | 0.1℃ | |
Temp. Uniformity | ≤±1℃(37℃） | |
Temp. Fluctuation | ≤±0.5℃ | |
Timing Range | 0~999min | |
460*450mm | ||
Shaking Plate Quantity | 1pc | 2pcs |
Capacity | 155L | |
Max. Capacity | 250ml*20 or 500ml*16 or 1000ml*9 or 2000ml*6 or 5000ml*4(Flask clamp) tube rack*2 96-well plate*12 clamping rod shaking plate*1 | Upper layer: 250ml*20 or 500ml*16 Lower layer: 50ml*60 or 100ml*60 or 250ml*40 or 500ml*32(Flask clamp)
|
Standard. Capacity | 250ml*20 or 500ml*16 or 1000ml*9 or 2000ml*6 or 5000ml*4 | 50ml*60 or 100ml*60 or 250ml*40 or 500ml*32 |
Lighting Mode | LED lamp*1 | |
SterilizationMode | UV lamp*1 | |
Refrigerant | / | R290 |
Ambient Temp. | 15~35℃ | |
Internal Material | 304 stainless steel | |
External Material | Cold rolled steel sheet | |
Safety Function | High/low temperature, abnormal shutdown, motor failure, equipment door is not closed properly automatic alarm, alarm mode is sound and light alarm | |
Consumption | 1200W | 1800W |
Power Supply | Standard: AC200~240V, 50/60Hz Optional: AC110V, 50/60Hz | |
Internal Size | 560*500*555mm | |
External Size | 650*840*810mm | |
Package Size | 775*1005*1070mm | |
Net Weight | 195kg | 215kg |
Gross Weight | 225kg | 245kg |
