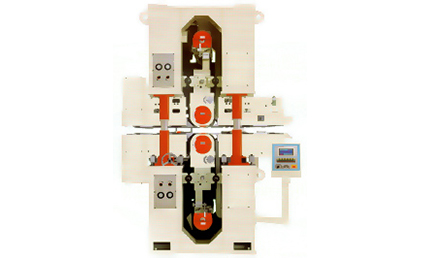

SR 20D Double Side Calibrating Sander (tlead-1433) Products
| Name | SR 20D Double Side Calibrating Sander |
| Code | tlead-1433 |
| Type | Standard |
| Brand | Amtast |
| Category | Wood Machines |
| subcategory | Sanding Machine |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Product details for Invoice
Parameter SR 20D Working Width 120~~1900mm Working Length 700mm Working Thickness 3~~120mm Sanding Belt Front 26 m/s Rear Size of Sanding Belt (W P) 1950 2850mm Feeding Speed 6~~30m/min Power Main Motor Front 90kW 2 Rear Feeding Motor 15kW
Product Details
| Parameter | SR 20D | |||
| Working Width | 120~~1900mm | |||
| Working Length | >700mm | |||
| Working Thickness | 3~~120mm | |||
| Sanding Belt | Front | 26 m/s | ||
| Rear | ||||
| Size of Sanding Belt (W × P) | 1950 × 2850mm | |||
| Feeding Speed | 6~~30m/min | |||
| Power | Main Motor | Front | 90kW × 2 | |
| Rear | ||||
| Feeding Motor | 15kW | |||
| Lifting Motor | 1.5kW | |||
| Brush Motor | 2.2kW × 2 | |||
| Compressed Air | Pressure | 0.6 MPa | ||
| Air Consumption | 0.5m 3 /min | |||
| Suction Air Consumption | Volume | 33000m 3 /h | ||
| Pressure | 1300Pa | |||
| Average Air Speed | 25~~30m/s | |||
| Net Weight | 21T | |||
| All rights for technical modifications reserved. CE approval | ||||
