| Name | Soil Compaction Tester |
| Code | scitek-1104 |
| Type | Standard |
| Brand | Scitek |
| Category | Agricultural Lab Solution |
| subcategory | Soil Compaction Tester |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Accuracy : ±0.5‰ FS
Position Accuracy : Three decimal ±0.05 (≤50m)
Range : 0~10,000KPa; 0~100kg/c㎡; 0~1,000N/c㎡ (switchable)

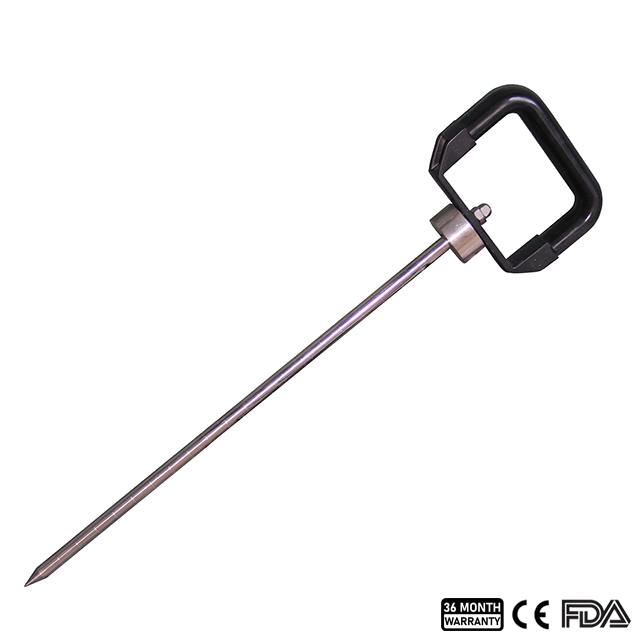

Soil Compaction Tester Specifications:
| Model | SCT-750I | |
|---|---|---|
| Sensor Technical Parameters | Function | General type, display soil compaction (KPa, kg/c㎡, N/c ㎡) directly, with data saving function. |
| Range | 0~10,000KPa; 0~100kg/c㎡; 0~1,000N/c㎡ (switchable) | |
| Depth | 0~375mm (measuring rod is 400mm) | |
| Accuracy | ±0.5‰ FS | |
| Position Accuracy | Three decimal ±0.05 (≤50m) | |
| Handset Parameters | Storage Capacity | Almost up to 30,000 groups in handset, and equipped with 4G Micro SD |
| Data-collection Interval | 5min~99hour | |
| Power Supply | Battery: 8.4V lithium battery; Adapter: 100~240V 50/60Hz | |
| Working Current | Stand-by power consumption 10mA, working power consumption according to the configuration | |
| Shipping Size(W×D×H)(mm) | 560x190x320 | |
| G.W. (kg) | 6 | |
Soil Compaction Tester Feature:
Compact size, easy to carry, suitable for data collection on a variety of occasions
Support unattended work can be set up through timed or manual data acquisition.
It can automatically record and save the data after the collection is completed, providing flexible data collection methods.
Charge protection, low voltage prompt function, prolonging the service life of the battery
Low power consumption design with system monitoring and protection functions can avoid short circuits or external interference.
Support mobile phones to connect different types of sensors through the concentrator to maintain the consistency of data collection.
The software displays the trend of each parameter, zooming in and out, coloring the over-limit area, etc. It supports saving the data in EXCEL format, which is convenient for viewing and analysis.
