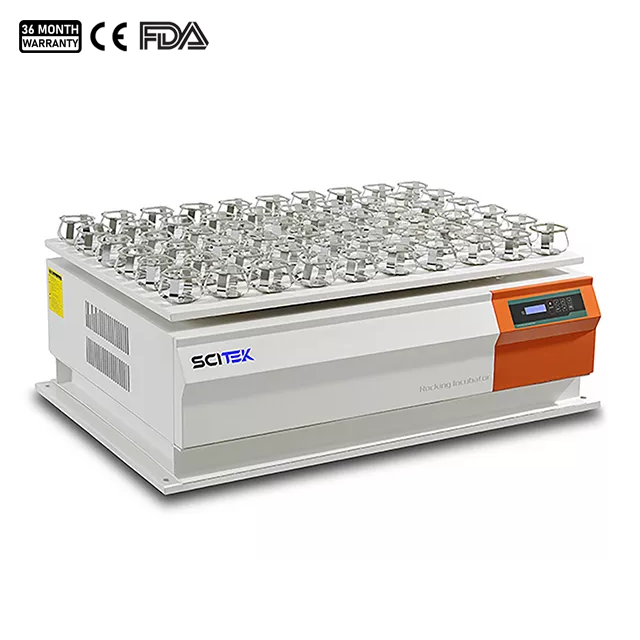

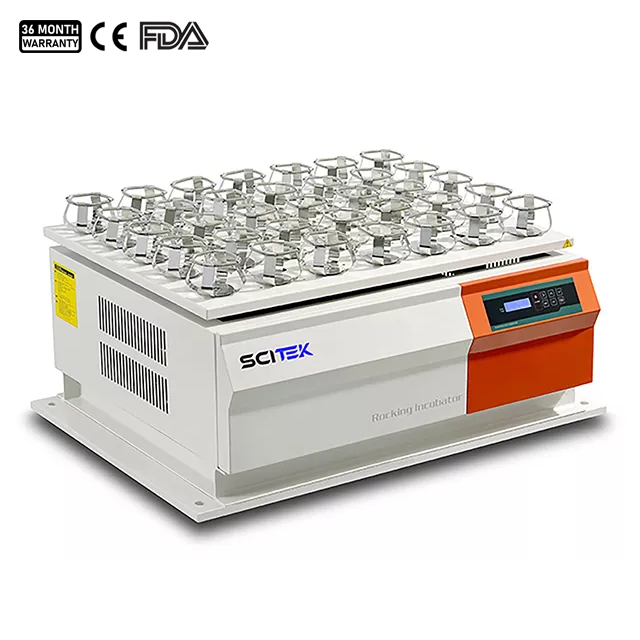

Single-layer Shaker (scitek-0760) Products
| Name | Single-layer Shaker |
| Code | scitek-0760 |
| Type | Standard |
| Brand | Scitek |
| Category | Mixer and Shaker |
| subcategory | Shaker and Accessories |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Product details for Invoice
Model : SK-S300; SK-S311; SK-S322
Display Mode : LCD (Large liquid crystal screen)
Circulation Mode : Natural Convection
Speed Range (r/min) : 30-300
Timing Range(min) : 0-999.59
Size of Rocking Plate(mm) : 680×500 / 840×620 / 1108×740
Display Mode : LCD (Large liquid crystal screen)
Circulation Mode : Natural Convection
Speed Range (r/min) : 30-300
Timing Range(min) : 0-999.59
Size of Rocking Plate(mm) : 680×500 / 840×620 / 1108×740
Product Details
Single-layer Shaker Specifications:
| Model | SK-S300 | SK-S311 | SK-S322 |
|---|---|---|---|
| Control Mode | P. I. D (Microcomputer scans the micro-processing chip) | ||
| Display Mode | LCD (Large liquid crystal screen) | ||
| Circulation Mode | Natural convection | ||
| Oscillation Mode | Gyratory | Gyratory | |
| Drive Mode | Balance drive by single shaft | ||
| Ambient Temperature Requirement(℃) | 15-35 | ||
| Curve Programing Settings | Programing settings of repetition, steps and eight-section curves | ||
| Safety Functions | Automatic running, automatic stop, timing running, clock display, startup after power again, parameter memory, speed storage | ||
| Additional Functions | Monitoring timer, stand-alone over-speed audio/light alarm, stand-alone leakage or over-current protector | ||
| Speed Range (r/min) | 30-300 | ||
| Speed Accuracy (r/min) | ±1 | ||
| Amplitude of Rocking Plate (mm) | 50 | ||
| Timing Range (min) | 0-999.59 | ||
| Size of Rocking Plate (mm) | 680×500 | 840×620 | 1108×740 |
| Number of Rocking Plates | 1 | ||
| Power/w | 80 | 150 | |
| Power Supply | AC200-240V, 50-60Hz | ||
| Material of Outer Box | High-quality nodular cast iron, channel steel, angle steel, medium plates and cold rolled steel sheets | ||
| Sizes(W×D×H)(mm) | 680×615×300 | 900×650×480 | 1210×795×380 |
| Shipping Size (W×D×H)(mm) | 810×760×490 | 1010×800×640 | 1320×920×590 |
| N.W./G.W. (kg) | 104/120 | 216/245 | 323/355 |
| Model | SK-S300 | SK-S311 | SK-S322 | |
|---|---|---|---|---|
| Specifications | The number of rocking plates in single configuration is highest | The number of rocking plates in single configuration is highest | The number of rocking plates in single configuration is highest | |
| Erlenmeyer Flask | 250ml | 30 | 54 | 96 |
| 500ml | 24 | 35 | 60 | |
| 1000ml | 15 | 24 | 40 | |
| 5000ml | 4 | 6 | 12 | |
Single-layer Shaker Feature:
Single-deck vibrating screen adopts advanced proportional, integral and derivative control to improve the precision and efficiency of screening.
A variety of safety functions such as automatic operation, automatic stop, timed operation, high degree of automation reduce the need for manual intervention and reduce production costs.
Large screen liquid crystal display, clear and comprehensive information
Microcomputer scanning microprocessor chip, precise and reliable control
The equipment supports curve programming settings, allowing users to customize the parameters according to specific requirements.
