| Name | Single Beam UV-Visible Spectrophotometer |
| Code | scitek-0527 |
| Type | Standard |
| Brand | Scitek |
| Category | Spectrophotometer and Colorimeter |
| subcategory | UV-Vis Spectrophotometer |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Wavelength Range : 190-1100nm
Wavelength Accuracy : ±2nm
Wavelength Repeatability : ≤0.5nm
Size(W×D×H)(mm) : 370×320×240
UV Vis Spectrophotometer's 2nm bandwidth can meet most quantitative measurement needs.
SP-UV752 series single beam spectrophotometer combines the best features of single beam spectrophotometers. The wavelength is 190-1100 nm.
It is widely used in various fields such as pharmaceuticals, medical treatment as well as metallurgy, machinery, chemical industry, food, environmental protection, energy, geology and biology. It is a commonly used analytical instrument in physical, chemical and biological laboratories.
SP-UV752 series single beam spectrophotometer is your ideal spectrophotometer for teaching, research and production process.
Single beam UV VIS Spectrophotometer Specifications:
| Model | SP-UV752P | SP-UV752 |
|---|---|---|
| Optical System | Single Beam | |
| Light Source | Deuterium lamp, tungsten lamp | Hamamatzu deuterium lamp, osram halogen tungsten lamp |
| Optical System | 1200 line diffraction grating C-T monochromator | |
| Wavelength Range | 190-1100nm | |
| Bandwidth | 2nm | |
| Stray Light | ≤0.2%T | ≤0.1%T |
| Wavelength Accuracy | ±2nm | |
| Wavelength Repeatability | ≤0.5nm | |
| Photometric Accuracy | ±0.5%T | ±0.3%T |
| Photometric Repeatability | ±0.2%T | |
| Salability | 0% ≤0.2%T, 100% ≤0.5%T | |
| Transmittance Range | 0.0-199.9%T | |
| Absorbance Range | -0.3-2.999A | |
| Display | 4 digits LED | |
| Port | RS232 Serial Port | |
| Size(W×D×H)(mm) | 370×320×240 | |
| Shipping Size(W×D×H)(mm) | 450x420x310 | |
| N.W./G.W. (kg) | 7.5/12 | |
Single beam UV Visible Spectrophotometer Features:
SP-UV752/752P UV-visible spectrophotometer can set the wavelength manually or set the factor and directly read the absorbance, transmittance and concentration from 190nm to 1100nm. 2nm bandwidth can meet most quantitative measurement needs.
The main features of the UV visible spectrophotometer:
Precise optical design ensures stray light is less than 0.05% to meet the needs of high absorbance samples.
Built-in spectroscopy supports automatic wavelength detection and calibration of high wavelength accuracy.
The wavelength range covers 190nm to 1100nm, which can meet the needs of most spectrophotometric tests.
Imported high-quality deuterium lamp is fixed with flange. You only need to operate two screws to complete the deuterium lamp replacement.
Lightweight and small size
Details of Single Beam Spectrophotometer:

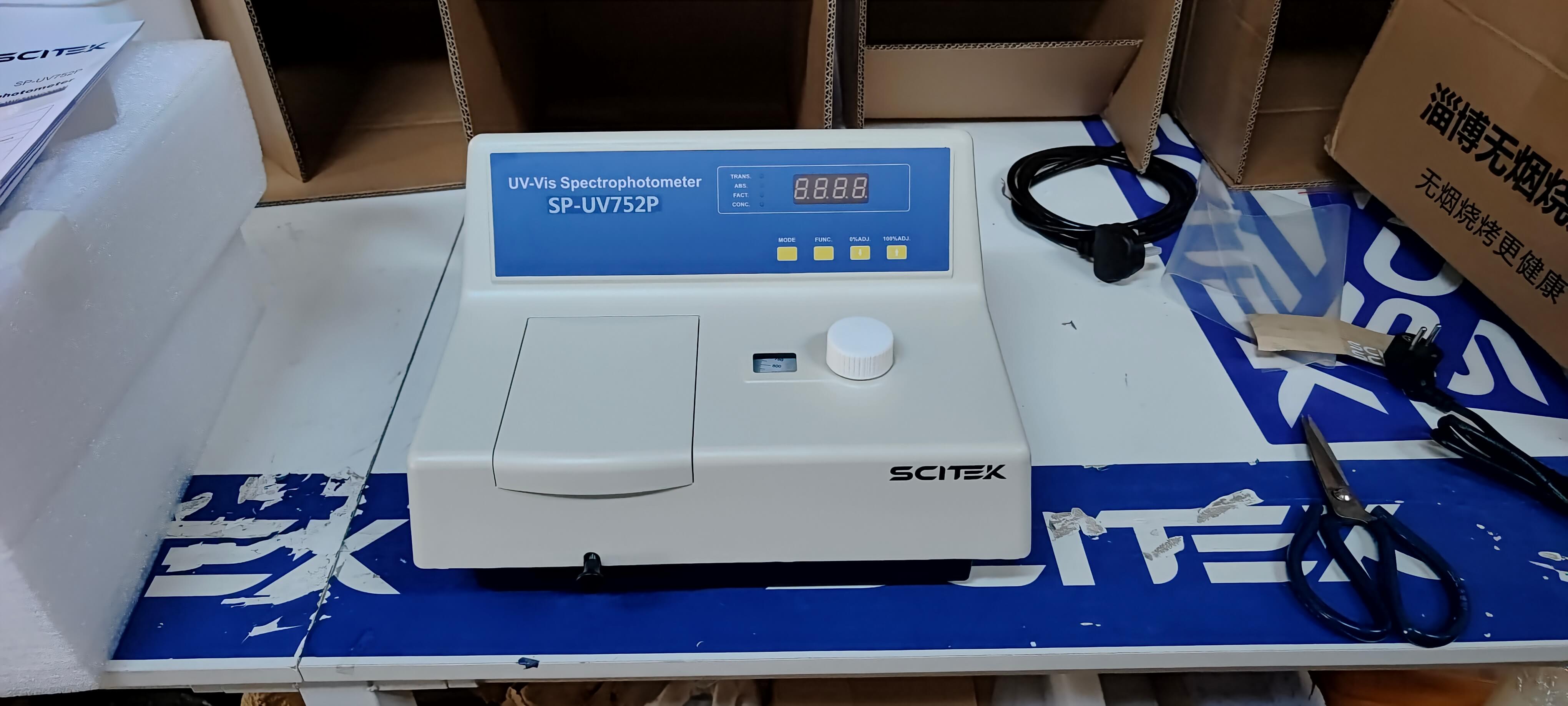

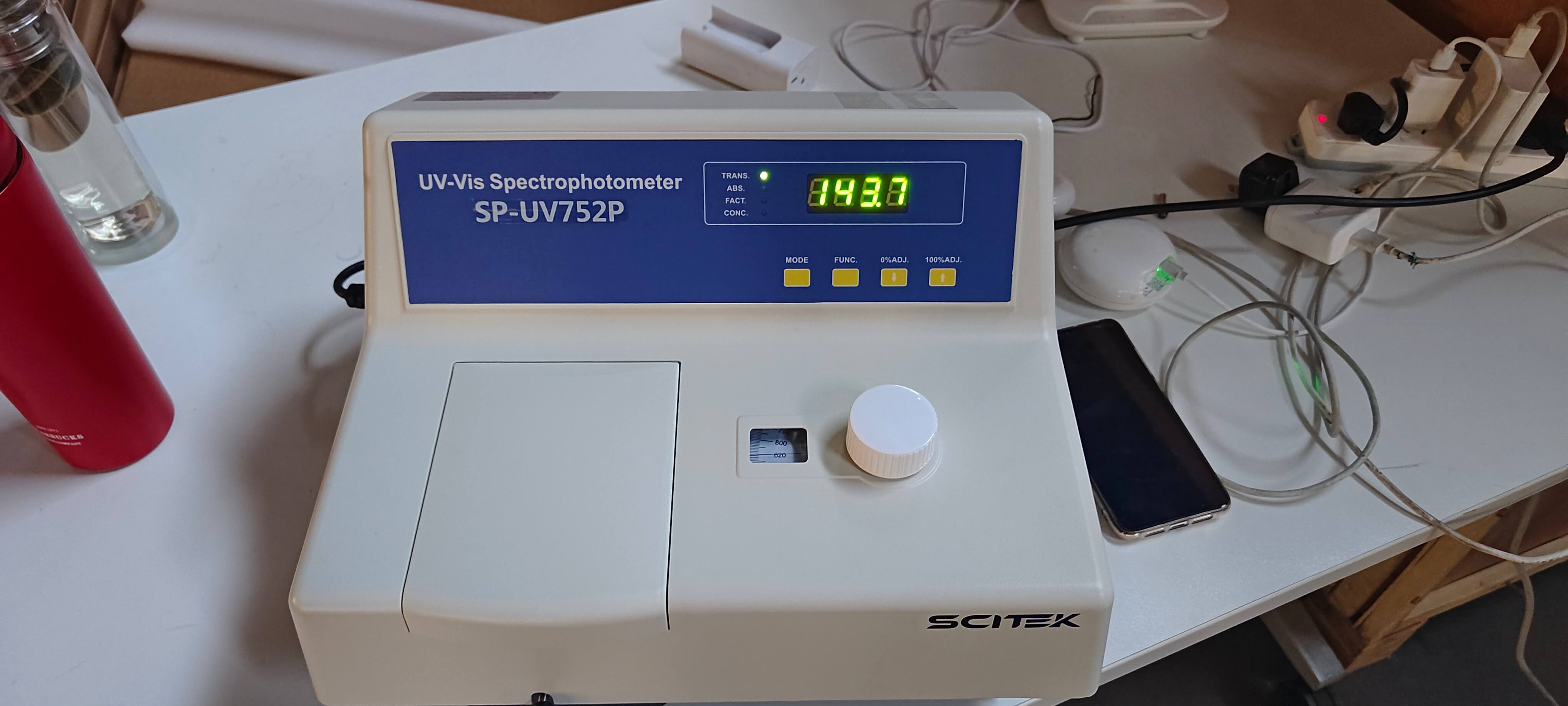

Front view of the SP-UV752P spectrophotometer showing its digital display and control panel.
The software comes standard with the single beam spectrophotometer.
Applications of Single beam spectrophotometers:
Single beam spectrophotometers determine the concentration of solutes in solution by comparing absorbance at a specific wavelength.
Single beam spectrophotometers are used in the pharmaceutical and food industries to ensure production quality.
It is also commonly used in clinical diagnostics, such as analyzing blood and urine.
It is used to detect and measure contaminants in water and air samples and enzyme activity or molecular structure in the laboratory.
Why Scitek
2 Year Limited Warranty
FDA and CE European Standards
