Self-pressurized Liquid Nitrogen Tank (biobase-0719) Products
| Name | Self-pressurized Liquid Nitrogen Tank |
| Code | biobase-0719 |
| Type | Standard |
| Brand | Biobase |
| Category | Other Lab Equipments |
| subcategory | Liquid Nitrogen Tank |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Product details for Invoice
Features:
Unique neck design, low evaporation loss rate;
Has a perfect safety structure;
stainless steel tank;
With casters for easy movement;
With protective operating ring;
With liquid level gauge for YDZ-200;
Optional liquid level gauge;
Optional low temperature regulator;
Optional low temperature solenoid valve;
Optional automatic rehydration function.
Unique neck design, low evaporation loss rate;
Has a perfect safety structure;
stainless steel tank;
With casters for easy movement;
With protective operating ring;
With liquid level gauge for YDZ-200;
Optional liquid level gauge;
Optional low temperature regulator;
Optional low temperature solenoid valve;
Optional automatic rehydration function.
Product Details

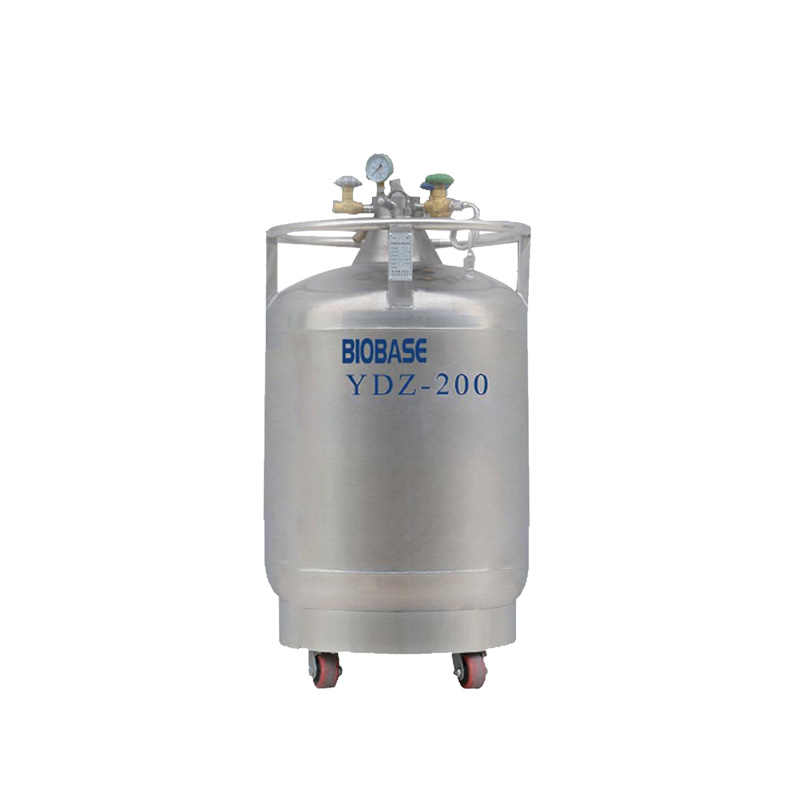

Self-pressurized Liquid Nitrogen Tank
Technical Parameters:
Model | YDZ-30 | YDZ-200 |
Capacity（L） | 30 | 200 |
Net Weight（kg） | 45 | 120 |
Caliber（mm） | 50 | 50 |
Height（mm） | 850 | 1310 |
Static Evaporation Rate（L/d) | 2.5 | 1.2 |
Outer Diameter（mm） | 450 | 650 |
Standard Working Pressure（Mpa） | 0.05 | 0.05 |
Maximum Working Pressure（Mpa） | 0.09 | 0.09 |
Primary Safety Valve Opening Pressure（Mpa） | 0.09
| 0.09
|
Second Safety Valve Opening Pressure（Mpa） | 0.15 | 0.15 |
Pressure Gauge Range（Mpa） | 0-0.25 | 0-0.25 |
