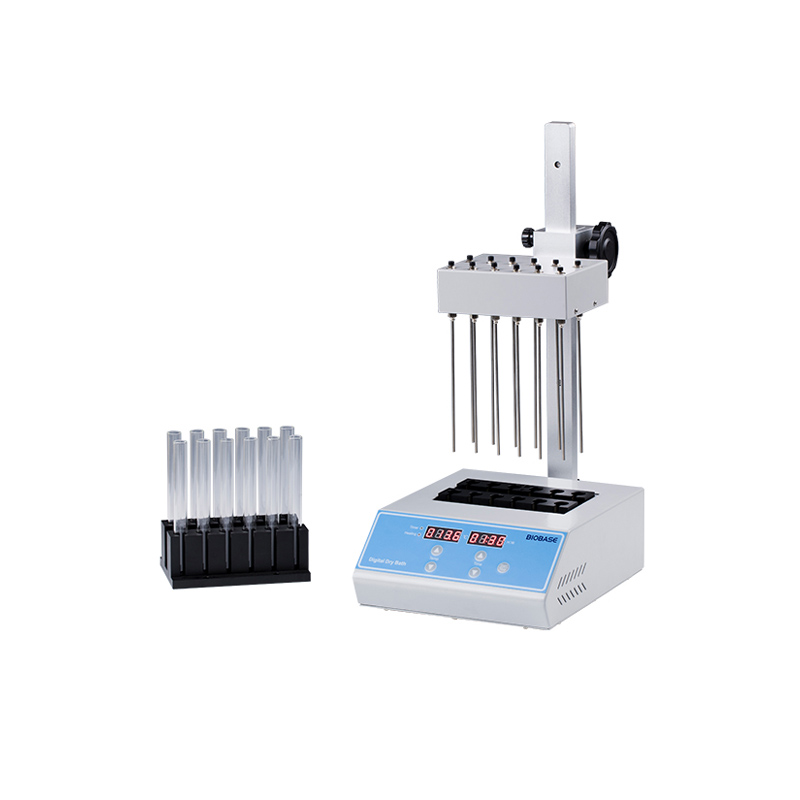

| Name | Sample Concentrator(visible) |
| Code | biobase-0539 |
| Type | Standard |
| Brand | Biobase |
| Category | Pre-Processing Of Bio-Samples |
| subcategory | Sample Concentration (Nitrogen Evaporator) |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
*High precision and wide range of temp control.
*Blowing a large number of samples at one time.
*Blowing each sample independently.
*Amount of airflow can be adjusted.
*With special slotting-design block, surface location of.
*Concentrated samples can be observed.
*Easy operation; safe and reliable to use.
Technical Parameters：
|
Model |
BK-SC400 |
| Temp.Control Range | RT.+5°C-160°C |
|
Temp. Uniformity |
≤±0.5°C |
|
Display Accuracy |
0.1°C |
|
Heating Time |
≤5min (from 25°C to 160°C) |
|
Nitrogen Flow Rate |
15L/min |
|
Nitrogen Rressure |
0.1 Mpa |
|
Max Power |
500W |
|
Dimension |
260*220*475mm |
|
Temp. Accuracy |
±0.5°C (@40°C) |
|
Temp. Accuracy |
±1°C (@120°C) |
|
Timing Range |
1min-99h59min/∞ |
|
Needle Length |
150mm |
|
Block Quantity |
1 |
|
Voltage |
220V, 50/60Hz;110V, 60Hz |
|
Packing Size(W*D*H) |
430*420*340mm |
|
Weight(Kg) |
7.3 |
|
Gross Weight(kg) |
10.0 |
Optional Blocks:
|
Type |
Diameter |
Depth |
Capacity |
|
B02 027 001 |
10.5mm |
50mm |
12 |
|
B02 027 002 |
12.5mm |
50mm |
12 |
|
B02 027 003 |
13.5mm |
50mm |
12 |
|
B02 027 004 |
15.5mm |
50mm |
12 |
|
B02 027 005 |
16.5mm |
50mm |
12 |
|
B02 027 006 |
19.5mm |
50mm |
12 |
|
B02 027 007 |
20.5mm |
50mm |
12 |
|
Choose one as a standard block. |
|||
