| Name | PP Spray Fume Hood FH1000PL FH1200PL FH1500PL FH1800PL |
| Code | biobase-0102 |
| Type | Standard |
| Brand | Biobase |
| Category | Air Protection Product |
| subcategory | Fume Hood |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |

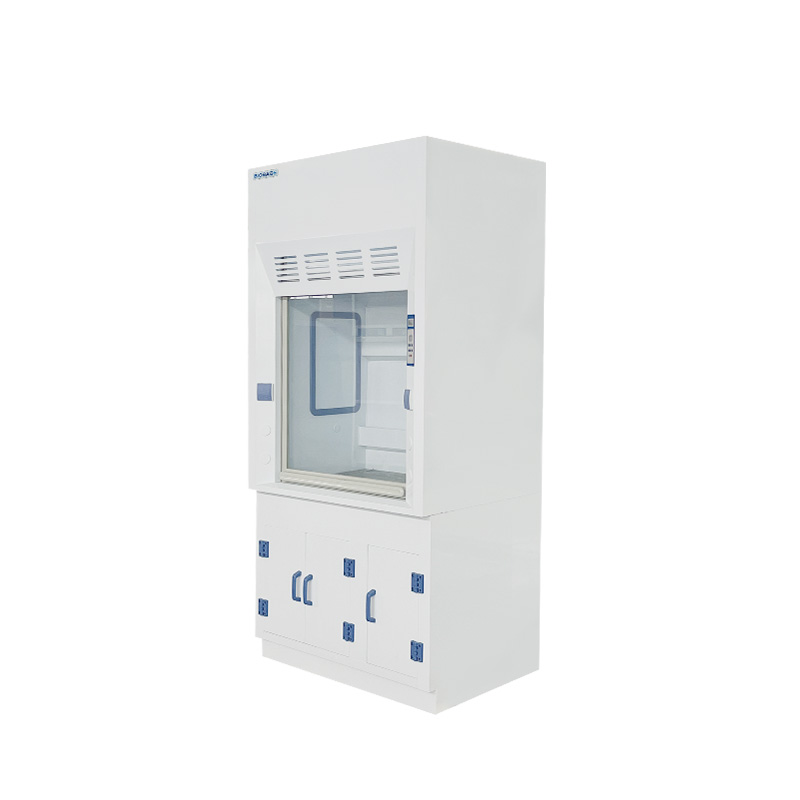

This style fume hood is a custom-made fume hood for perchloric acid. The alkaline water neutralization and circulation system behind the deflector of the fume hood is the primary neutralization system, and its function is to ensure that high concentrations of perchloric acid residues do not accumulate in the fume hood, thereby causing chemical reactions such as combustion, explosion or a lot of heat.
Features：
1. Made of PP material, integrally welded
2. Resistant to strong acid, alkali and strong corrosion
3. Solid core physical and chemical board, PP board, ceramic board and other countertop materials are optional
4. The inside of the deflector is equipped with a spray system, which can neutralize the acid gas in the exhaust gas and then discharge it
5. The control panel can control the lighting system, circuit system, and air volume adjustment system
6. Circulating water dilution system includes acid and alkali resistant circulating pump, water tank, water inlet and outlet structure, and complete circulating water circuit
Technical Parameters:
Model | FH1000PL | FH1200PL | FH1500PL | FH1800PL |
External Size(W*D*H) | 1047*800*1422mm | 1247*800*1422mm | 1547*800*1422mm | 1847*800*1422mm |
Internal Size(W*D*H) | 787*500*700mm | 987*500*700mm | 1287*500*700mm | 1587*500*700mm |
Work Surface Height | 820mm | |||
Max. Opening | 740mm | |||
Material | Main Body: Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion Work Table: Solid core physical and chemical board | |||
Airflow Velocity | 0.3~0.8m/s | |||
Exhaust Volume | 560m³/h | 700m³/h | 920m³/h | 1130m³/h |
Consumption | 400W+370W(Pump) | 500W+370W(Pump) | 700W+370W(Pump) | |
Waterproof Socket | Two, total load≤500W | |||
Noise | ≤68dB(A) | |||
Illumination | ≥400lx | |||
LED Lamp | 24W | 30W | 38W | |
Blower | Built-in PP centrifugal blower(2 blowers for FH1800(P) only), speed adjustable, 300W | |||
Front Window | Resistant to acid and alkali, manual, 5mm toughened glass, height adjustable | |||
Operators | 1~2 | 1~2 | 2~3 | 2~3 |
Standard Accessory | LED light Work table: Chemical resistant phenolic resin 4.3 meters PVC duct(2 pcs of 4.3 meters PVC dust for FH1800(P) only), Diameter: 250mm Pipe strap*2(4 pcs for FH1800(P) only) Base cabinet PP centrifugal blower*1(2 for FH1800(P) only) Waterproof socket*2 Water tap(PP) Gas tap(PP) Water sink | |||
Optional Accessory | PP work table, epoxy resin board or ceramic board UV lamp Electric glass door | |||
Power Supply | 220V, 50/60Hz(Standard); 110V, 60Hz(Optional) | |||
Package Size(W*D*H) | Main Body: 1188*938*1690mm Base Cabinet: 1188*888*1000mm | Main Body: 1388*938*1690mm Base Cabinet: 1388*888*1000mm | Main Body: 1688*938*1690mm Base Cabinet: 1688*888*1000mm | Main Body: 1988*938*1690mm Base Cabinet: 1988*888*1000mm |
Gross Weight | 227kg | 255kg | 295kg | 346kg |
