| Name | PP Fume Hood |
| Code | scitek-0100 |
| Type | Standard |
| Brand | Scitek |
| Category | Laboratory Ventilation |
| subcategory | PP Fume Hood |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Work Surface Height : 820mm
Max Opening : 740mm
Air Velocity : 0.3~0.8m/s
Noise : ≤68dB
Exhaust Duct : 4.3 meters, φ250mm
Polypropylene fume hood is suitable for experiments with strong acids, strong bases, strong corrosive substances and volatile substances.
PP fume hood is suitable for the experiment of strong acid, strong alkali, strong corrosion and volatility. It can effectively protect the operator from inhaling toxic gases and protect the operator and sample safety. And dramatically reduces the risk of fire and explosion. The environment can also be protected by installing appropriate filters.
PP Fume Hood Specifications:
| Model | FMH-1000DP | FMH-1200DP | FMH-1500DP | FMH-1800DP | |
|---|---|---|---|---|---|
| External Size (WxDxH)(mm) | 1047x800x2450 | 1247x800x2450 | 1547x800x2450 | 1847x800x2450 | |
| Internal Size (WxDxH)(mm) | 787x560x700 | 987x560x700 | 1287x560x700 | 1587x560x700 | |
| Work Surface Height | 820mm | ||||
| Max Opening | 740mm | ||||
| Air Velocity | 0.3~0.8m/s | ||||
| Noise | ≤68dB | ||||
| Exhaust Duct | 4.3 meters, φ250mm | ||||
| LED Lamp | 12W x2 | 12W x2 | 22W x2 | 18W x2 | |
| Blower | Built-in PP centrifugal blower (2 blowers for FMH-1800DP only); Speed adjustable | ||||
| Front Window | Resistant to acid and alkali, Manual, 5mm toughened glass, height adjustable. | ||||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz (Optional) | ||||
| Consumption | 400W | 400W | 500W | 700W | |
| Material | Main Body | Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion. | |||

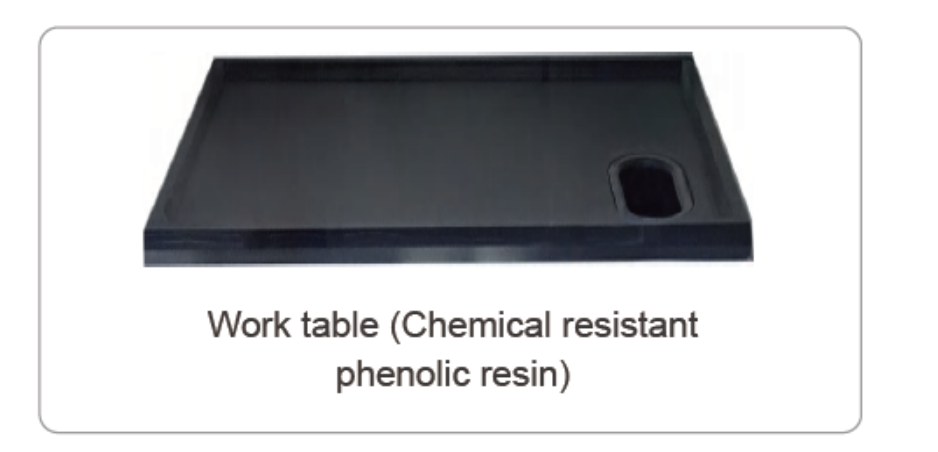

| Work Table | Chemical resistant phenolic resin | ||||

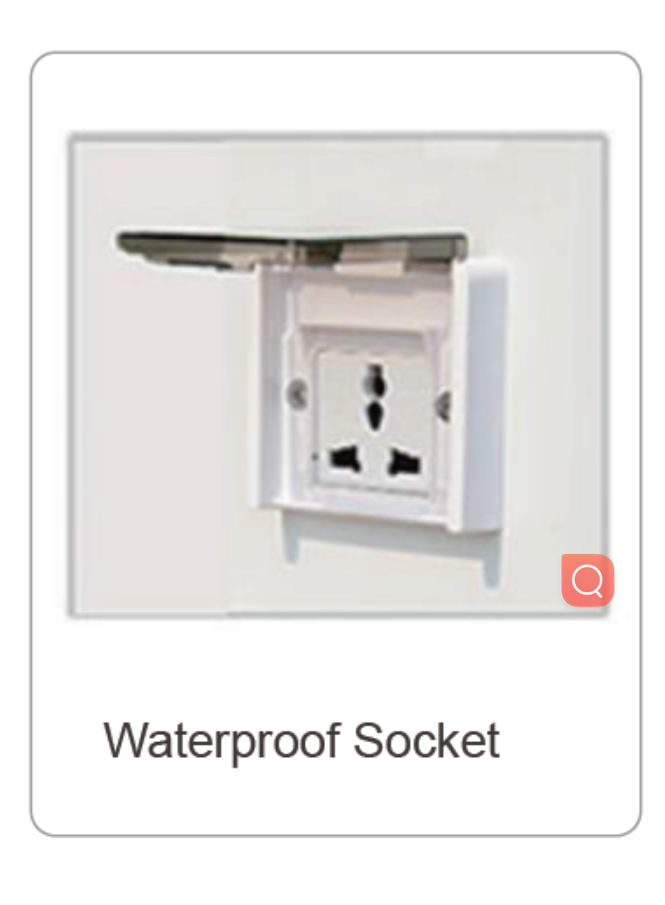

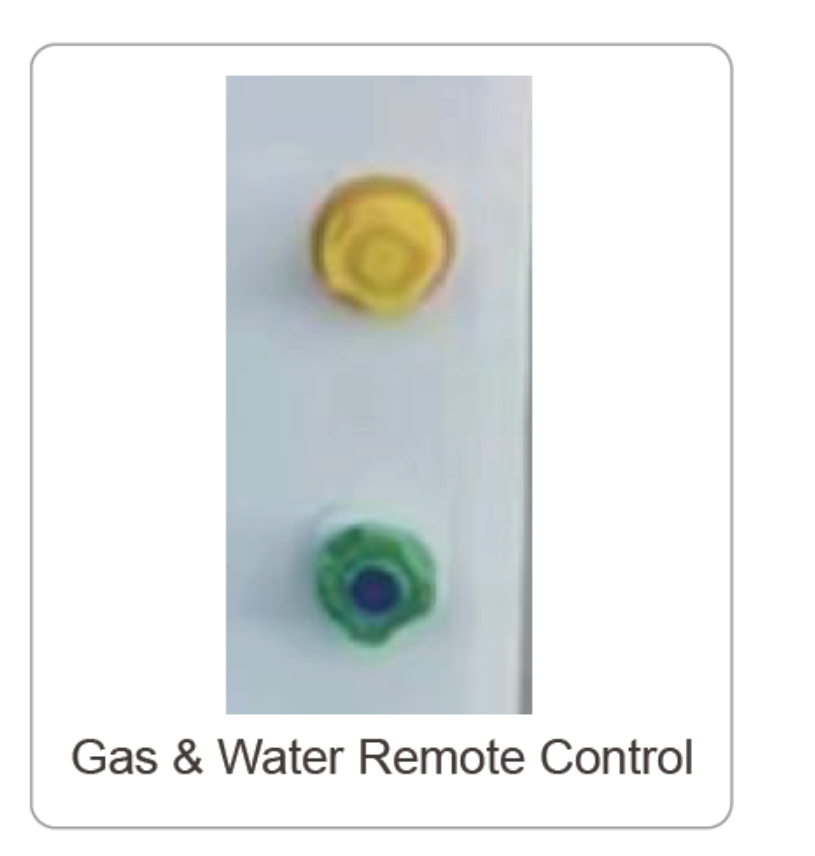

| Standard Accessory | LED light; Work table: Chemical resistant phenolic resin; Base cabinet; Waterproof socket x2; Water tap (PP); Gas tap (PP); Gas & Water remote control; Water Sink; PP centrifugal blower x1 (2 for FMH-1800DP only) 10m PVC aluminum foil composite exhaust duct, Diameter: 250mm; (2 pcs of 10m PVC aluminum foil composite exhaust duct for FMH-1800DP only), (Duct is retractable and can be cut freely） | ||||
| Optional Accessory | PP work table, epoxy resin board, ceramic board or solid core physical and chemical board; Active carbon filter; Outer PP centrifugal blower x1 (only need to select when the duct more than 4.3m, 2pcs blower for FMH-1800DP only) | ||||
| Gross Weight | Main Body | 137kg | 155kg | 180kg | 206kg |
| Base Cabinet | 89kg | 99kg | 114kg | 140kg | |
| Package Size (WxDxH)(mm) | Main Body | 1188x938x1612 | 1388x938x1612 | 1688x938x1612 | 1988x938x1612 |
| Base Cabinet | 1188x888x1000 | 1388x888x1000 | 1688x888x1000 | 1988x888x1000 | |
| Shipping Volume (m3) | 2.9 | 3.4 | 4.1 | 4.8 | |
PP Fume Hood Features:
The mainframe is made of PP (polypropylene) material, integrally welded.
Resistant to strong acid, alkali and strong corrosion.

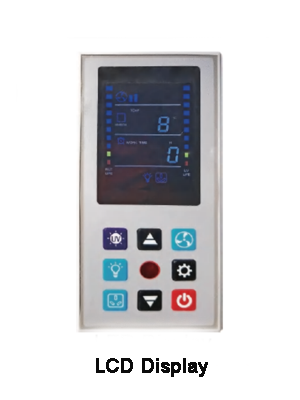

Microprocessor control system, LCD display.

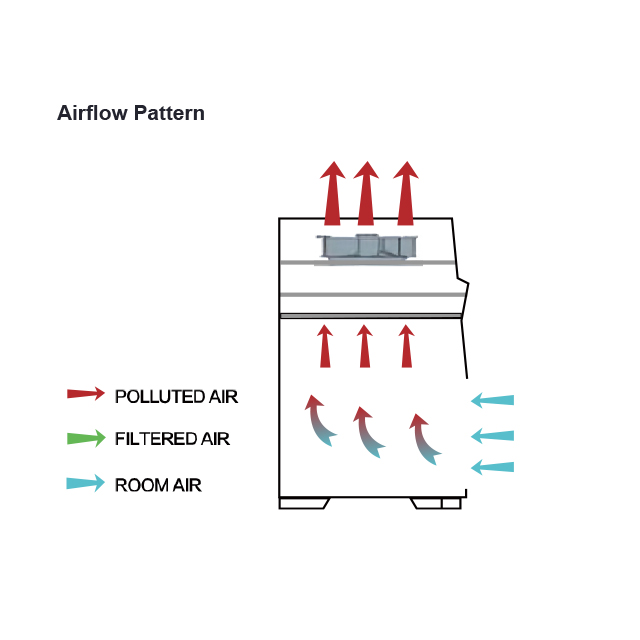

The top adopts a top-shield suction design, and the deflector is made of homogeneous PP material, which has strong acid and alkali resistance.
No airflow dead angle, and the maximum exhaust gas capture performance can be obtained.
The operating surface is equipped with water-retaining and anti-overflow treatment.
Polypropylene Fume Hood Detail
