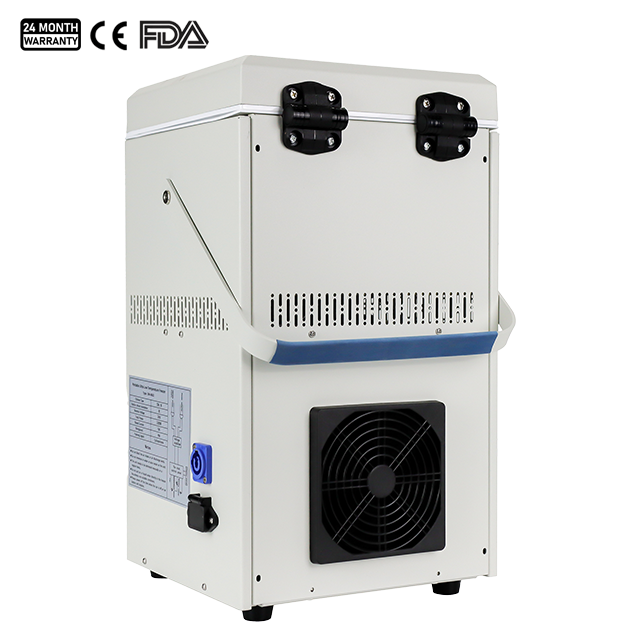

| Name | Portable Ultra-low Temperature Freezer |
| Code | scitek-0497 |
| Type | Standard |
| Brand | Scitek |
| Category | Cold Storage Products |
| subcategory | Medical Cooler Box |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Cooling Engine : Free Piston Stirling Cooler
Refrigerant : Helium (He)
Heat Transport System : Gravity Driven Thermosiphon Direct Cooling
External Sizes(W×D×H)(mm) : 616x392x455 245x246x450
The portable ultra-low temperature freezer employs military-grade Stirling refrigeration technology, functioning as a mobile, small-scale cold storage unit.
Portable Ultra-low Temperature Freezer Specifications:

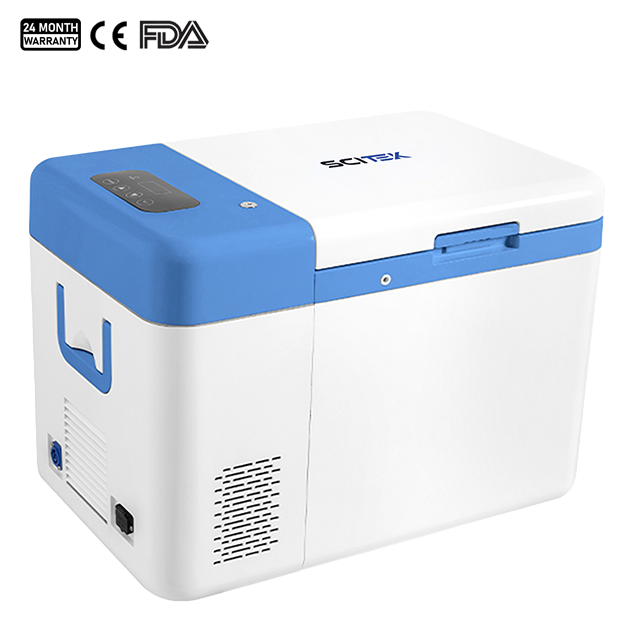

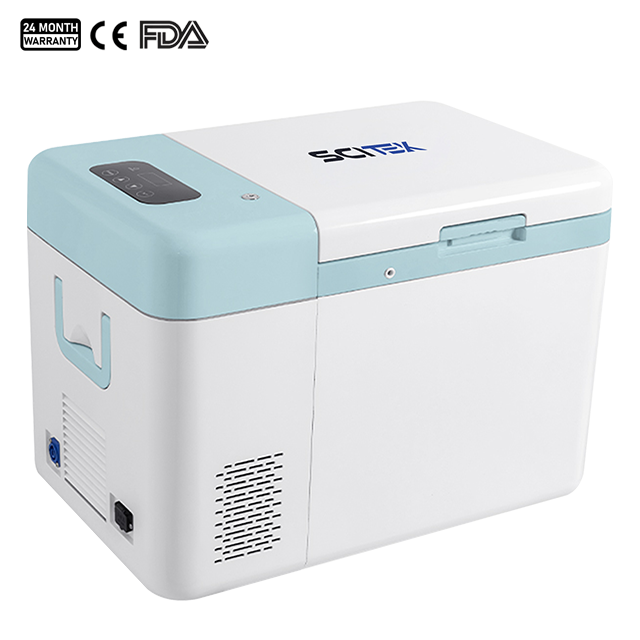

| Model | FZ-45P25 | FZ-60P25 | UFZ-86P25 | UFZ-86P02 |
|---|---|---|---|---|
| Storage Capacity | 25L | 25L | 25L | 2L |
| Cooling Engine | Free Piston Stirling Cooler | |||
| Refrigerant | Helium (He) | |||
| Heat Transport System | Gravity Driven Thermosiphon | Direct Cooling | ||
| Temperature Range | 18℃ to -45℃ | 18℃ to -60℃ | 18℃ to -86℃ | 18℃ to -86℃ |
| Performance Data | Take 1.5 hours from 25℃ to -45℃ | Take 2.5 hours from 25℃ to -60℃ | Take 3.5 hours from 25℃ to -80℃ | Take 2 hours from 25℃ to -120℃ |
| Ambient temperature is 25°C; Empty Cabinet | ||||
| Environmental Condition | Non-corrosive, Non-flammable, Non-explosive, Altitude up to 2000m (Temperature 5°C to 35°C, maximum relative humidity 80%) | |||
| Temperature Control Capability | Target temperature ±1°C | Target temperature ±1°C | Target temperature ±2°C | Target temperature ±1°C |
| Stable State Energy Consumption | 30W | 40W | 75W | 70W |
| Ambient temperature is 25°C | ||||
| Insulation | High performance vacuum insulated panels, polyurethane foam | High performance polyurethane foam | ||
| Insulation Layer Inner Liner Material | Food-grade sus304 | |||
| Noise | ＜50dB | ＜55dB | ||
| Control Sensor | One RTD(PT100 Class B), precision±0.3 | |||
| Security | Lockable Lid | |||
| Warm and Cold Alarms | Setpoint ±10°C | |||
| Defrost Method | Manual | |||

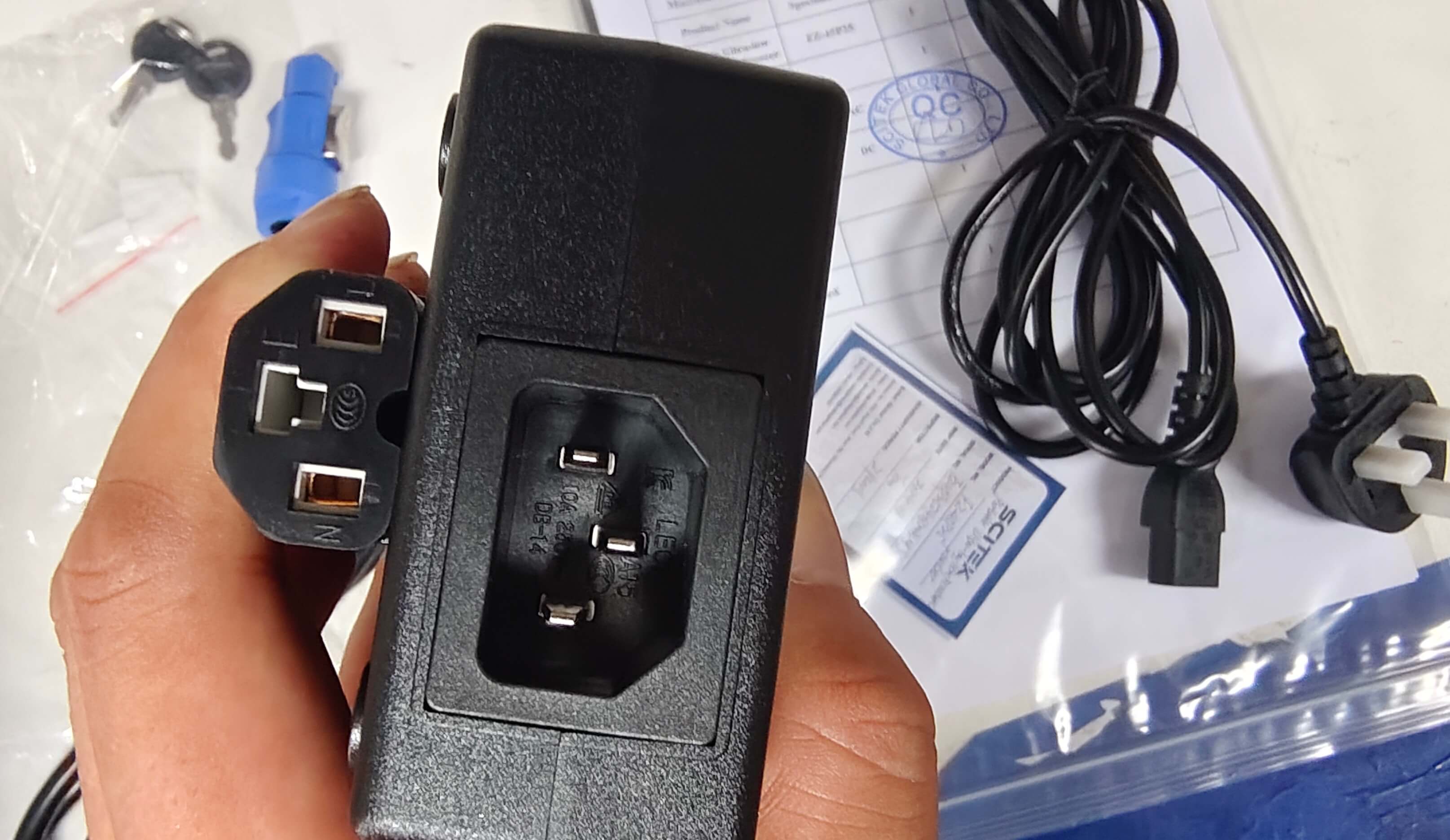

| Electric Power | 100V AC to 240V AC; 50Hz, 60Hz; 12V DC to 24V DC | |||
| Internal Size (W×D×H)(mm) | 300×250×300 | 160×160×80 | ||
| External Size (W×D×H)(mm) | 616×392×455 | 245×246×450 | ||
| Shipping Size (W×D×H)(mm) | 710×480×530 | 390×400×550 | ||
| N.W./G.W. (kg) | 17.5/21 | 11/16 | ||
Portable Ultra-low Temperature Freezer Features:
Wide temperature range application (from 25°C to -86°C )
Precision temperature control
Uniform internal temperature (temperature difference at various points within ±1°C)
High efficiency and energy saving
Compatible with multiple power sources
Easy to operate and maintain
Compact and lightweight (19 kg)
Uses 100% natural refrigerants, supporting sustainable and environmentally friendly operation
Application of Portable Ultra-low Temperature Freezer:
The portable ultra-low freezer utilizes military-grade Stirling refrigeration technology and serves as a movable small-scale cold storage unit. This product is dedicated to laboratory ultra-low temperature storage and transport, industrial extreme environment simulation testing, pharmaceutical cold chain transport, biological sample storage, life sciences cold chain logistics, clinical medical support, outdoor camping, and high-end ingredient freshness preservation.
Details of Portable Ultra-low Temperature Freezer:

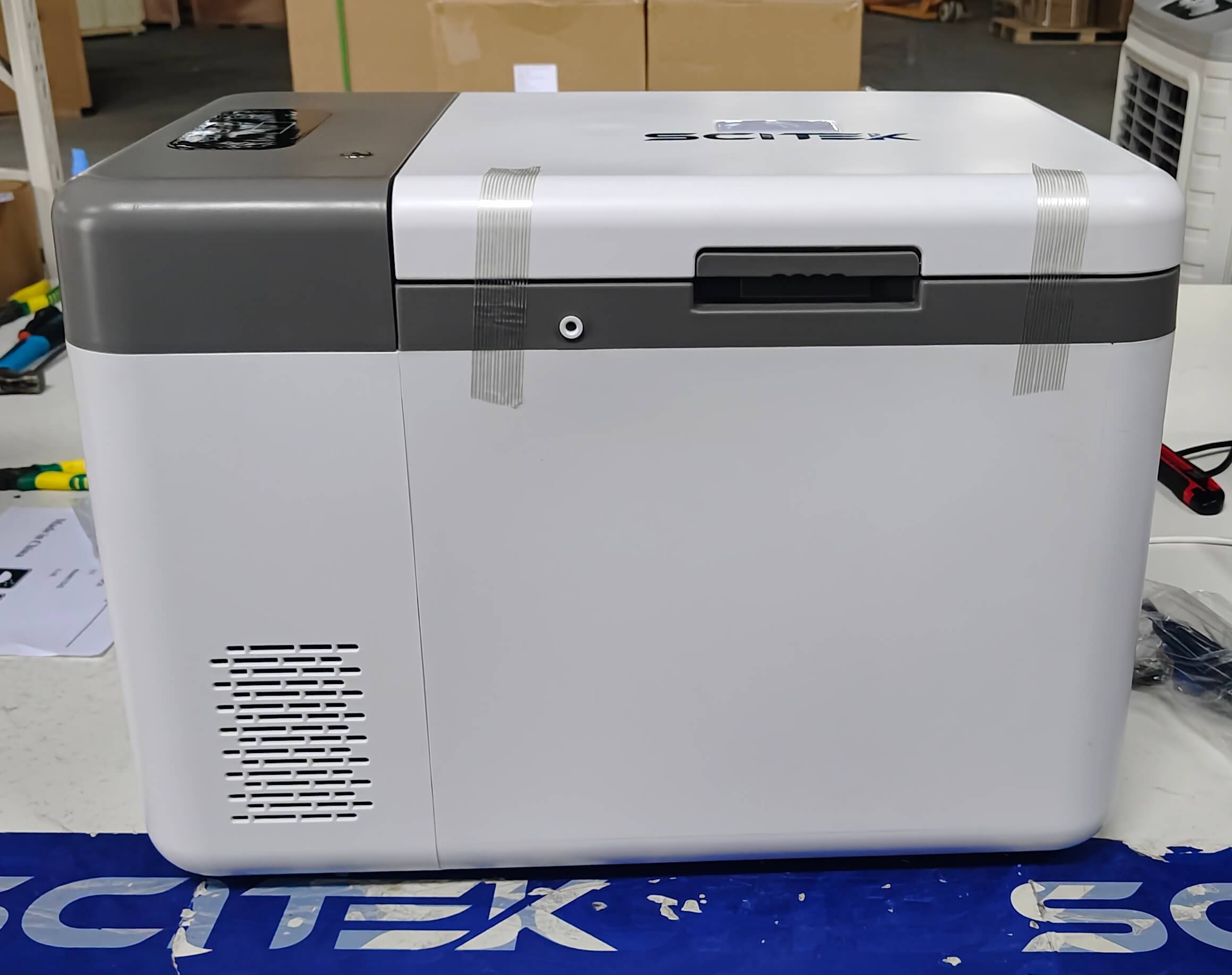

Portable cooler with simple and generous design, the overall appearance of high-strength plastic, with impact resistance and scratch-resistant characteristics, suitable for outdoor use.

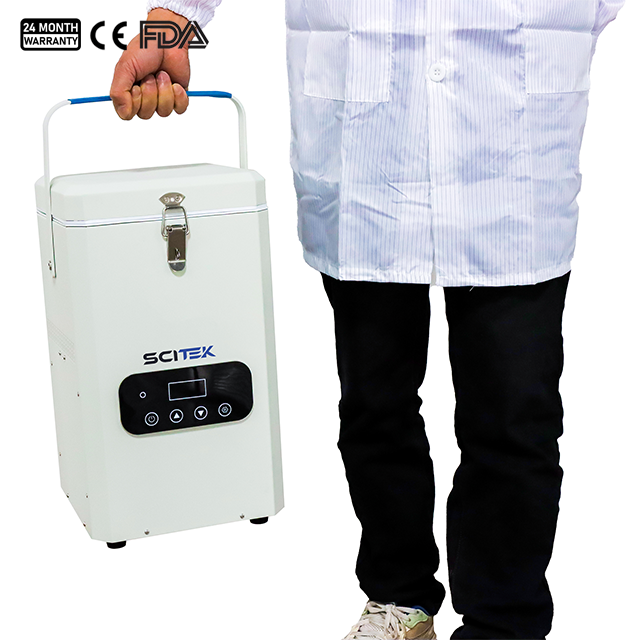

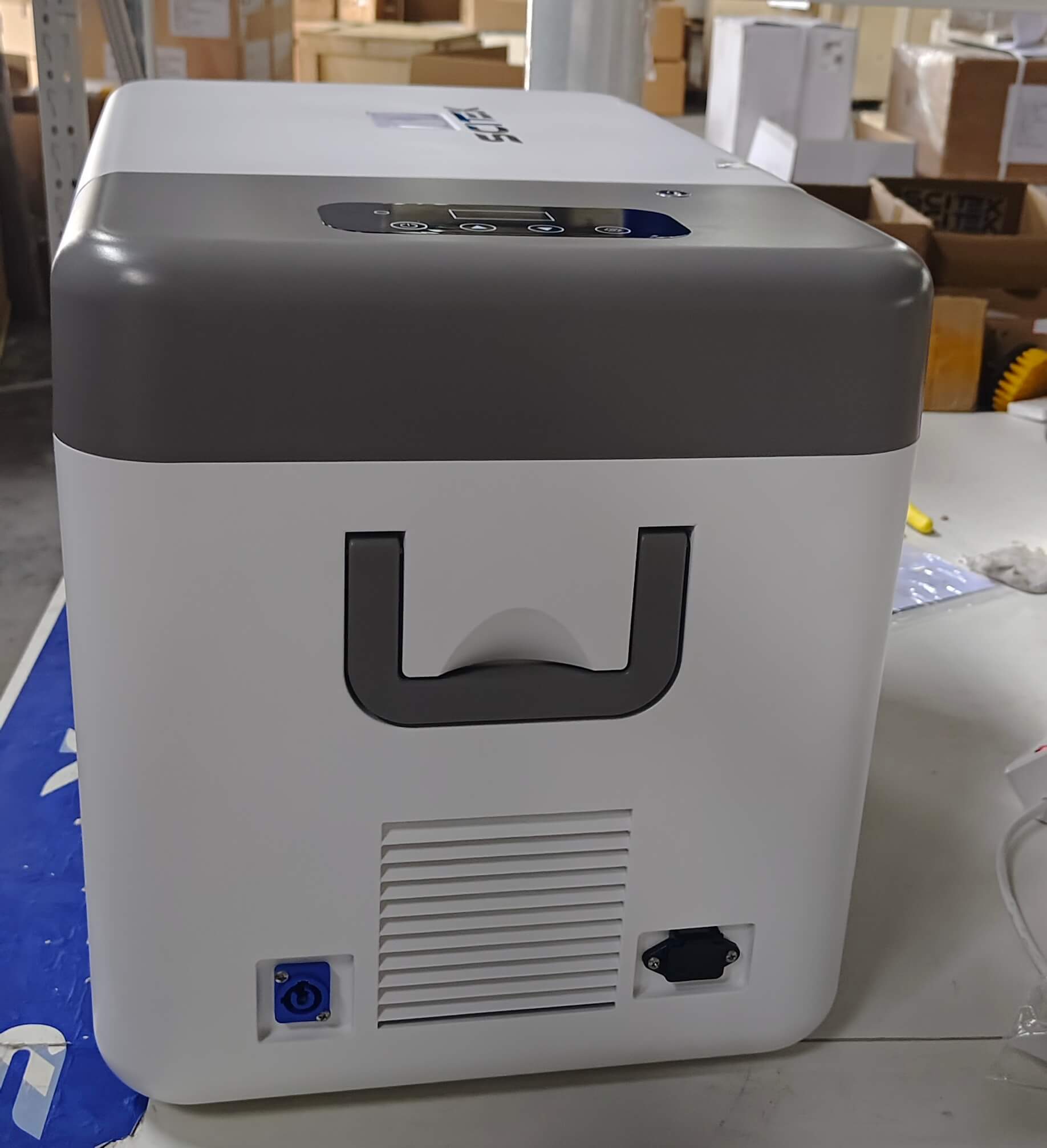

Lightweight and with a sturdy handle, this cooler is easy to carry around and is especially good for outdoor travel, camping or long drives.

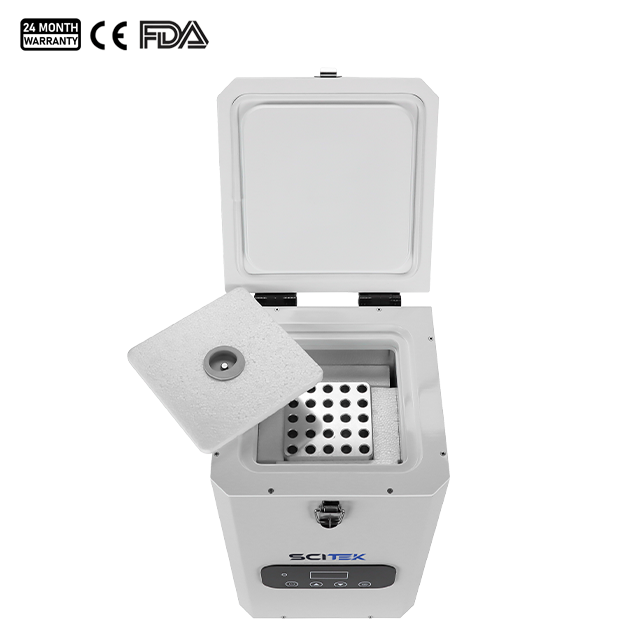

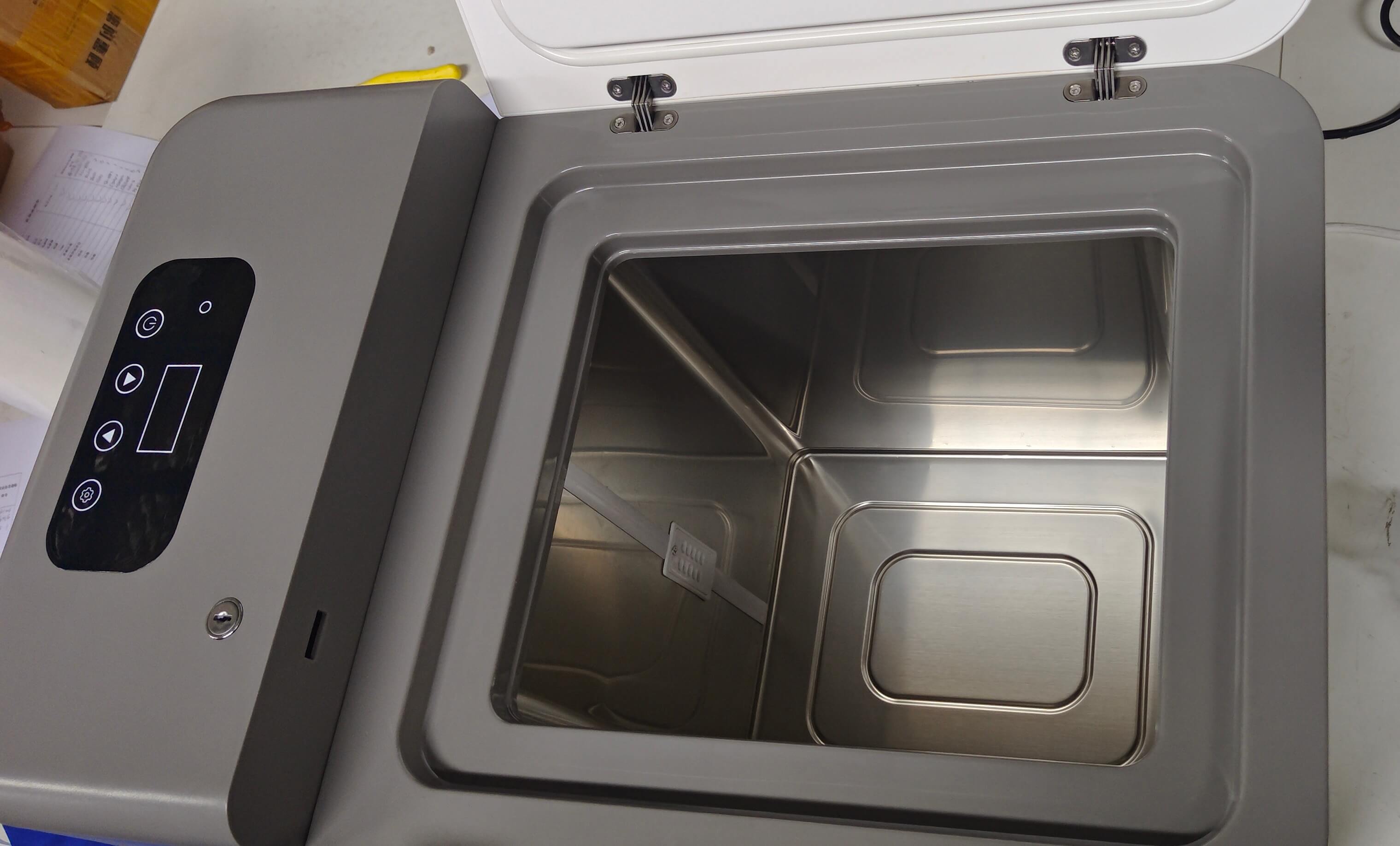

Upon opening the lid, you can see that the interior is made of food-grade quality materials that are smooth and easy to clean, ensuring the safety and hygiene of stored items.
