Pilot Freeze Dryer for Liquid and Solid Samples (scitek-0299) Products
| Name | Pilot Freeze Dryer for Liquid and Solid Samples |
| Code | scitek-0299 |
| Type | Standard |
| Brand | Scitek |
| Category | Freeze Dryer |
| subcategory | Pilot Freeze Dryer for Liquid and Solid Samples |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Product details for Invoice

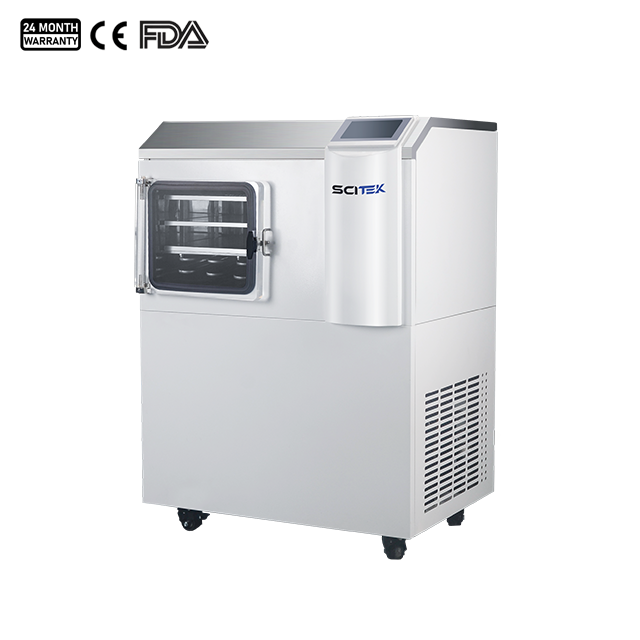

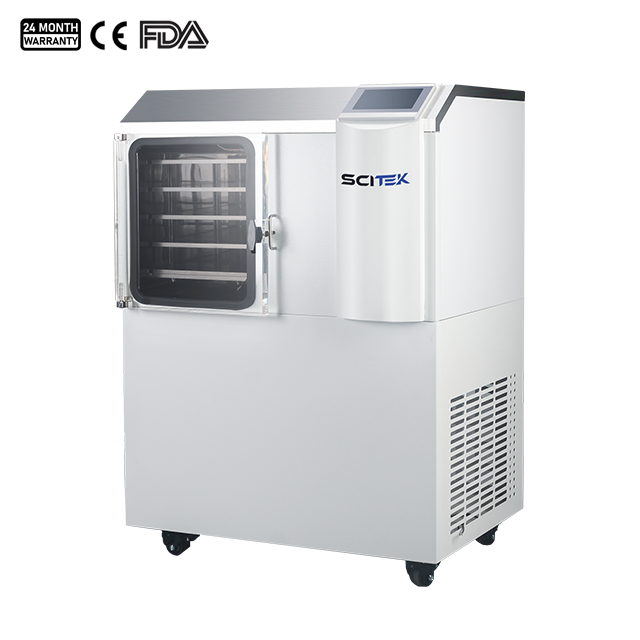

Model : FD-P3S; FD-P4S; FD-P5S
Freeze Drying Area (m2) : 0.24; 0.36; 0.48
Tray Size(mm) : 300x400
Minimum Cold Trap Temperature(℃) : -65℃
Shelf Temperature(℃) : -50~60℃
Size(W×D×H)(mm) : 980x790x1280; 980x890x1380; 1480x1080x1580
The Freeze Dryer's operating system offers flexibility and convenience through an easy-to-use touch screen display.
Freeze Drying Area (m2) : 0.24; 0.36; 0.48
Tray Size(mm) : 300x400
Minimum Cold Trap Temperature(℃) : -65℃
Shelf Temperature(℃) : -50~60℃
Size(W×D×H)(mm) : 980x790x1280; 980x890x1380; 1480x1080x1580
The Freeze Dryer's operating system offers flexibility and convenience through an easy-to-use touch screen display.
Product Details
Point Freeze Dryer Specifications:
| Model | FD-P3S | FD-P4S | FD-P5S | |
|---|---|---|---|---|
| Freeze-drying Area(m2) | 0.24 | 0.36 | 0.48 | |
| Cold Trap Water Capture Capacity(kg) | 2 | 3 | 5 | |
| Tray Size(mm) | 300x400 | |||
| Tray Quantity | 2+1(temperature compensation board) | 3+1(temperature compensation board) | 4+1 (temperature compensation board) | |
| Minimum Cold Trap Temperature(℃) | -65℃ | |||
| Shelf Temperature(℃) | -50~60℃ | |||
| Vacuum Degree(Pa) | ≤1Pa | |||
| Number of Penicillin Bottles That Can be Placed (For Reference Only) | 16mm/2ml | 1600 | 2400 | 3200 |
| 22mm/5ml | 700 | 1050 | 1400 | |
| 22mm/7ml | 500 | 1000 | 1500 | |
| Vacuum Pump | Standard | |||
| Power Supply | AC220V, 50/60Hz | |||
| Consumption(W) | 2600 | 3300 | 3500 | |
| Shipping Size(W×D×H)(mm) | Main machine: 980x790x1280; Vacuum pump: 550x190x310 | Main machine: 980x890x1380; Vacuum pump: 550x190x310 | Main machine: 1480x1080x1580; Vacuum pump: 650x300x420 | |
| G.W. (kg)(Including Vacuum Pump) | 250 | 270 | 310 | |
FD-PS series can be used for both liquid and solid samples, and all operations can be carried out inside the chamber. Based on the set temperature, time, and vacuum pressure, the sample can be pre-frozen in situ, with temperature probes on each shelf. The transparent organic glass cold trap door allows observation of the ice formation inside the cold trap. Quick hot gas defrosting can be selected, with shelf temperatures ranging from 50°C to +60°C. The effective shelf area ranges from 0.1 to 0.48m2.
Freeze Dryer Features:
Microcomputer control and touch screen
Remote control via mobile phone and computer
Internationally renowned compressor
Acrylic transparent door
Standard vacuum control function
Adjustable heating and cooling speed
