| Name | Online Homogenizer |
| Code | biobase-0568 |
| Type | Standard |
| Brand | Biobase |
| Category | Liquid Processing Instruments |
| subcategory | Homogenizer |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |

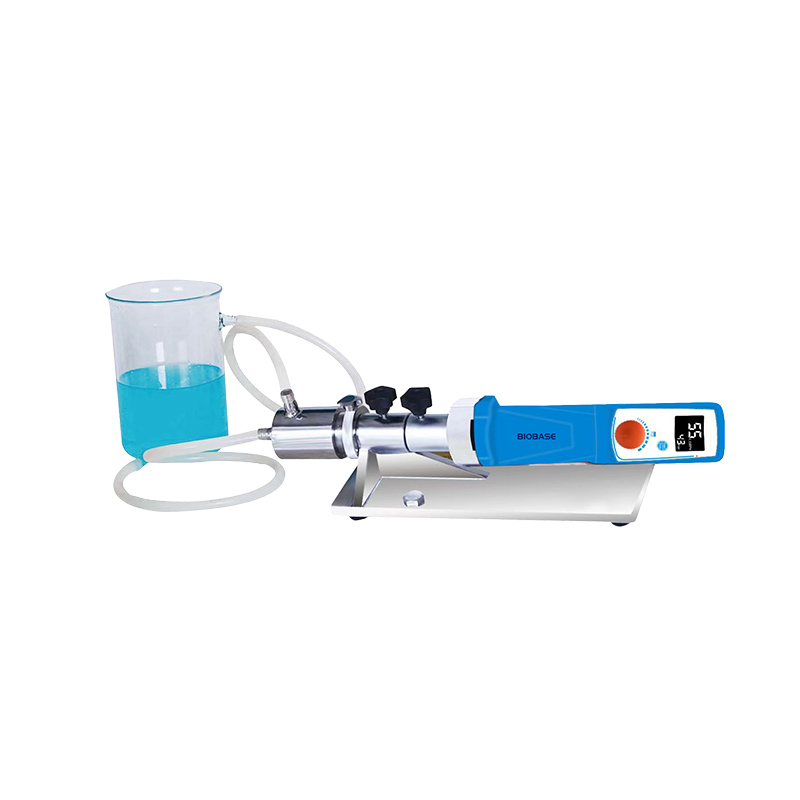

Online Homogenizer has high mixing efficiency, light weight, modular structure, easy operation and long-term operation. It can make 100% of the material pass through the shear cavity, with high efficiency and homogenization without dead angles. It can easily meet the requirements of laboratory simulation of online working conditions for circulation or online continuous processing. Applicable process: Laboratory online processing, which can circulate materials and complete online dispersion, emulsification, homogenization and mixing.
Features：
1. Brushless high-speed motor, long life design, can run stably for a long time.
2. The working head and machine base are made of stainless steel, which is corrosion-resistant.
3. Better sealing effect, unique stator and rotor structure, produce super strong shear force, quickly reduce particle size, process materials more finely and disperse more evenly.
Technical Parameters：
Model | BK-OH25 | BK-OH25D |
Item No. | 1004027001 | 1004028001 |
Motor Power | 1250W | 750W |
Motor Type | Brushless DC motor | |
Speed Range | 7500~30000rpm | 4000~26000rpm |
Adjustment Method | Gear adjustment | Knob speed control |
Speed Display | Scale display | Digital display |
Stirring Amount(H20) | 1~30L/min | 1~20L/min |
Maximum Processing Viscosity | 10000CP | 10000CP |
Standard Working Head | 25DG | 20DG |
Standard Working Chamber | Stainless steel unjacketed working chamber | |
Contact Material | SUS316L | |
Mechanical Seal Material | SiC | |
Inlet&Outlet Outer Diameter | 12(hose interface) | |
Outer Size | 460*120*120mm | 460*120*120mm |
Power Supply | Standard: 220V, 50/60Hz; Optional: 110V, 50/60Hz | Standard: 220V, 50/60Hz; Optional: 110V, 50/60Hz(The power will decrease) |
Packing Size | 600*300*300mm | |
Gross Weight | 10kg | |
