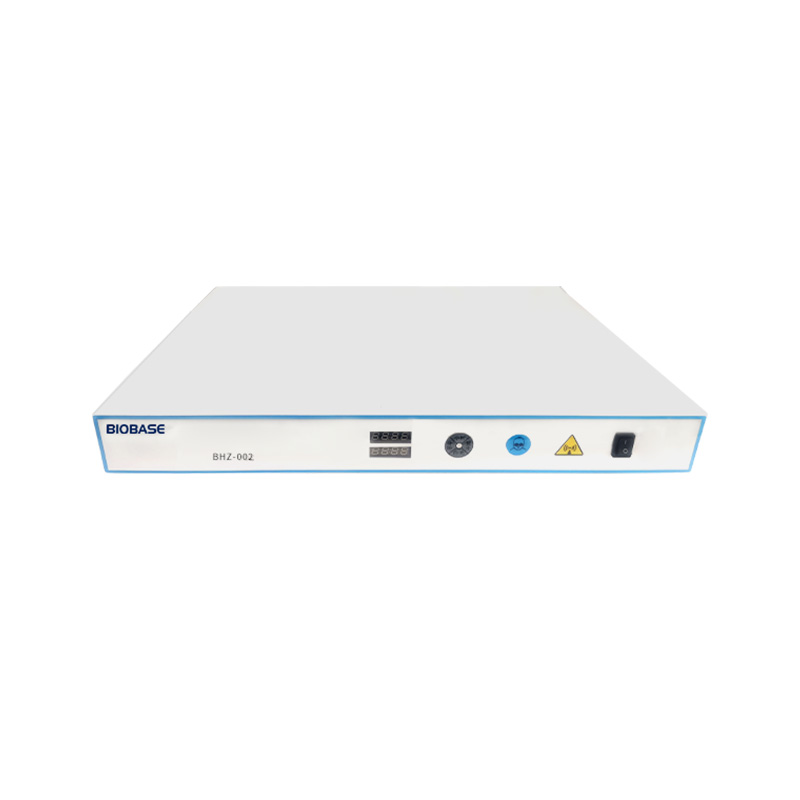

| Name | Neonatal Jaundice Therapy Apparatus BHZ-001 BHZ-002 |
| Code | biobase-0858 |
| Type | Standard |
| Brand | Biobase |
| Category | New Products |
| subcategory | New Products |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Mode selection: There are two modes of white light and blue light, with blue light and white light switch function. with single timing, cumulative timing, countdown function. Light source: LED blue light source, produce natural soft blue light. Provide high strength cold light source to light treatment, prevent heat conduction effects on children.
Features:
BHZ-001:
1. The adjustable range of the irradiation angle for the mobile jaundice treatment lamp box should be from 0°to 90°, with free adjustment up and down.
2. Square lift guide, guide to prevent left and right rotation at the same time.
BHZ-002:
1. It can be fixed to the top of the incubator by the bottom suction cup.
Technical Parameters:
Model | BHZ-001 | BHZ-002 |
Light Source | LED | |
Dominant Wavelength of Blue Light (nm) | 425~475 | |
Lifetime of the LED | 5000h | |
Product Service Life | 6 years | |
Radiation Therapy Distance(mm) | Distance light box 450 | Distance light box 450 |
Phototherapy Effective Surface Area(mm) | 300*200 | |
The Total lrradiance for Maximum Bilirubin on the Effective Surface Area | 5.2mW/cm2±0.5mW/cm2 | 2.4mW/cm2+0.3mW/cm2 |
The Total lrradiance on the Effective Surface Area? | ≥2.5mW/cm2 | ≥1.0mW/cm2 |
Average Value of the Total lrradiance for Bilirubin | 4.0mW/cm2±0.5mW/cm2 | 1.5mW/cm2±0.5mW/cm2 |
Uniformity of the Total lrradiance for Bilirubin | >0.4 | |
Noise | ≤45dB(A)[ Ambient noise ≤35dB(A)] | |
Light Box lrradiation Angle Adjustment Range | 0~90° adjusted up and down | |
Light Box Height Adjustment Range(mm) | 1350~1650 | |
Display Timer Range | 0~9999 hours 59 minutes | |
Ambient Air Movement Rate(m/s) | <0.3 | |
Working Temp. | 28~34℃ | |
Working Relative Humidity | 30%~75% | |
Working Atmospheric Pressure | 800~1060hPa | |
Overvoltage Category | II | |
Pollution Grade | 2 | |
Waterproofing Grade | IPXO | |
Application Environment Elevation(m) | ≤2000 | |
Power Supply | AC220V+10%, 50Hz; 110V+10%, 60Hz; 30VA | |
External Size(W*D*H) mm | 705*620*1350~1660 | 470*320*55 |
Packing Size(W*D*H) mm | 750*710*1250 | 615*415*180 |
Net Weight(kg) | 15 | 1.64 |
Gross Weight(kg) | 30 | 2.1 |
