scitek-0388 - Multi-row Electronic Control Heating Mantle

Multi-row Electronic Control Heating Mantle (scitek-0388) Products

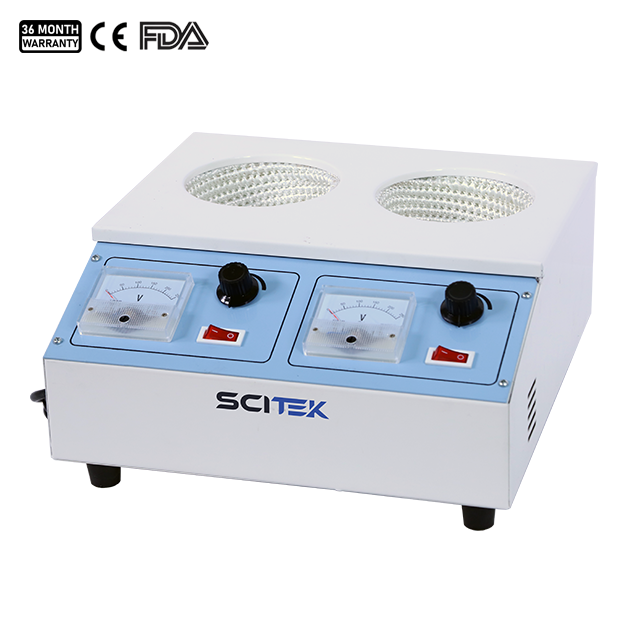

scitek/lmBpjKpolqSRkkqpojmkjp-MHE-S-100mlx2-MHE-S-250mlx2MHE-S-500mlx2-MHE-S-1000mlx2.png

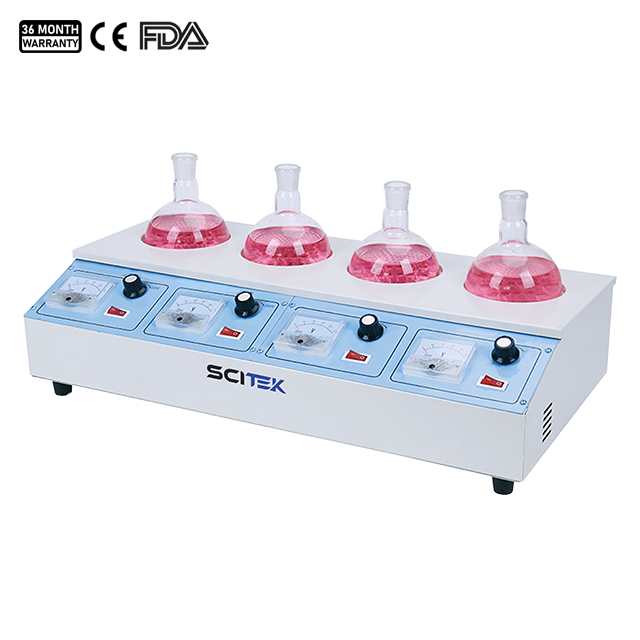

scitek/llBpjKpolqSRkkqpojkljp-MHE-S-100mlx4-MHE-S-250mlx4-MHE-S-500mlx4-MHE-S-1000mlx4.png

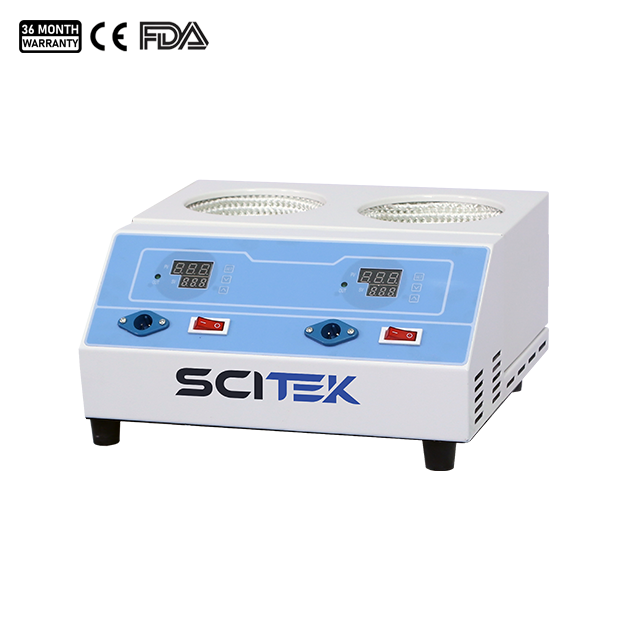

scitek/llBpjKpolqSRkkqpojiojp-MHD-S-100mlx2-MHD-S-250mlx2-MHD-S-500mlx2-MHD-S-1000mlx2.png

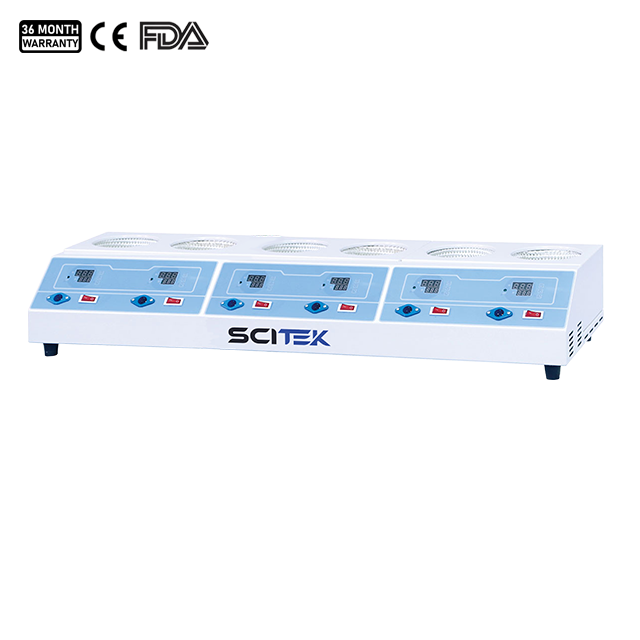

scitek/lnBpjKpolqSRkkqpojjojp-MHD-S-100mlx6-MHD-S-250mlx6-MHD-S-500mlx6-MHD-S-1000mlx6.png

Name	Multi-row Electronic Control Heating Mantle
Code	scitek-0388
Type	Standard
Brand	Scitek
Category	Hotplates and Stirrers
subcategory	Stirring Heating Mantles
Unit	pcs (pcs)
In Stock	Yes
Berminat hub kami:

Product details for Invoice

Model : MHE-S; MHD-S

Rows : Two, Four, Six
Capacity(ml) : 100 / 250 / 500 / 1000
Max Working Temperature(℃) : 380°C (Surface temperature of the heating components)
Size of Working Room(DxH) (mm) : ϕ70x40 / ϕ95x50 / ϕ115x50 / ϕ150x70
Magnetic stirrer and heating jacket in one easy to use unit that can heat up to 4 round bottomed flasks at the same time.

Product Details

Multi-row Electronic Control Heating Mantle Specifications:

Model	MHE-S/MHD-S
Capacity(ml)	100	250	500	1000	100	250	500	1000
Rows	Two				Four
Working Time	Continuous
Max Working Temperature(℃)	380°C (Surface temperature of the heating components)
Power(W)	360	360	500	600	720	720	1000	1200
Power Supply	AC220/110V; 50/60Hz
Size of Working Room(DxH) (mm)	φ70x40	φ95x50	φ115x50	φ150x70	φ70x40	φ95x50	φ115x50	φ150x70
Sizes(D×H)(mm)	280x290 x150	280x290 x150	280x290 x150	390x355 x150	550x290 x150	550x290 x150	550x290 x150	780x350 x150
Shipping Size (W×D×H)(mm)	380x39 0x250	380x390 x250	420x420 x250	490x450 x250	690x350 x250	690x350 x250	730x410 x250	880x450 x250
N.W./G.W. (kg)	4/7	4/7	5/8	7/10	8/11	8/11	10/14	14/17

Model	MHE-S/MHD-S
Capacity(ml)	100	250	500	1000
Rows	Six
Working Time	Continuous
Max Working Temperature(℃)	380°C (Surface temperature of the heating components)
Power(W)	1080	1080	1500	1800
Power Supply	AC220/110V; 50/60Hz
Size of Working Room(DxH) (mm)	φ70x40	φ95x50	φ115x50	φ150x70
Sizes(D×H)(mm)	830x295x150	832x290x150	832x290x150	1170x355x150
Shipping Size (W×D×H)(mm)	930x390x250	980x440x250	1050x410x250	1670x450x250
N.W./G.W. (kg)	12/17	13/18	14/20	20/23

Multi-row Electronic Control Heating Mantle Feature:

The surface temperature of the heating components can reach a maximum of 380°C, ensuring optimal conditions for various heating applications.
With capacities ranging from 100ml to 1000ml and available in 2/4/6 row configurations, these mantles offer versatility to accommodate different experiment scales.
Designed for continuous operation, these mantles facilitate prolonged and uninterrupted heating processes. This feature is particularly beneficial for experiments or reactions that require extended durations for reliable results.
The Multi-row electronic control heating mantle offers a range of power options, this adaptability enhances precision and control over the heating process.

Applications of Multi-row Electronic Control Heating Mantle:

Ideal for organic chemistry applications, these mantles can simultaneously heat multiple reaction vessels, enabling efficient and controlled synthesis processes.
Widely used in research laboratories, these mantles are suitable for various heating applications, such as distillation, reflux, and sample preparation, providing researchers with a versatile tool for different experimental setups.
In analytical chemistry, the Multi-row Electronic Control Heating Mantle is employed for tasks like evaporation and digestion, where precise and simultaneous heating of multiple samples is essential for accurate analytical results.
Facilitating batch processes, these mantles find application in pharmaceutical laboratories for activities such as crystallization and heating multiple reaction flasks during drug development and synthesis.
