| Name | Mini Low Temperature Circulator |
| Code | scitek-0312 |
| Type | Standard |
| Brand | Scitek |
| Category | Water Bath |
| subcategory | Circulating Baths |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Temperature Range : -20°C to Ambient Temp.
Pump Pressure : 0.3bar
Pump Suction : 0.2bar
Pump Flow : Max. 22L/Min
Tank Size : 4.5L
This mini low temperature circulator offers a -20°C to RT temperature range for experiments and applications that require a low-temperature environment.
Optimized for demanding applications, this Low Temperature Circulator is reliable, easy to use and easy to maintain. The unit can be configured to suit your application and installation needs and is ready to be expanded to suit you and your processes.
Low Temperature Circulator Specifications:
| Model | LTC-P5 |
|---|---|
| Temperature Range | -20°C to Ambient Temp. |
| Temperature Display | LED Display, Accuracy 0.1 °C |
| Temperature Stability | ±0.3°C |
| Refrigerating Capacity | 700W |
| Pump Pressure | 0.3bar |
| Pump Suction | 0.2bar |
| Pump Flow Max. | 22L/Min |
| Tank Size | 4.5L |
| Cooling Water Tubing | Silicone |
| Communication Interface | Optional RS232/485 |
| Low-level Alarm | Optional |
| Heating Function | Optional |
| Operating Environment | 5-32 °C |
| Outer Connected Size | Standard 8mm insulation tube |
| Power Supply | 220V/50Hz |
| Sizes(W×D×H)(mm) | 430×230×460 |
| Shipping Size (W×D×H)(mm) | 450×250×470 |
| N.W./G.W. (kg) | 28/33 |
Low Temperature Circulator Features:
Cryogenic circulators ensure adaptation to different laboratory environments for efficient cooling processes.
LED display provides clear and accurate temperature readings
The circulators provide powerful cooling performance, making them suitable for a variety of applications, including sample preservation and cryogenic reactions
Efficient pump performance ensures efficient circulation of temperature controlled fluids to optimise heat exchange

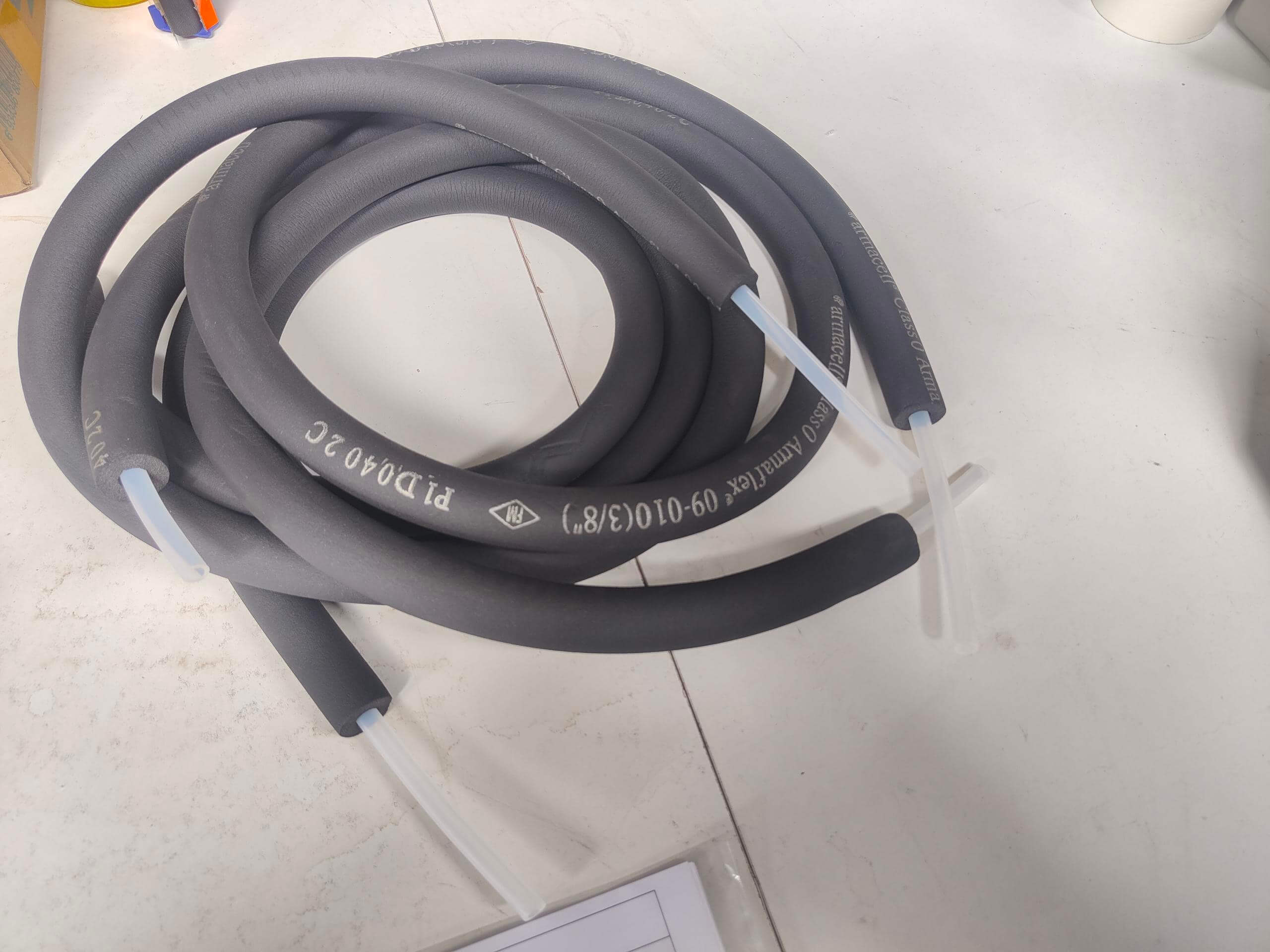

Durability and flexibility are ensured by utilizing silicone tubing to cool the water, allowing for reliable and consistent fluid circulation during the temperature control process
The circulator offers a flexible optional RS232/485 communication interface for seamless integration with other laboratory equipment to enhance overall system control
Details of Low Temperature Circulator:

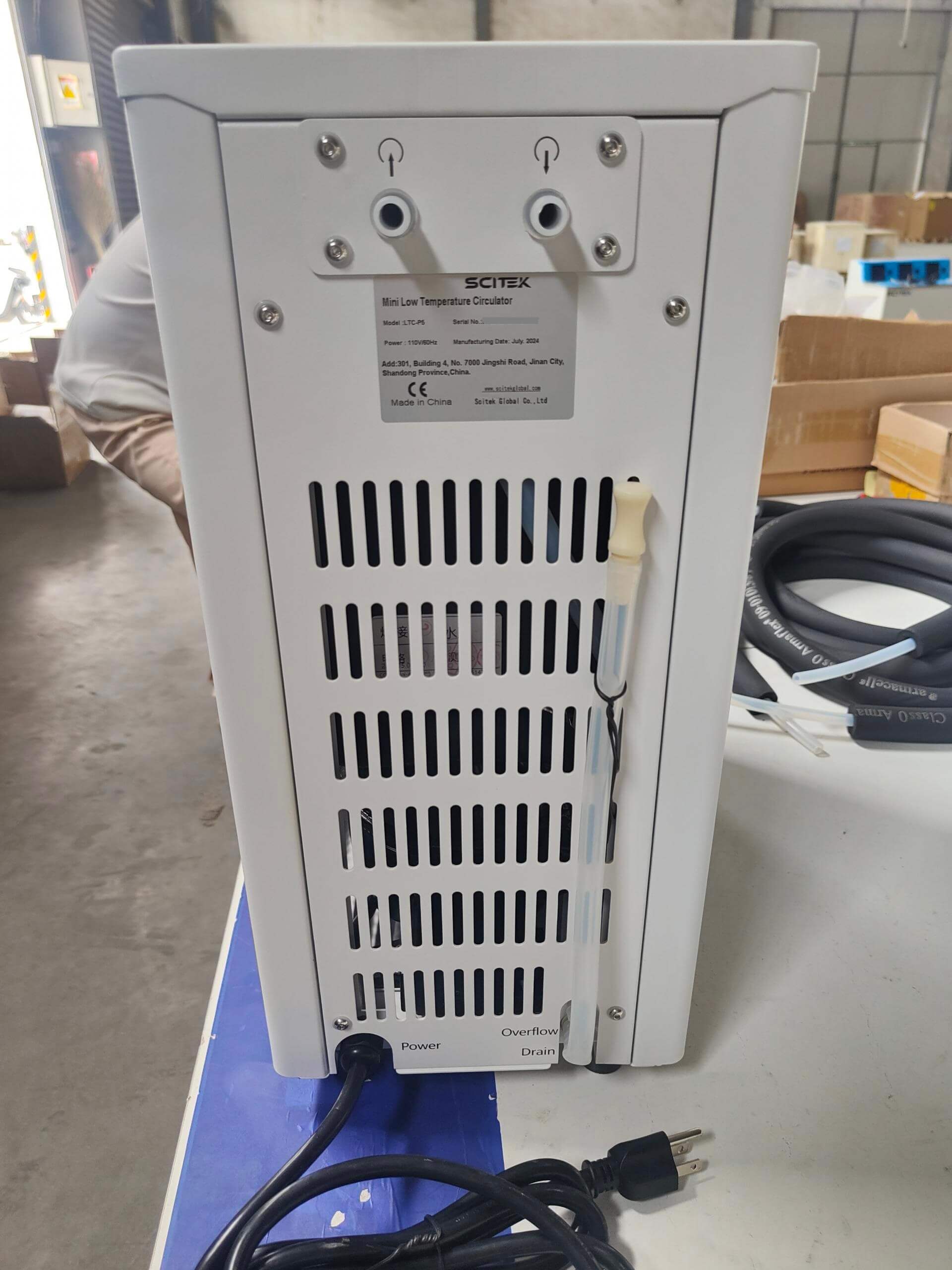

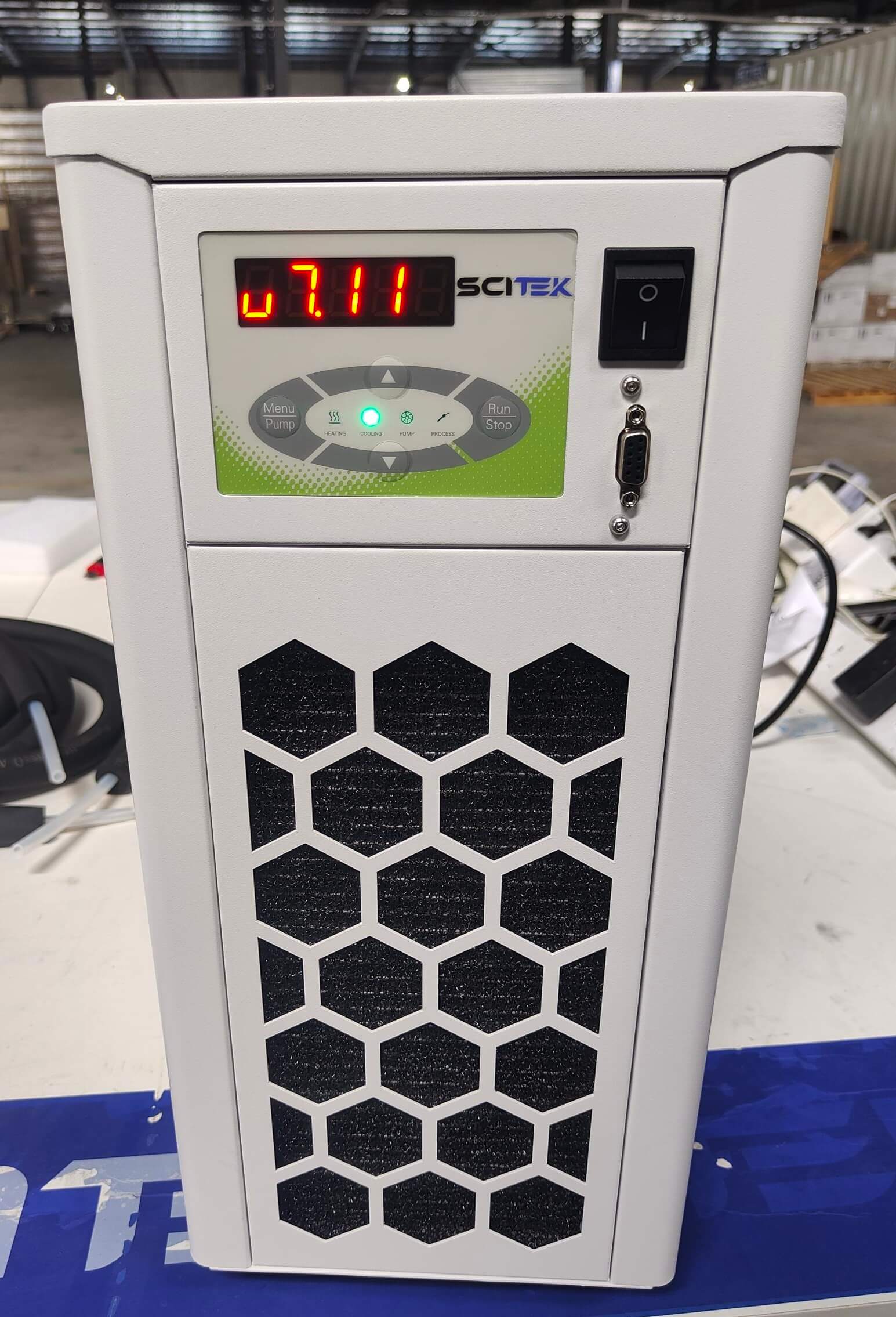

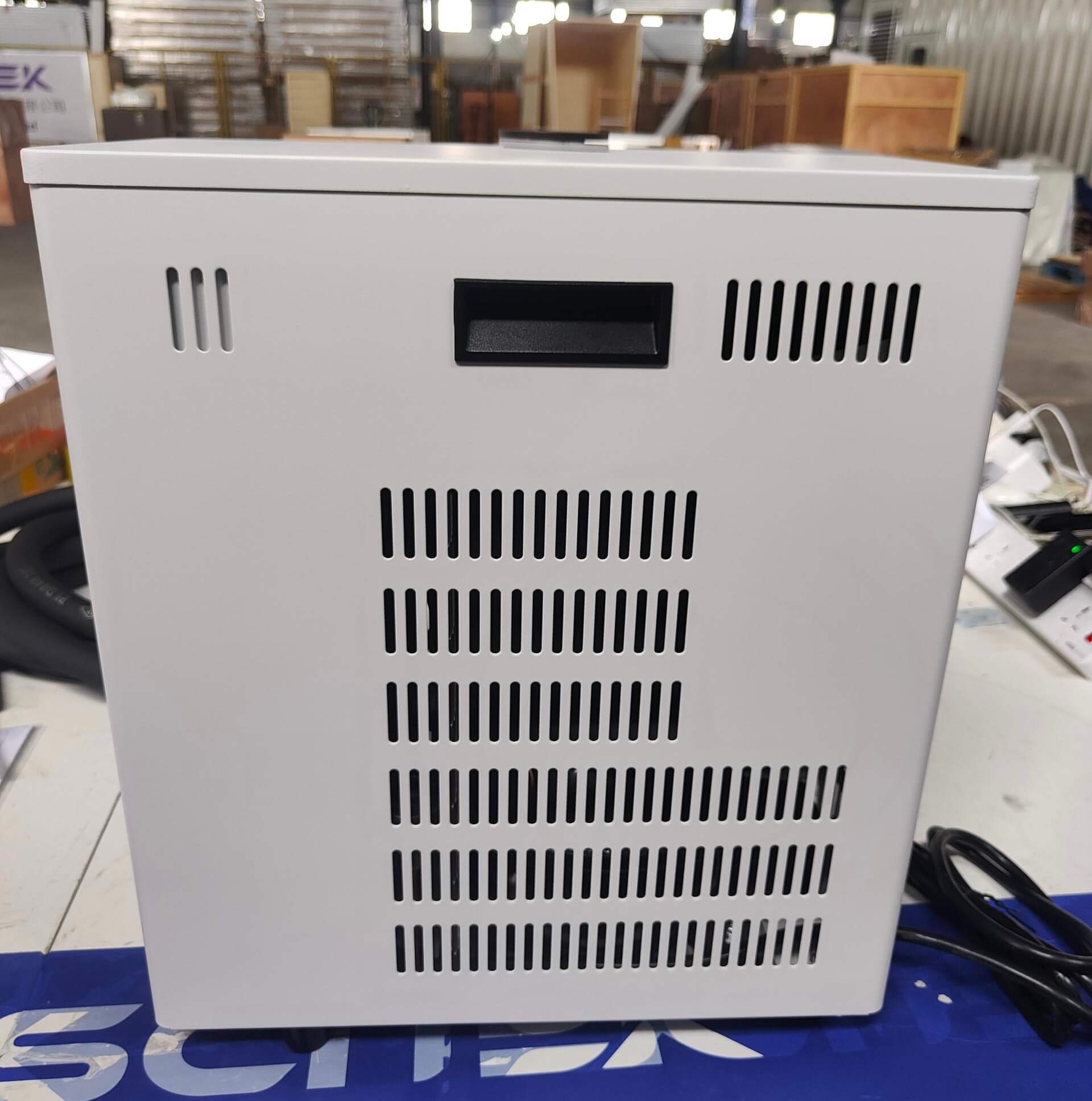

Below the display is the operation panel with multiple buttons, which allows users to easily adjust the temperature and set other parameters. Large ventilation openings help to dissipate heat and ensure the stability of the machine during long hours of operation.
