MI-400 Digital Radius Gauge (tlead-0763) Products
| Name | MI-400 Digital Radius Gauge |
| Code | tlead-0763 |
| Type | Standard |
| Brand | Amtast |
| Category | Machine Tools |
| subcategory | Radius Gauge |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Product details for Invoice
MI-400 Digital Radius Gauge
Product Details
MI-400 Digital Radius Gauge
Features:

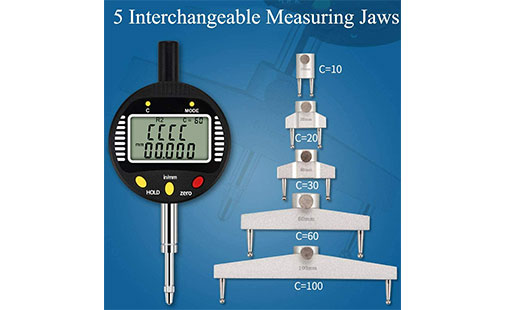

1. Come with 5 changeable measuring jaw (10mm/20mm/30mm/60mm/100mm)
2. Multi-indicators have five different length measuring jaws, for choose corresponding measuring jaws, while measuring arc face.
3. Multi-functions:
1) Application as indicators
2) Outside measurement
3) Inside measurement
4) Depth measurement
5) Step measurement
Specifications:
1. Range:5~700mm
2. Resolution: ΔR≤0.01*R/S
3. Max tolerance: 20μm
4. Inside arc the best measuring range:
1) Jaw=10: R= 5~13mm
2) Jaw=20: R=11~30mm
3) Jaw=30: R=22~100mm
4) Jaw=60: R=94~260mm
5) Jaw=100: R=255~700mm
5. Outside arc the best measuring range:
1) Jaw=10: R=6.5~15mm
2) Jaw=20: R=14~ 30mm
3) Jaw=30: R=27~100mm
4) Jaw=60: R=94~260mm
5) Jaw=100: R=255~700mm
