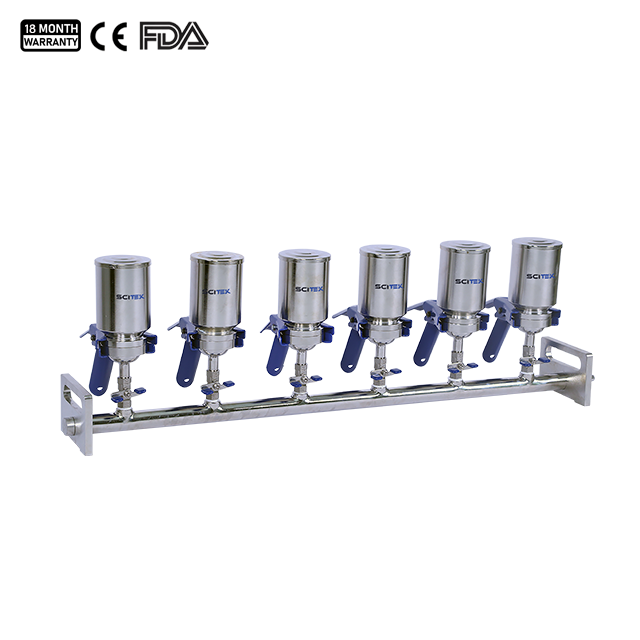

| Name | Manifolds Vacuum Filtration Apparatus |
| Code | scitek-1031 |
| Type | Standard |
| Brand | Scitek |
| Category | Filtration Apparatus & Consumable |
| subcategory | Manifolds Vacuum Filtration Apparatus |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Filter Funnel : 300ml (Optional:500ml)
Specification : 1-branch, 3-branch, 6-branch
Filter Head Pore Size : 20μm, 100μm
Sieve Plate Material : Glass sand core, SS316
Economical manifolds vacuum filtration apparatus for vacuum operation in general life science and environmental laboratories
Our manifolds vacuum filtration apparatus is available in glass sand core and stainless steel, making it suitable for various microbiological applications. Filter Support and valves have excellent chemical and thermal shock resistance, making them ideal for vacuum filtration installations with strong acids or bases. The vacuum filter apparatus has strong acids or bases. They can be used at temperatures up to 180°C and sterilized at dry heat up to 180 degrees Celsius.
Manifolds Vacuum Filtration Apparatus Specifications:

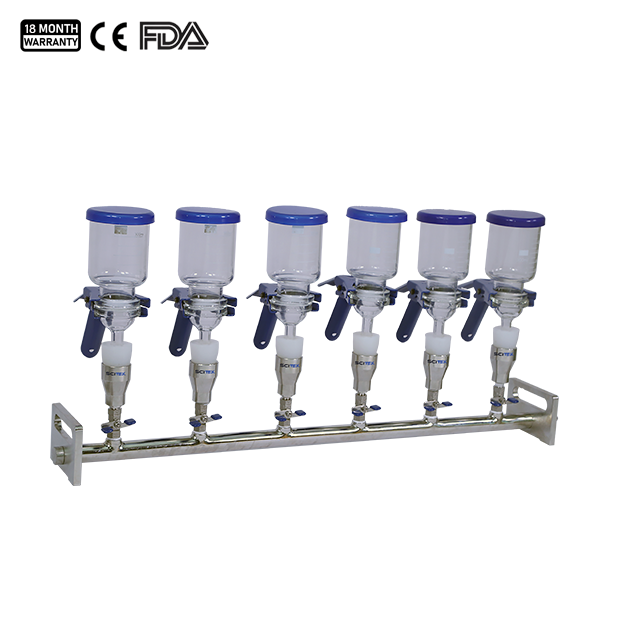

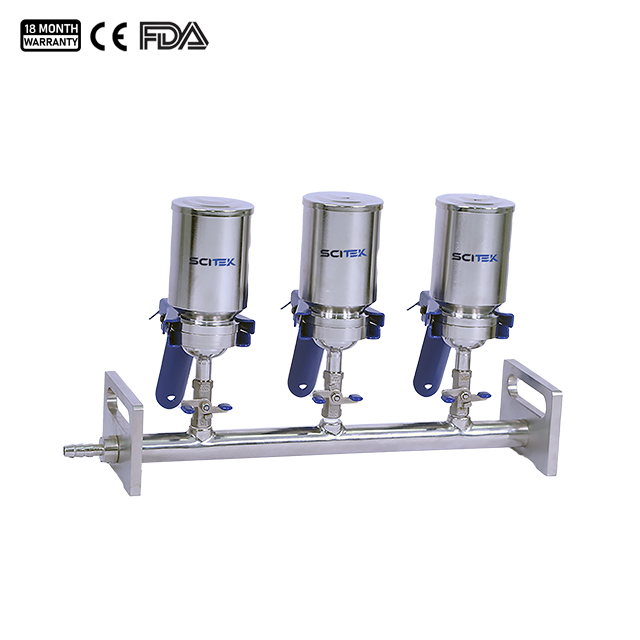

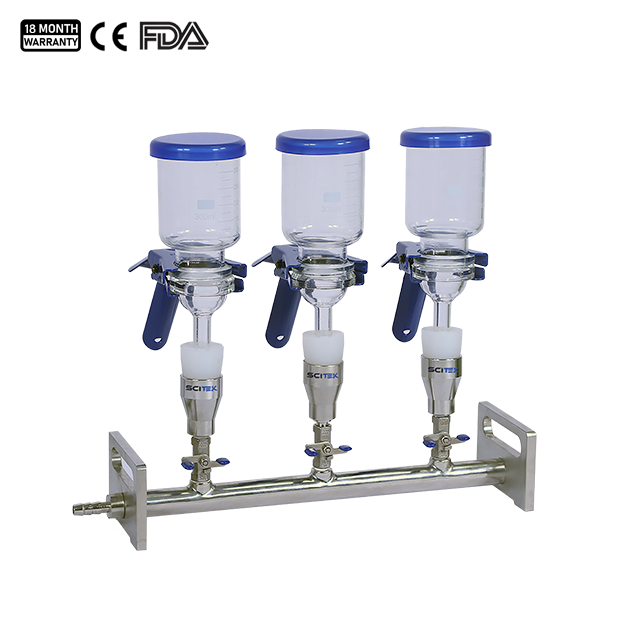

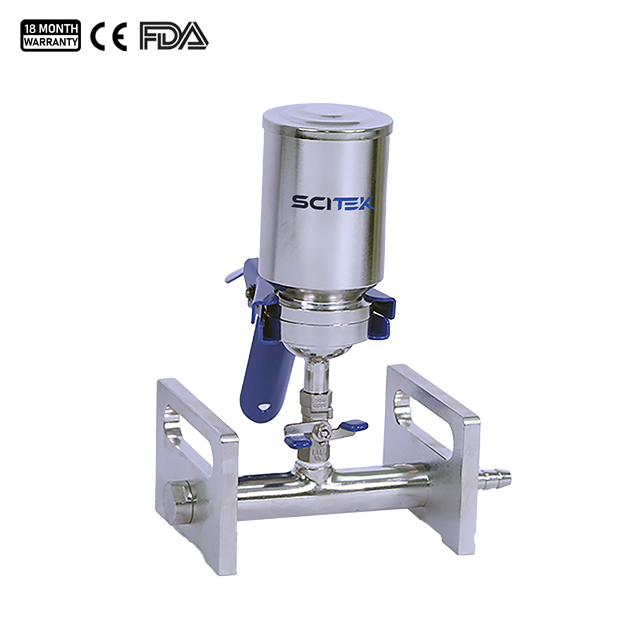

| Model | MVF-1GPTE | MVF-3GPTE | MVF-6GPTE | MVF-1SE | MVF-3SE | MVF-6SE |
|---|---|---|---|---|---|---|
| Filter Funnel | 300ml (Optional: 500ml) | |||||
| Specification | 1-branch | 3-branch | 6-branch | 1-branch | 3-branch | 6-branch |
| Filter Head Pore Size | 20μm | 100μm | ||||
| Sieve Plate Material | Glass sand core | SS316 | ||||
| Filter Support | SS316 | |||||
| Valve | SS316 | |||||
| Clamp | Aluminum alloy | |||||
| Shipping Size (W×D×H)(mm) | 290x250x150 | 565x380x400 | 990x290x410 | 290x250x150 | 500x280x150 | 930x290x150 |
| G.W. (kg) | 5 | 11 | 20 | 5 | 8 | 12 |
Application of Manifolds Vacuum Filtration Apparatus:
The vacuum filtration apparatus are Widely used for chemistry analyze, biochemical-pharmaceutical, sanitation test, environment test, water quality analyze, food staff, beverage and science research and so on.
Solvent Filtration Apparatus Feature:
Each holder have individual control valve, agility for use, convenience in antisepsis, high efficiency.
Test three or six samples at the same time
High sensitivity, low false-positive, and easy to operation.
For operators who need to filter multiple samples at the same time, it is more convenient to choose to use multi- filter. Each filter frame has an independent control valve, so only one vacuum pump can support single or multiple simultaneous operation.
All stainless steel multi- coupling filter bracket can be filtered at 180℃ high temperature operation, aluminum alloy clamp design is reasonable and tight, can easily filter cup and middle filter head together and ensure strict se aling without leakage, while 316L stainless steel acid and alkali resistance, corrosion resistance, easy high temperature disinfection, making the analysis results more stable and reliable.
Standard Accessory:
SS316 Stainless Steel/Glass Bowl
SS316 Stainless Steel/Glass sand core filtration head
SS316 Stainless Steel filtration support
SS316 Stainless Steel Valve
Aluminum alloy clamp
Silicone plug
Filter options: φ 47 or φ 50

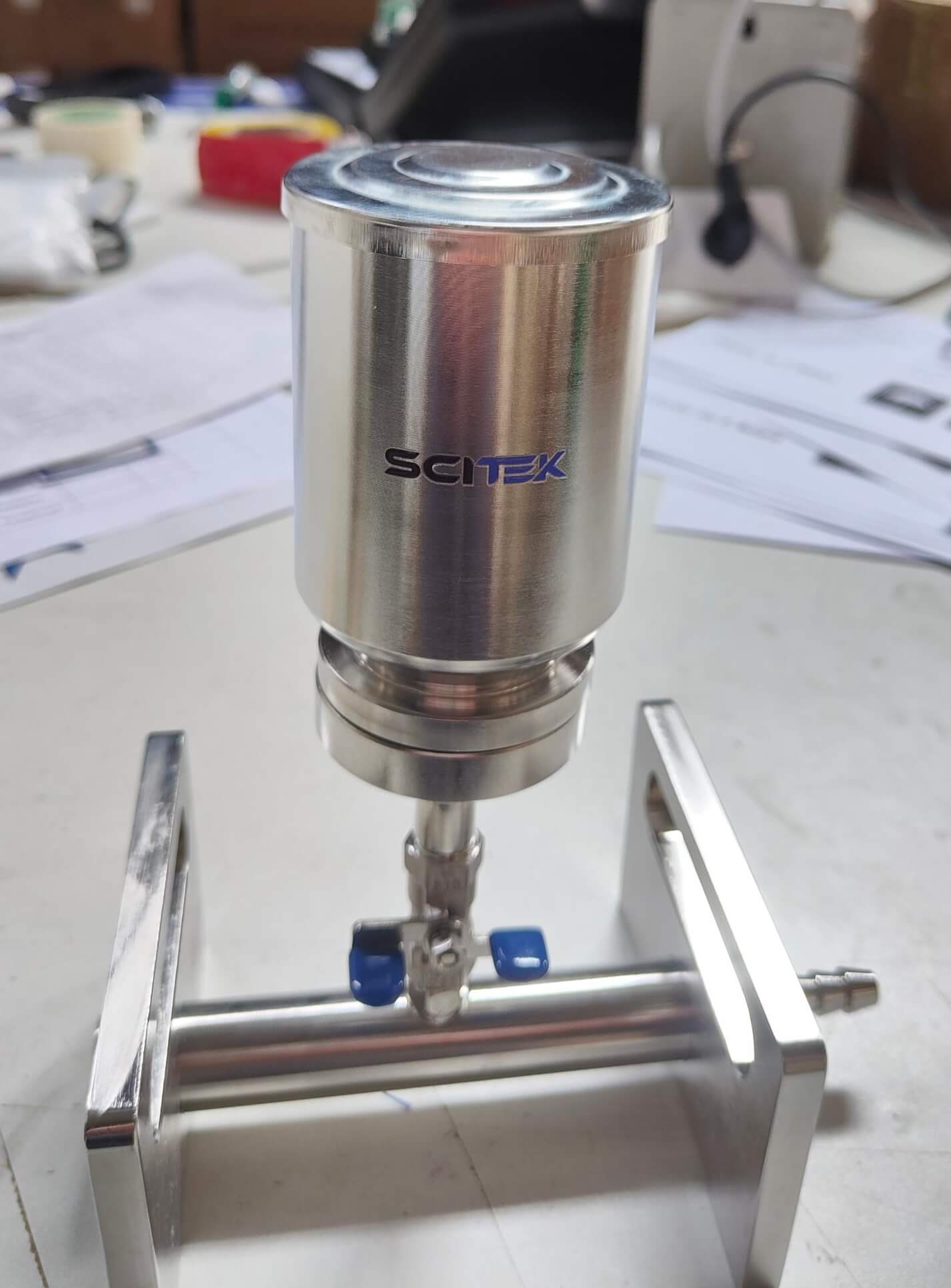

Details of Manifolds Vacuum Filtration Apparatus (MVF-1SE):
The main body is made of stainless steel, which is sturdy and corrosion-resistant.
Allows multiple cups or filters to be connected at the same time, greatly improving sample processing efficiency.
Comes with a removable base for easy cleaning and maintenance.
