| Name | Liquid Nitrogen Tank Smart Cap |
| Code | scitek-0156 |
| Type | Standard |
| Brand | Scitek |
| Category | Cold Storage Products |
| subcategory | Liquid Nitrogen Tank |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Working Temperature (℃) : -20~40
Instrument Input Power Supply : 3.6V
Level Measurement Range (mm) : 160~700
Temperature Measurement Range (℃) : -200~200
Liquid Nitrogen Tank Smart Cap Specifications:
| Model | LT-50 | LT-80 | LT-125 | LT-216 |
|---|---|---|---|---|
| Working Temperature | -20~40℃ | |||
| Relative Humidity | ≤75% (25℃) | |||
| Instrument Input Power Supply | 3.6V | |||
| Level Sensor | Capacitance | |||
| Temperature Sensor | PT-100 | |||
| Level Measurement Range | 160~700mm | |||
| Level Error | ±5 mm | |||
| Temperature Measurement Range | -200~200℃ | |||
| Temperature Error | ±0.1℃ | |||
| Gross Weight (kg) | 2.6 | 3.3 | 3.5 | 4 |
| Shipping Size(WxDxH) (mm) | 200x200x600 | 200x200x800 | 290x290x720 | 290x290x970 |

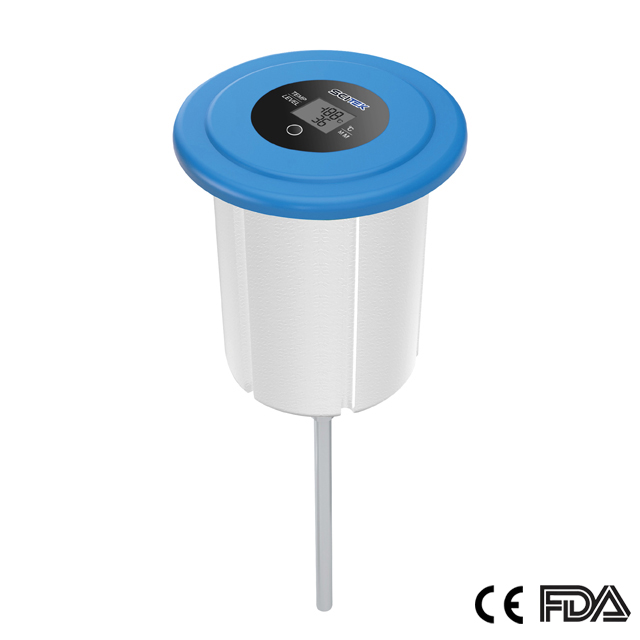

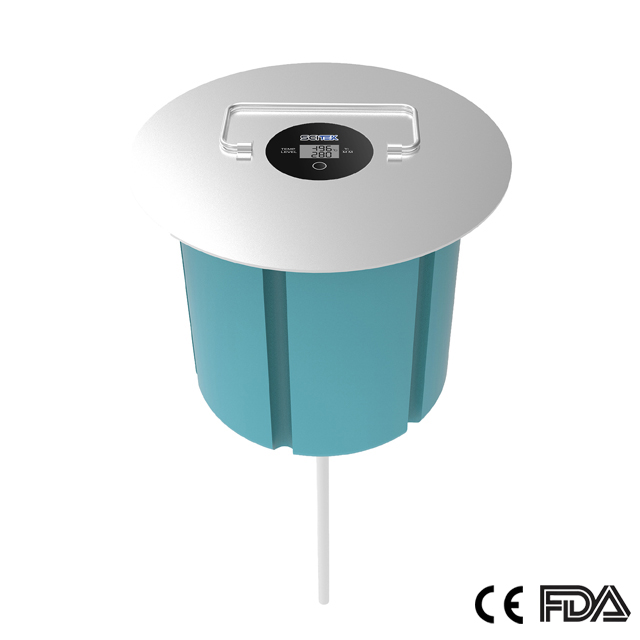

Tank smart cap intelligent cork, with liquid nitrogen tank level monitoring and temperature monitoring functions.
LT series tank smart cap is suitable for 50mm/80mm/125mm/216mm caliber liquid nitrogen tank products, but also compatible with other similar liquid nitrogen tank on the market (only internal height and caliber can be configured).
Tank Smart Cap Features:
Double independent measurement system for high accuracy liquid level measurement and temperature measurement. Reduce the energy consumption and emission of oil tanks to achieve the effect of energy saving and environmental protection.
Real-time display of liquid level and temperature. Enables remote monitoring and management of tanks.
Adopt internal imported special-shaped nickel battery for power supply, with long battery life.
Data can be analysed and processed to better understand tank usage and trends and provide decision support to users.
The smart liquid nitrogen tank cover adopts wireless communication technology, which eliminates the need for wiring and is easy to install, allowing quick access to existing liquid nitrogen tank systems.
