| Name | Jacketed Glass Reactor |
| Code | biobase-0668 |
| Type | Standard |
| Brand | Biobase |
| Category | Other Lab Equipments |
| subcategory | Jacketed Glass Reactor |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |

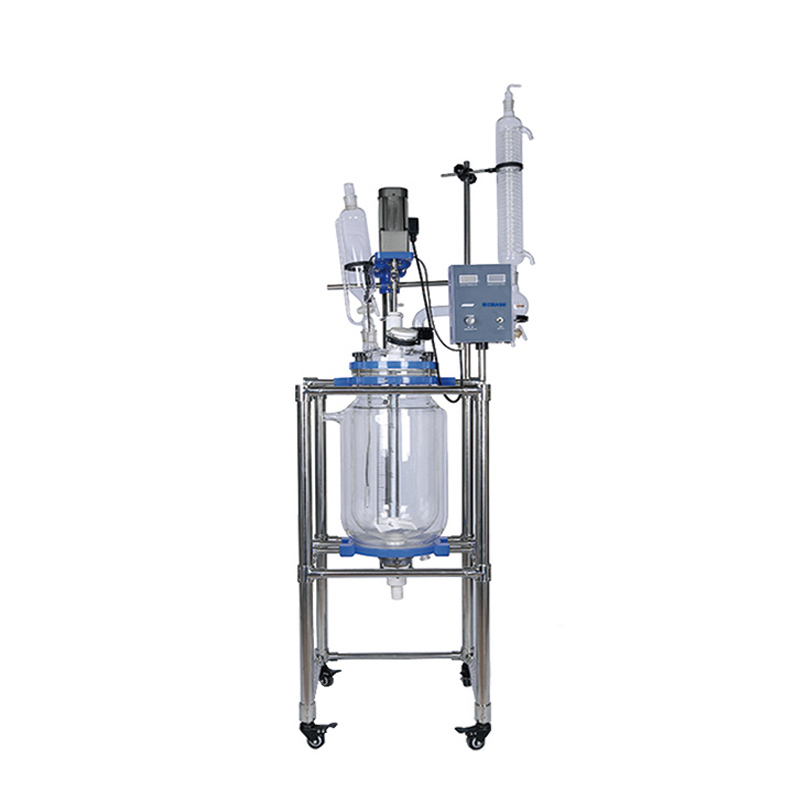

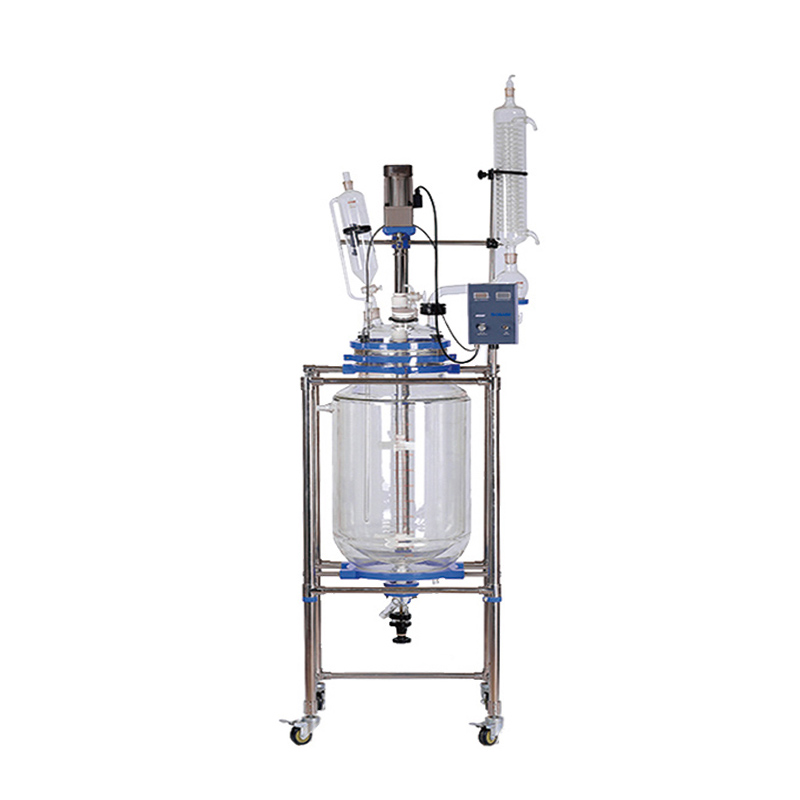

Jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.
Features:
* GG17 high borosilicate glass, with good chemical and physical properties.
* The evaporation and back-flow of reaction material can be controlled.
* The heat of reaction could be taken away quickly through water, cycling in the jacketed glass.
* The design of large bottle mouth, easier to clean.
* It can be used as a distillation syntheses device.
* The sealing performance is 0.098 Mpa.
* LCD display, easier and more convenient to measure temperature.
Optional Equipment:
* Circulating water vacuum pump: (JGR・1L~5L, recommend mode SHZ-DIII, JGR-10L~100L, recommend model SHZ-95B)
* Refrigerated Circulator
* Circulating water/oil bath
Technical Parameters:
|
Model |
JGR-1L |
JGR-2L |
JGR-3L |
JGR-5L |
JGR-10L |
JGR-20L |
JGR-30L |
JGR-50L |
JGR-100L |
|
Reaction Flask Capacity |
1L |
2L |
3L |
5L |
10L |
20L |
30L |
50L |
100L |
|
Stirring Power |
60W |
120W |
180W |
||||||
|
Stirring Speed |
0 〜600rpm(Max.1300 customized) |
||||||||
|
Stirring Shaft Diameter |
12mm |
15mm |
|||||||
|
Motor Torque(g/cm) |
2000 |
2400 |
4800 |
1000 |
1200 |
1500 |
3000 |
||
|
Power Supply |
AC110/220V, 50/60HZ |
||||||||
|
Package Size (W*D*H) |
1260*430*460mm |
1300*580 *540mm |
1310*600 *540mm |
1230*610 *750mm |
1320*630 *750mm |
1650*660*780mm |
1840*720 *910mm |
||
|
Gross Weight |
40kg |
46kg |
53kg |
56kg |
81kg |
85kg |
90kg |
100kg |
151kg |
