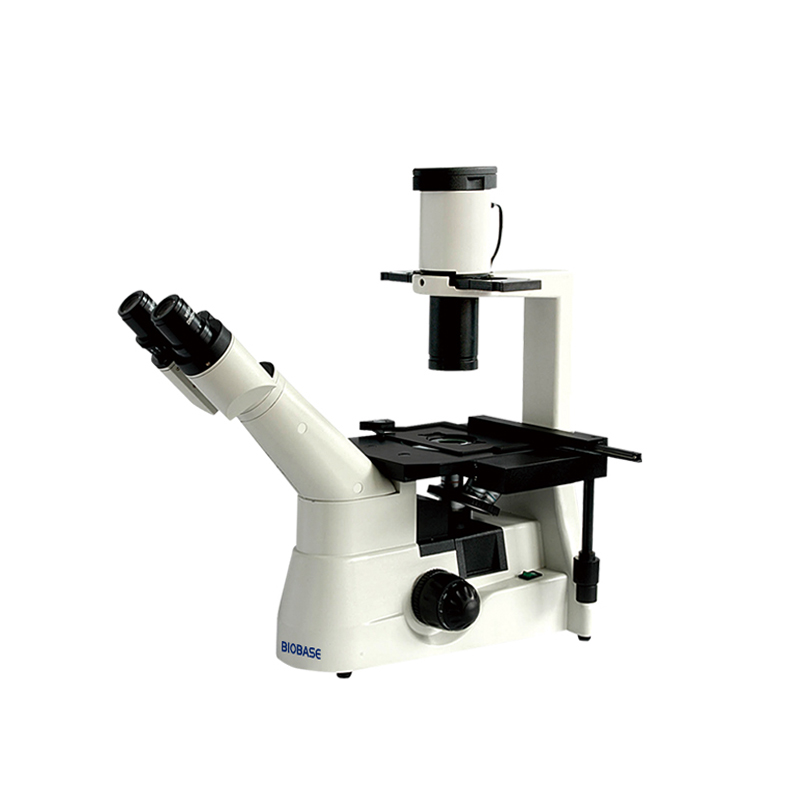

| Name | Inverted Microscope XDS-403 |
| Code | biobase-0940 |
| Type | Standard |
| Brand | Biobase |
| Category | Optical Instruments |
| subcategory | Microscope |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Optional: 2.0, 3.0 or 5.0 Megapixel, CMOS electronic eyepiece(only for Trinocular microscope)
Model:
Model | Specifications | XDS-403 | NIB-100 |
Viewing Head | Trinocular viewing head, inclined at 45° | √ | |
Trinocular viewing head, inclined at 30° | √ | ||
Eyepiece | WF10X/20mm | √ | |
EW10X/22mm | √ | ||
Objective | LWD Plan objective 4X,10X,20X, 40X | √ | |
LWD Infinite plan objective 4X,10X,20X, 40X Infinite plan phase objective 10X,20X, 40X | √ | ||
Stage | Double layers mechanical stage, stage size:242*172mm, central stage:(p110mm, moving range: 75*50mm | √ | |
Plain stage: 160*250mm, glass insert, attachable mechanical stage, X-Y coaxial control, moving range: 120*78mm Auxiliary stage 70*180mm, Terasaki holder, Petri dish holder(p35mm/(p54mm/(p90mm, slide glass holder(p54mm | √ | ||
Condenser | NA 0.3 Abbe condenser W.D. 75mm | √ | √ |
ELWD Condenser NA 0.3, LWD 72mm (without condenser 150mm) | √ | √ | |
Interpupillary Distance | 50-75mm/48-75mm | √ | √ |
Focusing | Coaxial coarse& fine adjustment, fine division 0.002mm | √ | √ |
Phase Contrast Sliding Plate | Center of phase contrast ring plate adjustable | √ | √ |
10X, 20X, 40X phase annulus plate (fixed) 10X, 20X, 40X phase annulus plate (adjustable) | √ | ||
Center Telescope | Center telescope | √ | |
Center telescope((p30mm) | √ | ||
Illumination | Halogen lamp 12V/30W, adjustable brightness | √ | |
LED lamp 3W/Halogen lamp 6V/30W | √ | ||
Filter | Blue, green, yellow and frosted glass | √ | |
Blue, green and frosted glass | √ | ||
Optional Accessories | B, G wave band, 220V(110V)/100W Fluorescent Mercury lamp; photograph connecting tube, adapter with MD or PK mount, 4X photograph eyepiece | √ | |
Inverted fluorescent attachment, photo attachment, video adapter with C mount | √ | ||
Power Supply | AC 110/220V±10%,50/60Hz | √ | √ |
Package Size | 350*250*508mm(XDS-403), 468*397*665mm(NIB・100) | √ | √ |
Gross Weight | 15kg | √ | √ |
