IE-80T Dissolved Oxygen Electrode (bante-0173) Products
| Name | IE-80T Dissolved Oxygen Electrode |
| Code | bante-0173 |
| Type | Standard |
| Brand | Bante |
| Category | Electrodes |
| subcategory | Dissolved Oxygen |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Product details for Invoice
Industrial dissolved oxygen electrode, suitable for monitoring the % saturation and dissolved oxygen concentration of water.
Product Details

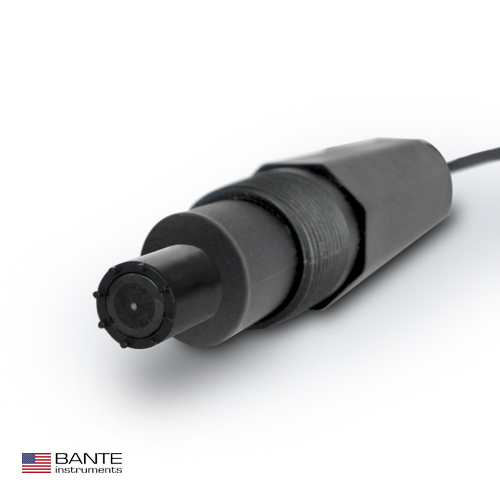

IE-80T Dissolved Oxygen Electrode
Industrial dissolved oxygen electrode, suitable for monitoring the % saturation and dissolved oxygen concentration of water.
Features:
• Polarographic dissolved oxygen electrode
• Built-in temperature sensor
• Replaceable membrane cap design
• 3/4 inch thread
Specification
Model | IE-80T | |
Range | 0 to 20 mg/L | |
Operating Temperature | 0 to 50°C / 32 to 122°F | |
Temperature Sensor | NTC 10 KΩ | |
Maximum Process Pressure | 0.6 MPa / 87 PSIG | |
Body Type | PPS/PC | |
Electrode Diameter | 29.5 mm | |
Electrode Length | 192 mm | |
Maximum Transmission Distance | 30 m / 98 ft | |
Cable Length | 6 m / 20 ft | |
Weight | 550 g |
Ordering Info
Ordering Code | Electrode Includes |
IE-80T | DO membrane cap |
DO electrolyte solution (30 mL) |
Optional Accessories
| Items | Description |

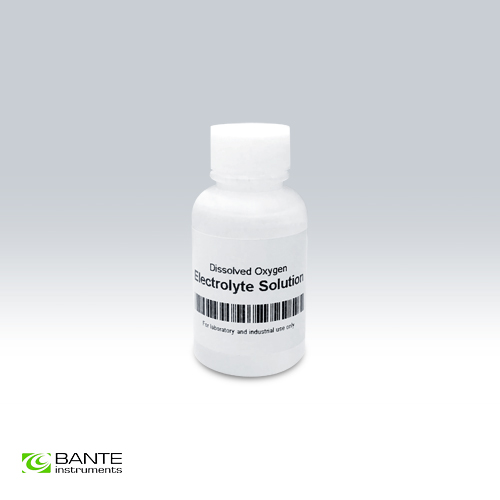

| DO Electrolyte Solution | For filling the dissolved oxygen electrode |
| DO Membrane Cap | For polarographic dissolved oxygen electrode |
Packaging
Ordering Code | Dimensions and Weights |
IE-80T | 23 × 7.5 × 8.5 cm, 0.7 kg |
