Horizontal Cylindrical Pressure Autoclave BKQ-H150 BKQ-H200 BKQ-H300 BKQ-H400 (biobase-0187) Products
Name Horizontal Cylindrical Pressure Autoclave BKQ-H150 BKQ-H200 BKQ-H300 BKQ-H400
Code biobase-0187
Type Standard
Brand Biobase
Category Disinfection And Sterilization Equipments
subcategory Horizontal Autoclave
Unit pcs (pcs)
In Stock Yes
Berminat hub kami: wa chat
Product details for Invoice
Introduction:
A sterilization equipment for labs and healthcare, featuring a cylindrical design, operates under high pressure to ensure effective decontamination of instruments and materials.
Product Details

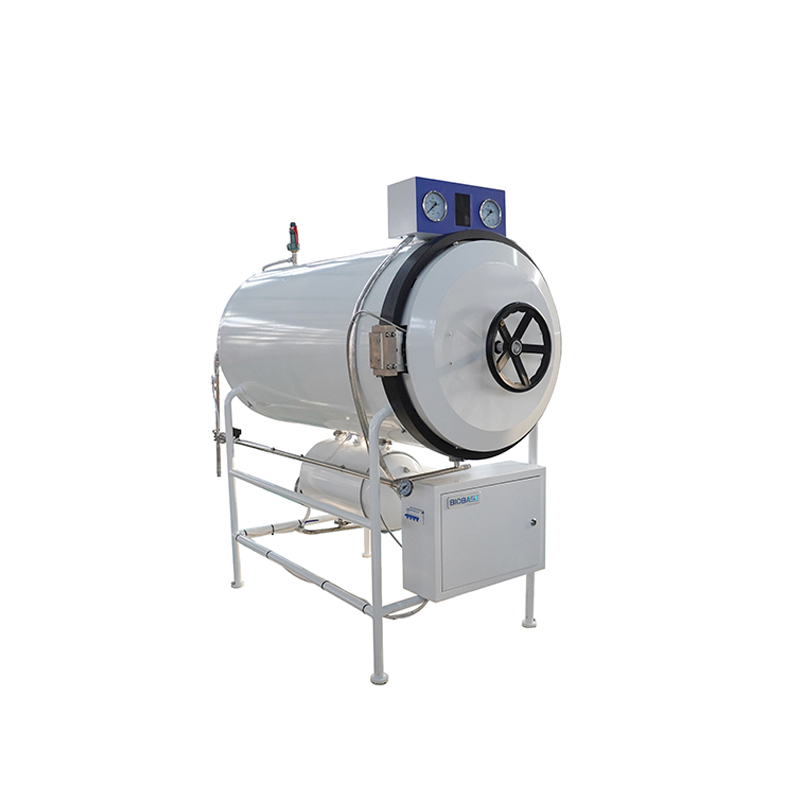

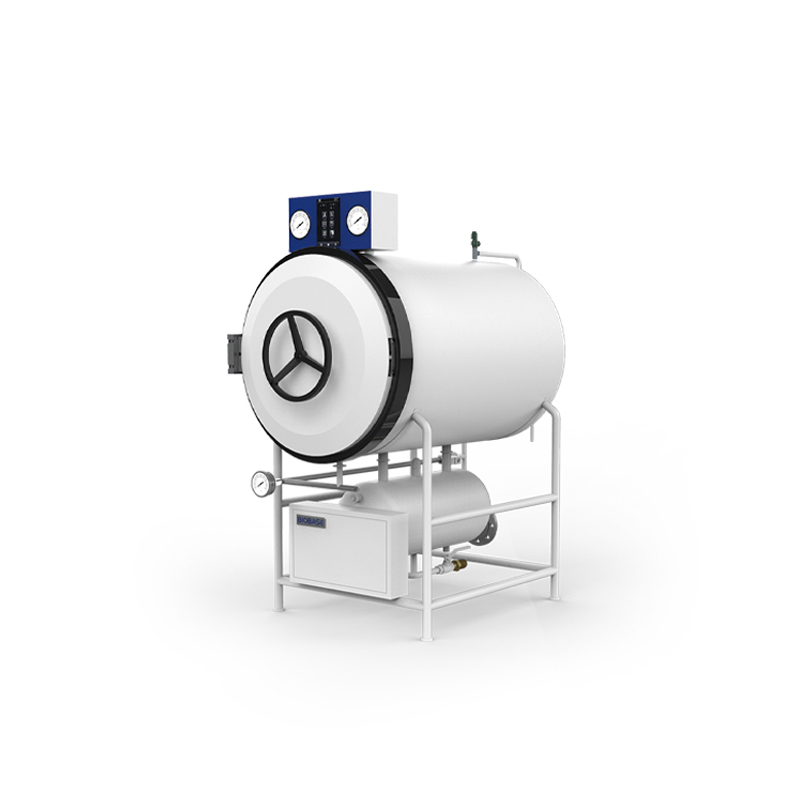

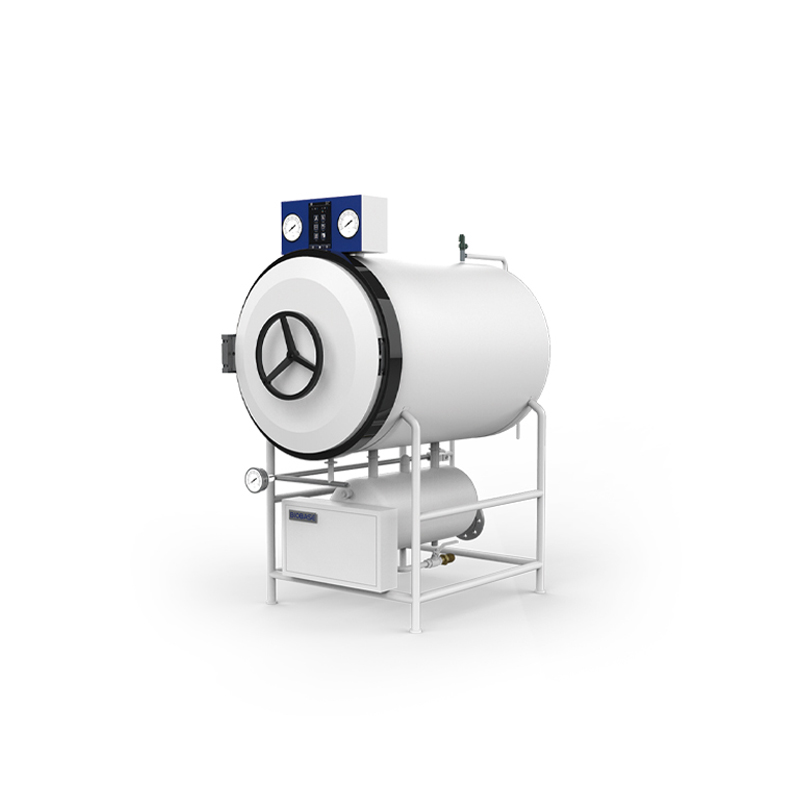

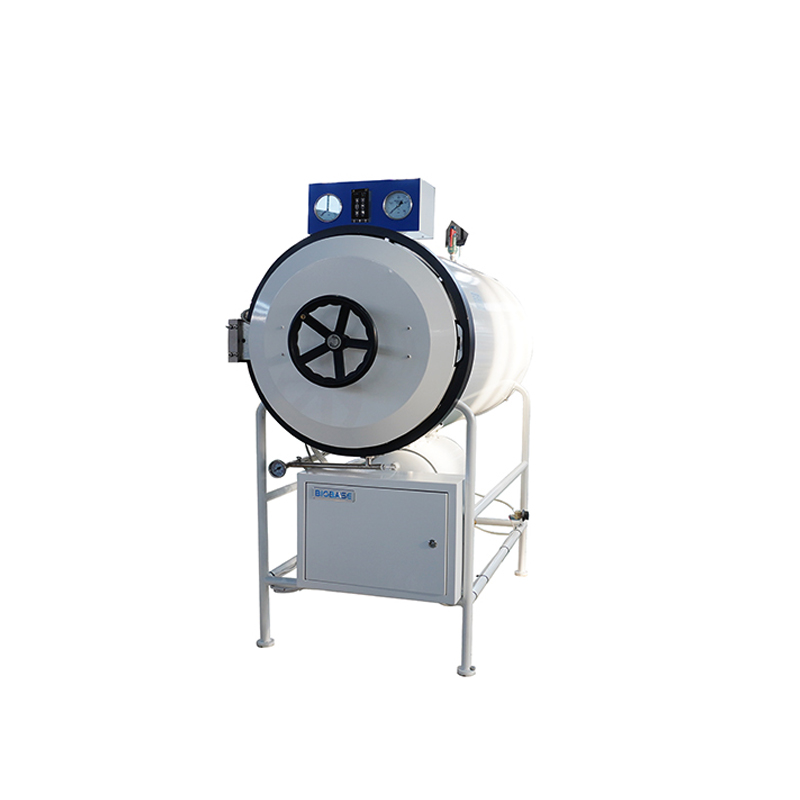

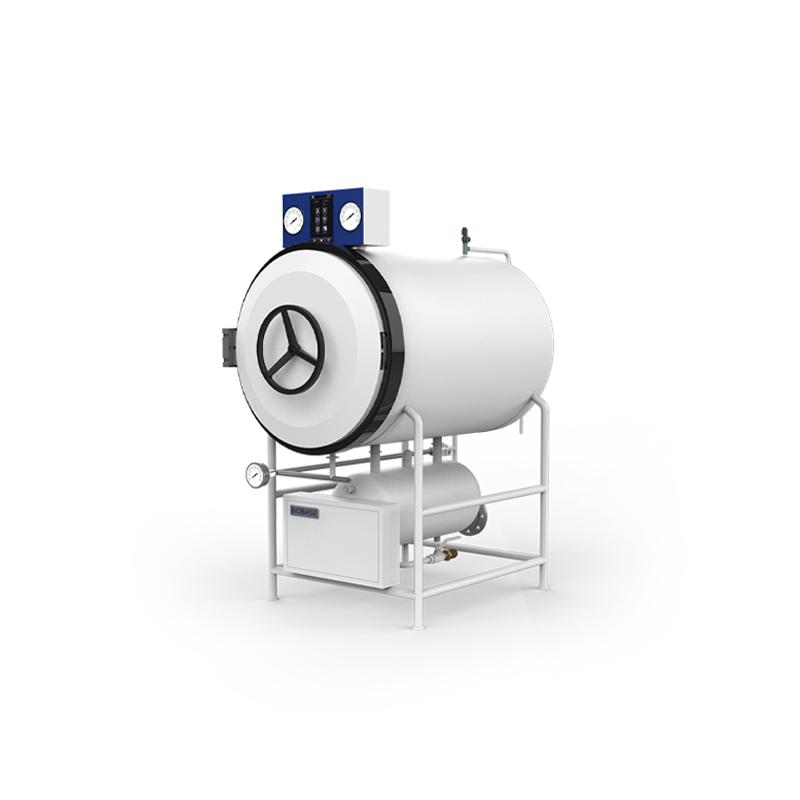

Horizontal Cylindrical Pressure Autoclave BKQ-H150 BKQ-H200 BKQ-H300 BKQ-H400

Features:

1. Brand New Operation Interface

The LCD touch screen can display temperature, time, operating status and fault alarm in real time, making the sterilization information more intuitive and clear, and it is convenient for users to observe the operating status of the equipment.

2. Drying Function

With auxiliary drying function, it is used to dry sterilized items.

3. Protection Device

Equipped with over-temperature and over-pressure automatic protection devices.

4. Steam Generator

The equipment has a built-in high-speed steam generator, which saves time and effort without external steam source.

5. Automatic Operation of The Program

The equipment is externally connected to the water source, and there is no need for manual water replenishment. After the customer selects the program, the equipment can complete the entire process from water injection to drying without human intervention. After the program is completed, the sound prompts that the sterilization is complete.

6. Programs: Wrapped, Unwrapped, Dressing, Rubber, Drying, DIY solid.

Technical Parameters:

Model

BKQ-H150

BKQ-H200

BKQ-H300

BKQ-H400

Volume

150L

200L

300L

400L

Design Pressure

0.28MPa

Rated Operating Temperature

121℃/134℃

Rated Working Pressure

0.12MPa/0.23MPa

Chamber Material

S30408

Power Supply

Three-phase 380V, 50/60Hz

Three-phase 220V, 50/60Hz
Single-phase 220V, 50/60Hz(Note: Be careful when ordering this voltagethe current is close to 75A)

Rated Power

16KW

Ambient Temperature

5~40℃

Sterilization Time Adjustable Range

0~99min

Adjustable Drying Time Range

0~99min

Adjustable Drying Temperature Range

115℃~134℃

Chamber Size(φ*L)mm

φ500*820

φ500*1050

φ650*935

φ650*1235

Packing Size(L*D*H)mm

1500*820*1910

1730*820*1910

1750*950*2030

2000*950*2030

Gross Weight(kg)

320

355

475

535
