| Name | Economical ESR Analyzer |
| Code | scitek-0617 |
| Type | Standard |
| Brand | Scitek |
| Category | Clinical Analyzers and Reagents |
| subcategory | ESR Analyzer |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Throughput : Up to 20/40 samples per hour
Loading Capacity : 10/20 sample at same time
Sizes(W×D×H)(mm) : 365×300×180
ESR Analyzer Specifications:
| Model | ESR-10 | ESR-20 |
|---|---|---|
| Field of Application | Erythrocyte sedimentation rate analysis | Erythrocyte sedimentation rate analysis |
| Measuring Principle | Infrared sensor | Infrared sensor |
| Analysis Result | Westergren ESR value (mm/hr) | Westergren ESR value (mm/hr) |
| Throughput | Up to 20 samples per hour | Up to 40 samples per hour |
| Reading Channels | 10 | 20 |
| Loading Capacity | 10 sample at same time | 20 sample at same time |
| Loading Pattern | Random | Random |
| Measuring Time | 30 minutes or 60 minutes selectable | 30 minutes or 60 minutes selectable |
| Sample Interval | 3 minutes | 3 minutes |
| Measurement Range | (1-140)mm/h | (1-140)mm/h |
| Temperature Compensation | Refer to 18°C automatically (selectable) | Refer to 18°C automatically (selectable) |
| Reading Resolution | ±0.1mm | ±0.1mm |
| Result Resolution | 1mm/1h, 1mm/2h | 1mm/1h, 1mm/2h |
| Blood Level Range | 50mm~64mm | 50mm~64mm |
| Display | Color LCD screen | Color LCD screen |
| Input | Touch screen | Touch screen |
| Interface | RS-232 serial port | RS-232 serial port |
| Internal thermal recorder | Internal thermal recorder | |
| Storage | 4,000 results | 4,000 results |
| Power Supply | AC100-240V, 50/60Hz | AC100-240V, 50/60Hz |
| Operation Conditions | Temperature 5C°~40°C Humidity ≤80% | Temperature 5C°~40°C Humidity ≤80% |
| Sizes(W×D×H)(mm) | 365×300×180 | 365×300×180 |
| Shipping Size (W×D×H)(mm) | 760x500x400 | 710x440x350 |
| N.W./G.W. (kg) | 11/20 | 7.5/15 |
ESR Analyzer Features:

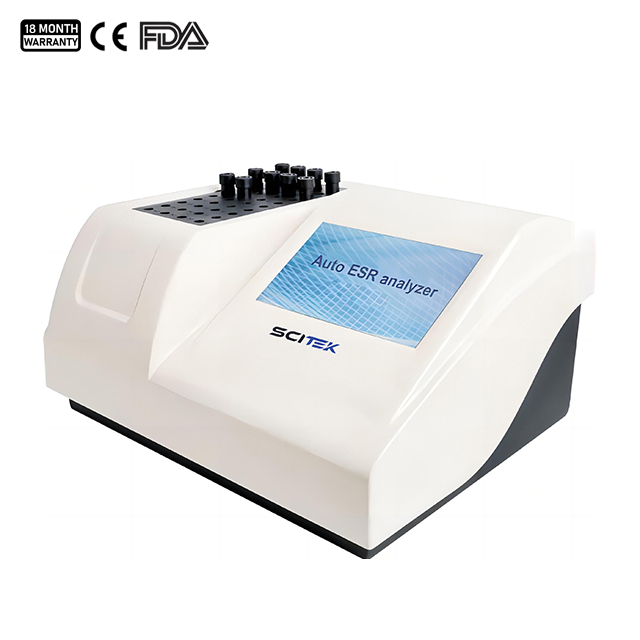

The ESR-10/20 ESR analyzer automatically determines erythrocyte sedimentation rate in vertical test tubes, providing accurate and efficient results and eliminating the need for manual measurements. It is an important tool for diagnosing and monitoring various inflammatory and autoimmune diseases (e.g., infections, rheumatoid arthritis, and certain cancers).
Simultaneous testing of 20/40 ESR tubes is possible, with a rapid measurement speed of up to 80 tubes/hour;
A seven-inch LCD touchscreen can display the measurement results
The whole process of measurement is controlled by a computer, with no need for human operation to reduce the operation error or human error
Measurements can be performed in two modes: 30 minutes or 60 minutes;
Provides dynamic graphs of erythrocyte sedimentation;
At the end of the ESR test, the hematocrit can be calculated from the centrifuged ESR tube;
Can print analysis results on the built-in printer;
