Digital Viscometer (scitek-0450) Products
| Name | Digital Viscometer |
| Code | scitek-0450 |
| Type | Standard |
| Brand | Scitek |
| Category | Physical Measurement |
| subcategory | Viscometer |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Product details for Invoice
Model : VSC-1N; VSC-2N; VSC-3N; VSC-AIN
Measuring Range (mPa·s) : 20-600,000; 12-6,000,000; 160-80,000,000; 50-10,000,000
Number of Spindles : 4 types(L1~L4)
Accuracy : ±1%(FS)(Newtonian Fluid)
Repeatability : ±0.5%(FS)(Newtonian Fluid)
The digital viscometer accurately measures the viscosity of medium to medium viscosity fluids in all applications from laboratory to quality control.
Measuring Range (mPa·s) : 20-600,000; 12-6,000,000; 160-80,000,000; 50-10,000,000
Number of Spindles : 4 types(L1~L4)
Accuracy : ±1%(FS)(Newtonian Fluid)
Repeatability : ±0.5%(FS)(Newtonian Fluid)
The digital viscometer accurately measures the viscosity of medium to medium viscosity fluids in all applications from laboratory to quality control.
Product Details
Digital Viscometer Features:
Extreme low viscometer adapter (with one spindle L0)
Small sample adapter (with spindle 21, 27, 28 and 29 each)(Not For VSC-AIN)
Spindle L5(Not For VSC-AIN)
Temperature-controlled heater (with spindle 21, 27, 28 and 29 each)
Special software that can complete the function in collecting the data automatically
Specially used printer
Digital Viscometer Specifications:
| Model | VSC-1N | VSC-2N | VSC-3N | VSC-AIN |
|---|---|---|---|---|
| Measuring Range (mPa·s） | 20-600,000 | 12-6,000,000 | 160-80,000,000 | 50-10,000,000 |
| Rotating Speed (RPM) | 1-60 | 0.1-99.9 | 0.1-99.9 | 0.1-200 |
| Number of Spindles | 4 types(L1~L4) | 4 types (21, 27, 28, 29) | ||
| Accuracy | ±1%(FS)(Newtonian Fluid) | |||
| Repeatability | ±0.5%(FS)(Newtonian Fluid) | |||
| Readability | 1. when viscosity is lower than 10.0 cp: 0.01 2. when viscosity is lower than 10000 cp: 0.1 3. when viscosity is equal or higher than 10000 cp: 1 | |||
| Power Supply | AC100~240V, 50/60Hz | |||
| LCD Screen Display | The LCD screen can display the viscosity, speed, torque, spindle and the maximum viscosity can be measured in the current spindle speed value. | |||
| L0 Spindle is for Option Measured Range (mPa·s) | 1~600 | 0.6~6,000 | 6~60,000 | 3~60,000 |
| Shipping Size (WxDxH)(mm) | 400x350x360 | 400x350x550 | ||
| G.W(kg) | 9 | 10.5 | ||

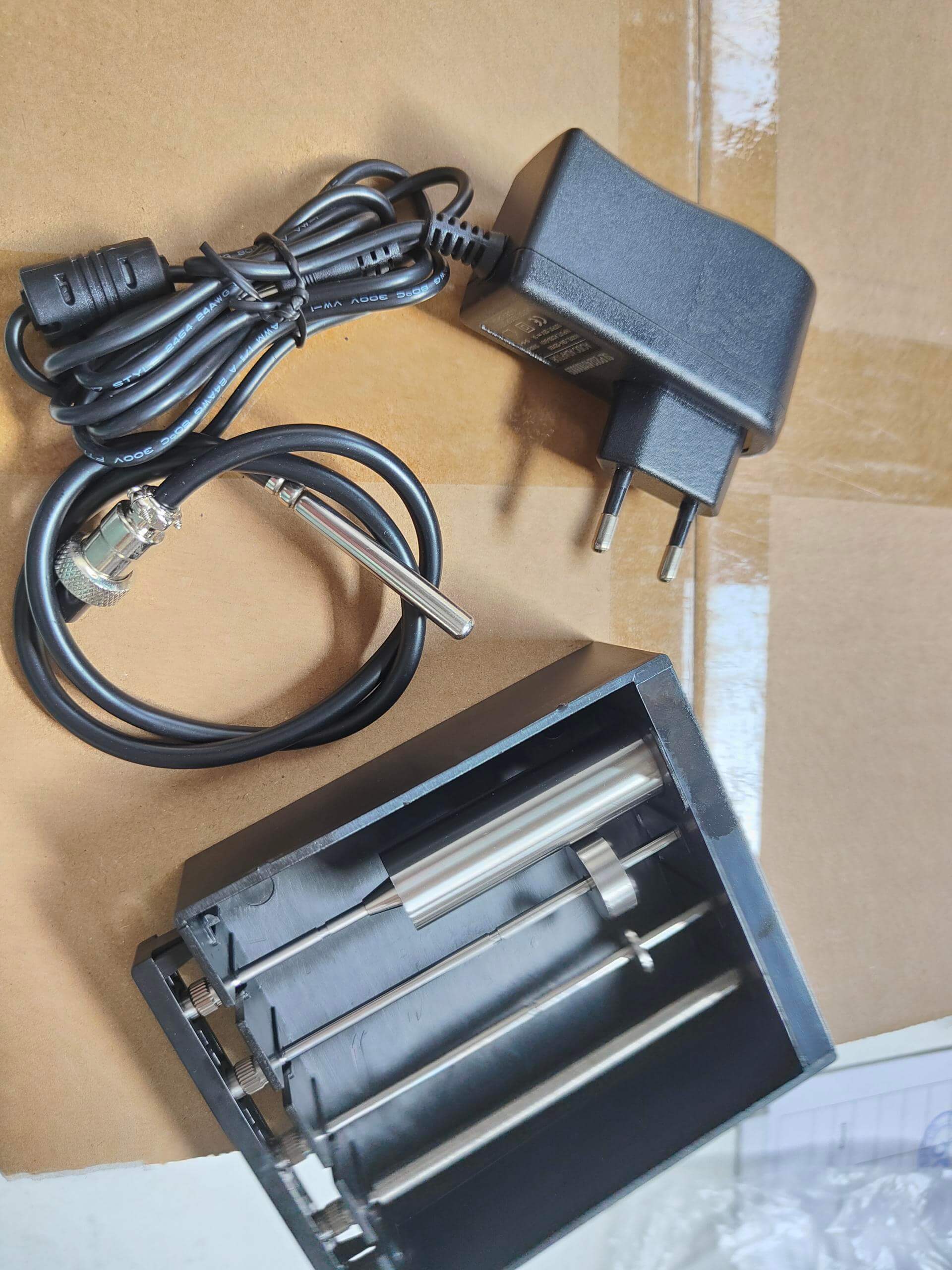

Apparatus to be equipped:
| Digital viscosity meter | 1 pce | Ascending and falling rack | 1 set |
|---|---|---|---|
| Standard Sspindle | 1 set | Power adapter | 1 pce |

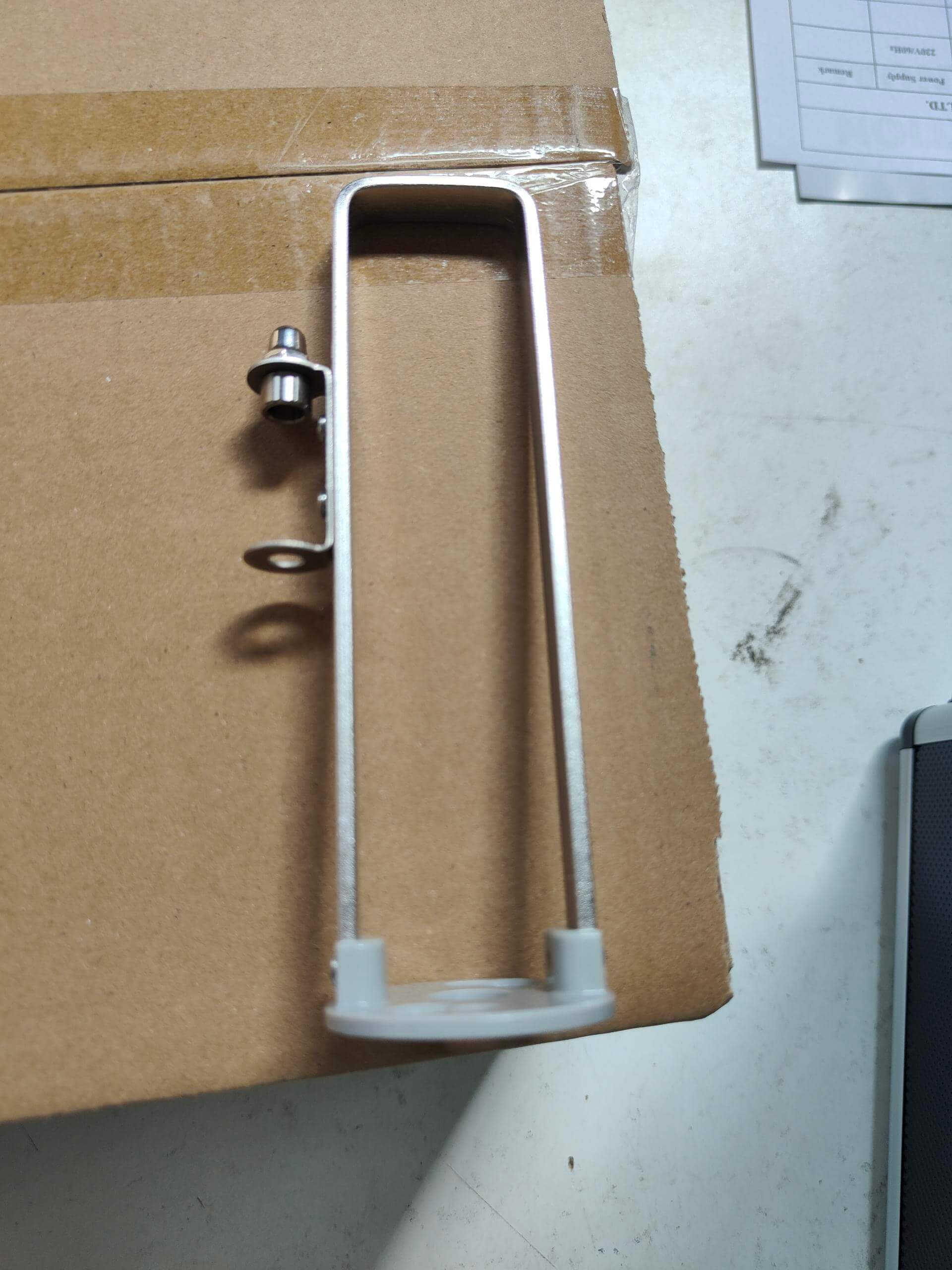

| Protective Frame of Spindle | 1 pce | Spanner | 1 pce |

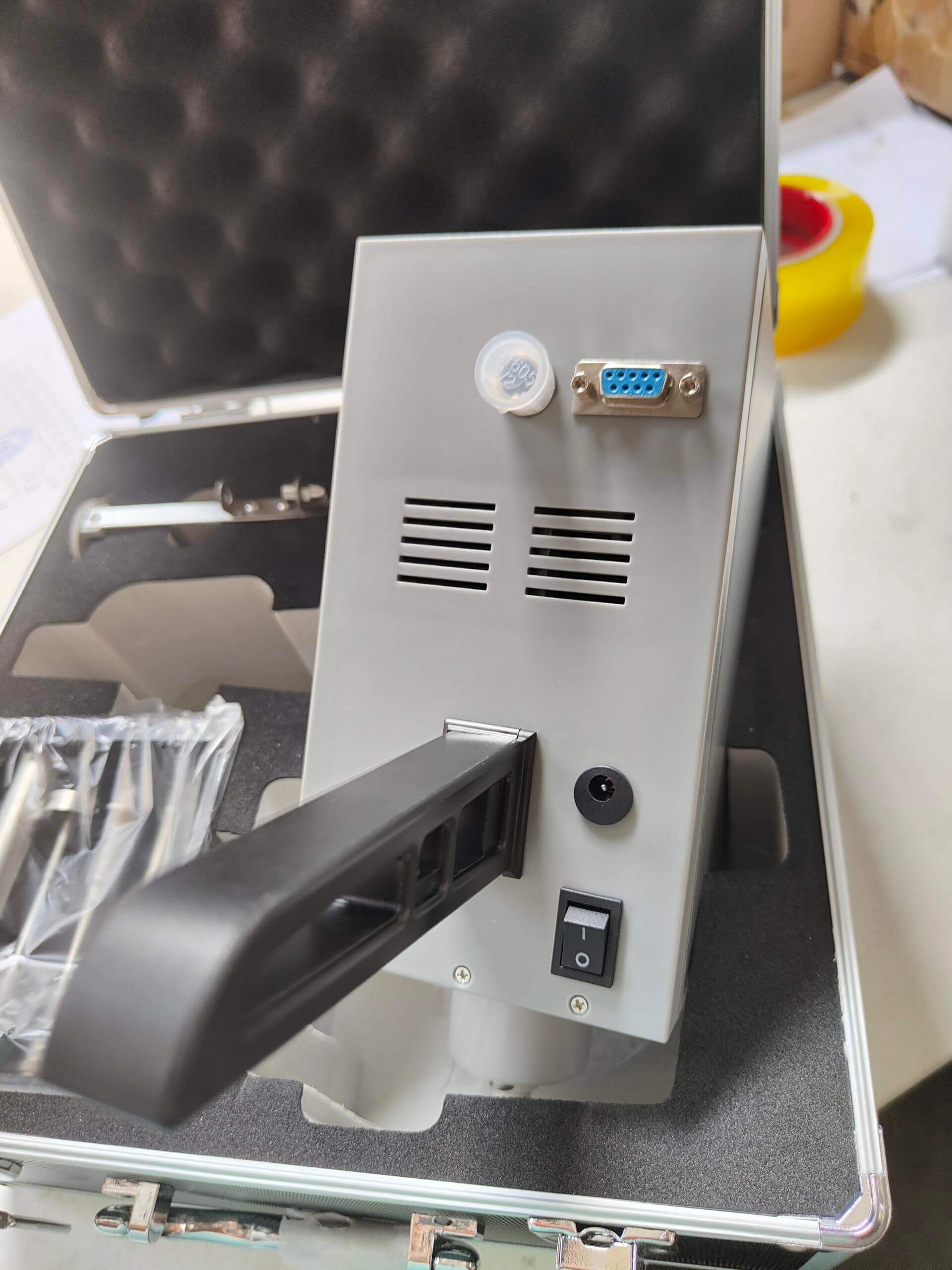

| Seat and Leveling Feet | 1 set | RS232 standard output interface | 1 pce |
| RTD Temperature Probe | 1 pce |
Details of Digital Viscometer (VSC-2N):

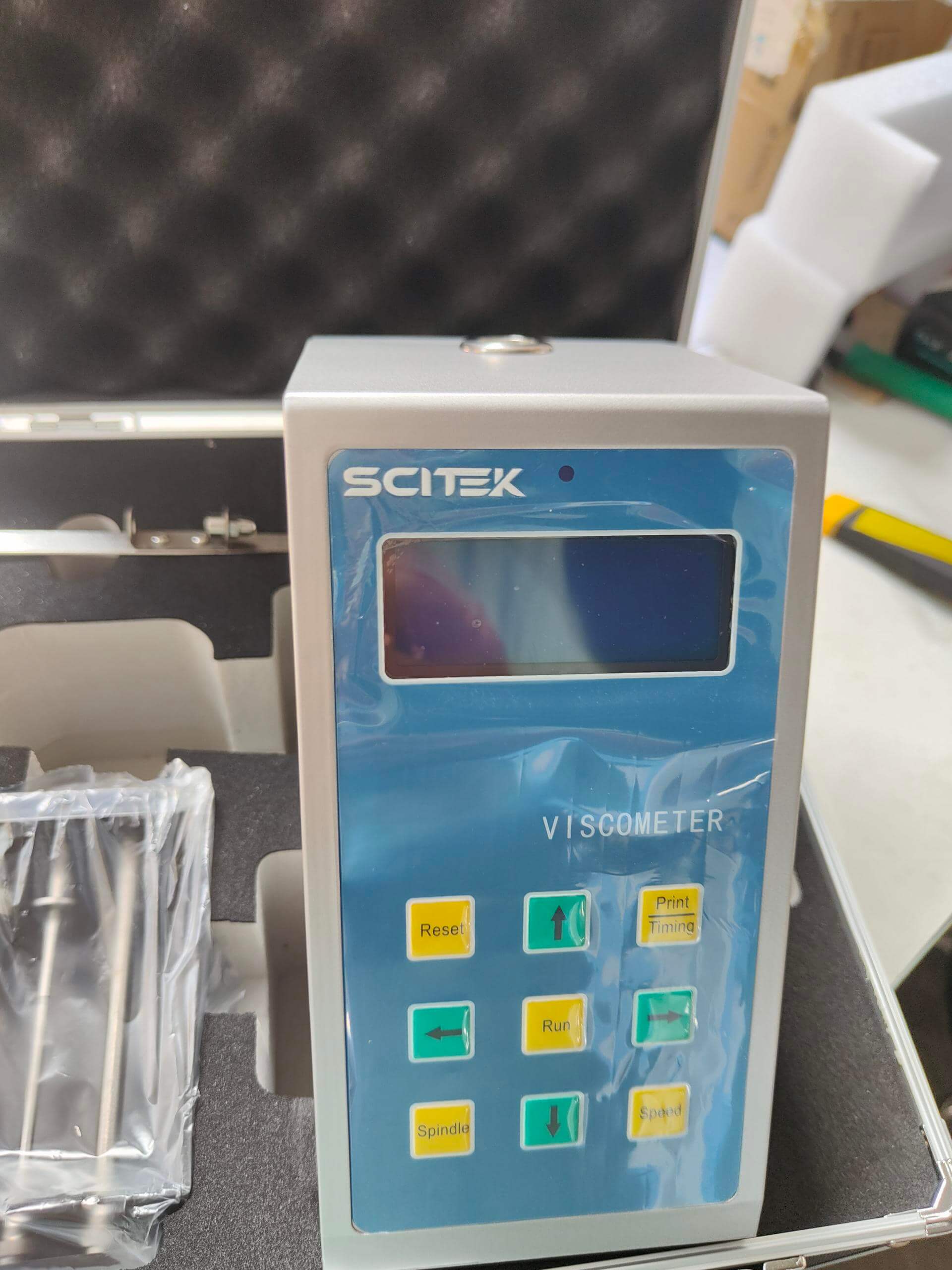

The buttons next to the operating panel make it easy for the user to select parameters and adjust settings.
The digital viscometer's high-definition LCD display shows the viscosity value, rotational speed, rotor number and other information.
Spindles are usually made of high-strength stainless steel to ensure long service life and stability in different types of fluids.
