| Name | Chemical Storage Cabinet |
| Code | scitek-1144 |
| Type | Standard |
| Brand | Scitek |
| Category | Lab Furniture |
| subcategory | Storage Cabinet |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Shelf : 1; 1; 3; 1; 2; 2; 2; 2

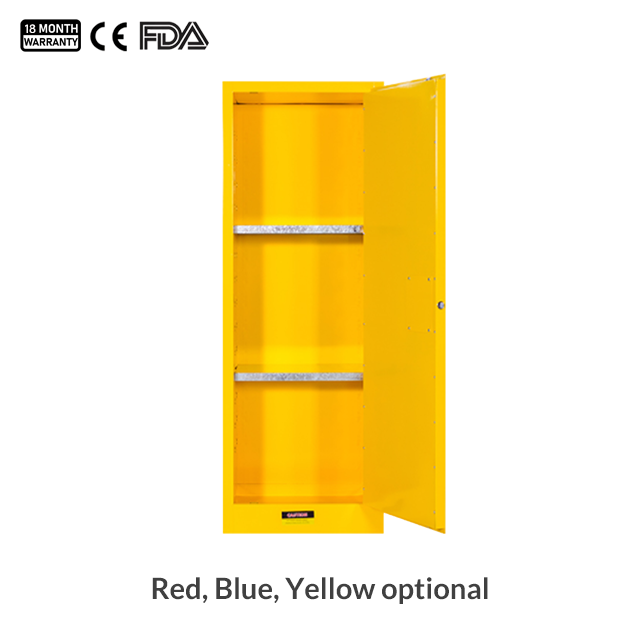

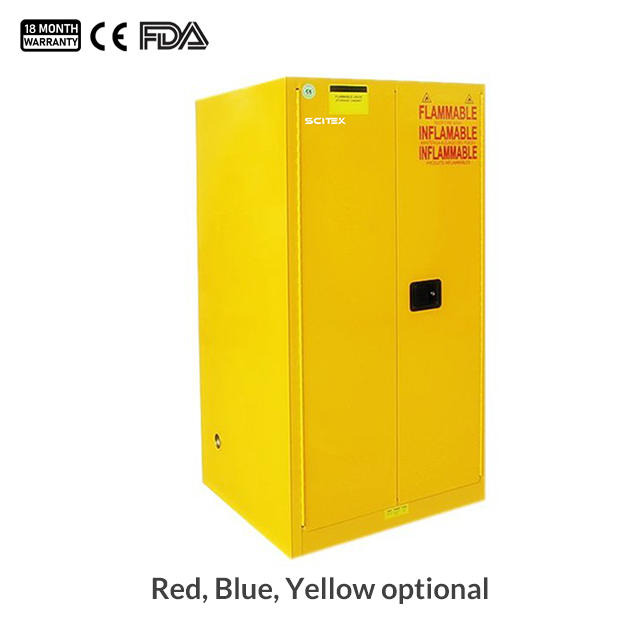

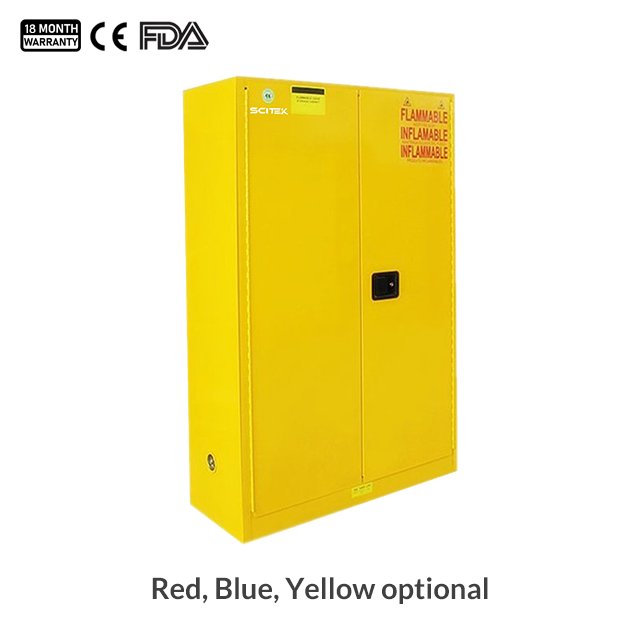

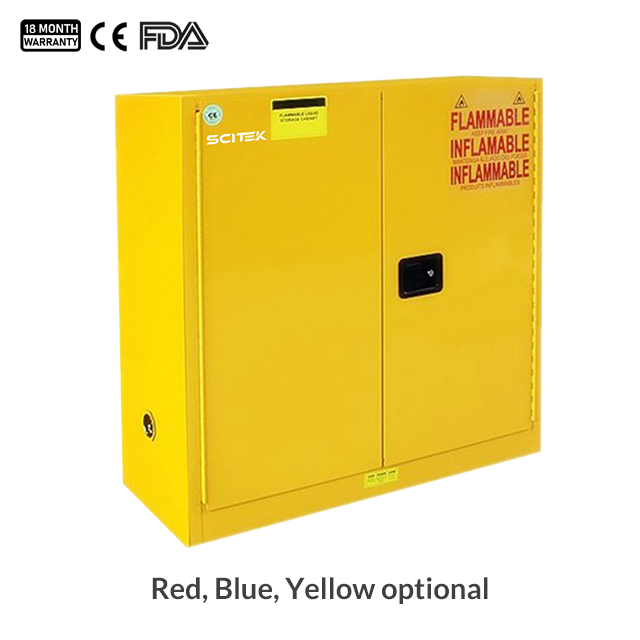

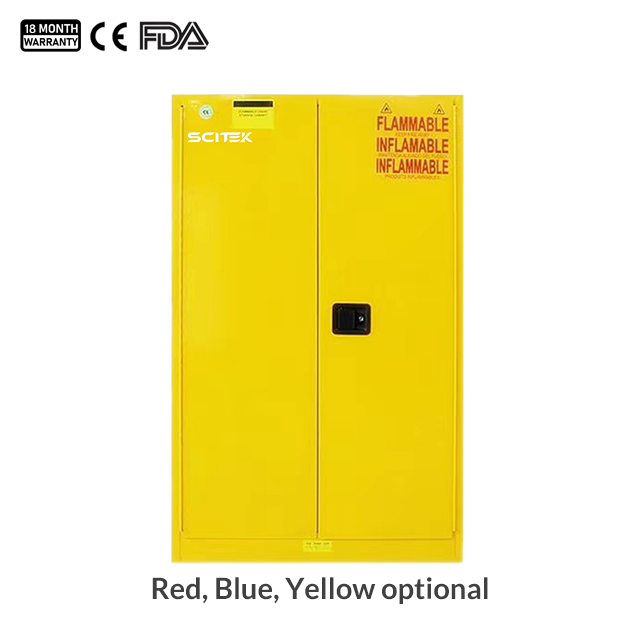

BC series yellow safety cabinets are used to store various flammable items with a flash point below 45°C. For example: gasoline, alcohol, kerosene, methanol, ethanol, etc.
Red safety cabinets store flammable items with a flash point above 45°, such as diesel, engine oil, lubricating oil, tung oil, etc.
Blue safety cabinets are used to store various weakly corrosive items or weak acids and bases, such as acetic acid, carbonic acid, phosphoric acid, silicic acid, etc.
According to the convenience of storage and use of items, choose safety cabinets of different specifications for storage, separate various types of dangerous items in an organized manner, and store them nearby to improve your work efficiency. Products are widely used in various fields such as medical and health care, scientific research, industry, foreign trade, and commerce.
Chemical Storage Cabinet Specifications:
| Model | CSC-04 | CSC-12 | CSC-22 | CSC-30 | CSC-45 | CSC-60 | CSC-90 | CSC-180 |
|---|---|---|---|---|---|---|---|---|
| External Size (WxDxH)(mm) | 430x430 x560 | 590x460 x890 | 600x460 x1650 | 1090x460 x1120 | 1090x460 x1650 | 860x860 x1650 | 1090x860 x1650 | 900x460 x1800 |
| Internal Size (HxWxD)(mm) | 350x330 x460 | 510x360 x790 | 520x360 x1550 | 1010x360 x1020 | 1010x360 x1550 | 780x760 x1550 | 1010x760 x1550 | 820x360 x1700 |
| Capacity (gallon/L) | 4/15 | 12/45 | 22/83 | 30/114 | 45/170 | 60/227 | 90/340 | 40/150 |
| Storage Capacity (500ml) | 32 | 48 | 96 | 96 | 144 | 270 | 324 | 120 |
| Shelf | 1 | 1 | 3 | 1 | 2 | 2 | 2 | 2 |
| Weight (kg) | 35 | 50 | 85 | 90 | 118 | 140 | 160 | 70 |
| Door | Single | Double | ||||||
| Shipping Size (WxDxH)(mm) | 460x46 0x710 | 620x490 x1050 | 630x49 0x1800 | 1120x49 0x1270 | 1120x49 0x1800 | 890x89 0x1800 | 1140x91 0x1800 | 950x51 0x1950 |
| Gross Weight (kg) | 39 | 55 | 91 | 98 | 128 | 153 | 180 | 80 |
Chemical Storage Cabinet Features:
Double-layer fireproof steel plate structure, with an insulation layer of 38mm between the two layers of steel plates;
High-quality steel plate with a thickness of 1.2mm, longer service life and better fire resistance;
Three-point linkage door lock, which can open the cabinet door 180 degrees and is equipped with dual keys; an optional padlock can realize double-lock security management for two people.
The 5cm high leak-proof liquid tank prevents liquid from spilling;
Professional and standardized warning labels are obvious;
Chemical storage cabinet is equipped with double ventilation holes equipped with anti-fire protection devices, placed at the bottom and the opposite top;
Unique anti-spill laminate, which can be adjusted freely;
The storage cabinet shelves are stable and reliable;
Both the inside and outside of the cabinet are sprayed with epoxy resin paint, and the surface is bright and resistant to corrosion and moisture;
The chemical storage cabinet is equipped with an electrostatic grounding conduction port to facilitate the connection of electrostatic grounding wires.
