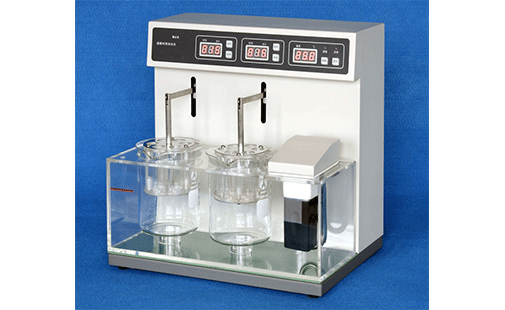

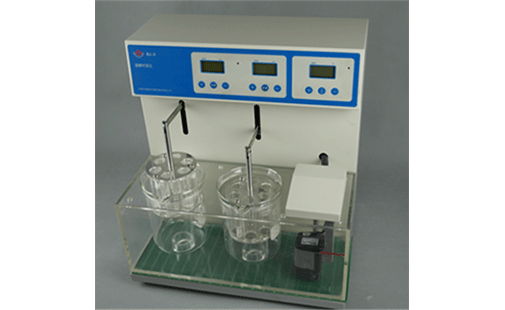

BJ-2 BJ-2X Tablet Disintegration Tester

Applicable Standards:

1. National standard (Chinese codex)/2005

2. Corporate standard (Disintegration tester) Q/12Q0188-2004

Features:

1.There are twelve tubes in two basket assemblies.

2.Each test station is driven independently. Auto stop at timing point

3.The bath liquid can achieve an even temperature.

4.A MPU is used to automatically control the temperature, time and frequency of nacelle up and down.

5.Parameters can be preset at anytime. The preset and real data can be displayed alternately in time.

6.Automation: auto-test, auto-diagnose, auto-alarm.

Specification:

1. Basket assembly: 2

2. Nacelle up and down frequency: 30~32/min

3. Nacelle up and down range: 55±1mm

4. Automatic time range: 1-900min

5. Temperature range: ambient to 45.0°C

6. Accuracy of controlling temperature: ±0.5°C

7. Power: 220V/50Hz/600W or 110V/60Hz/600W

8. Dimension: 400x300x420mm
