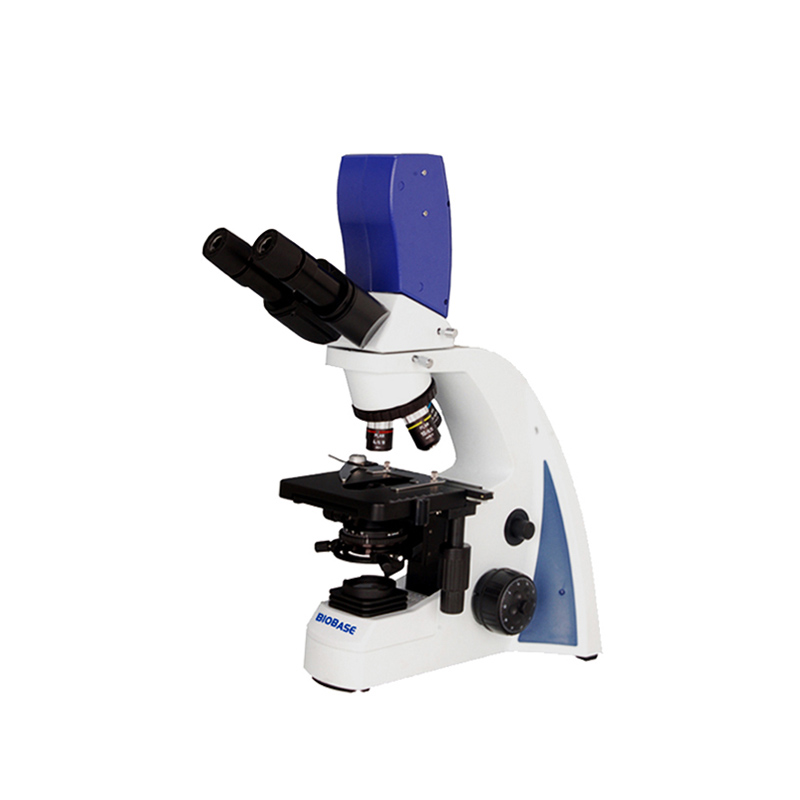

| Name | BIOBASE BMB-117M BMB-300M Build-in Camera Digital Microscope Camera Digital With Camera |
| Code | biobase-0466 |
| Type | Standard |
| Brand | Biobase |
| Category | Optical Instruments |
| subcategory | Microscope |
| Unit | pcs (pcs) |
| In Stock | Yes |
| Berminat hub kami: |  |
Models:
Model | BMB-117M | BMB-300M | |||
Viewing Head | Compensation Free Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm | √ | √ | ||
Camera | Valid Pixel | 1280*1024(1.3M Pixel) | √ | ||
1600X1200 (2.0M Pixel) | ● | ||||
2048*1036 (3.0M Pixel) | √ | ||||
2052*1944 (5.0M Pixel) | ● | ||||
Output Mode | USB2.0 | √ | √ | ||
Operation System | WINDOWS7/8 2000 / XP/ VISTA | √ | √ | ||
Software | Scope Image 9.0 | √ | √ | ||
Range of Viewing Field | >90%(BMB-117M ); 18mm(BMB-300M) | √ | √ | ||
Eyepiece | WF10×/ 18 | √ | √ | ||
P16×/ 11 | ● | ||||
Extra wide filed eyepiece EW10×/ 20 with diopter | ● | ||||
Objective | Achromatic Objective 4×,10×,40×,100× | √ | |||
Infinite plan Achromatic Objective 4×,10×,40×,100× | √ | ||||
Infinite Plan Achromatic Phase Objective 10×,20×,40×,100× | ● | ||||
Oil Darkfield Objective with Iris Diaphragm 100×（NA0.36-1.25） | ● | ||||
Nosepiece | Backward Quadruple Nosepiece | √ | |||
Quintuple Nosepiece | ● | ||||
Quadruple Nosepiece | √ | ||||
Stage | Double Layers Mechanical Stage 140*140mm, Moving range 75*50mm | √ | √ | ||
Condenser | Abbe NA1.20 with Iris Diaphragm & Fliter | √ | |||
Swing Condenser N.A.0.9/0.25 | √ | ||||
Turret Phase Contrast Condenser | ● | ||||
Dark Field Condenser (Dry) | ● | ||||
Dark Field Condenser (Oil) | ● | ||||
Focusing | Coaxial Coarse & Fine Adjustment System, Range 24mm, Fine Division 0.004mm | √ | |||
Coaxial Coarse & Fine Adjustment System, Range 20mm | √ | ||||
Illumination | LED 3W, Brightness Adjustable | √ | |||
Halogen Lamp 6V/ 20W, Brightness Adjustable | ● | ||||
S-LED Powerful Illumination | √ | ||||
Power Supply | AC 110-220V, 50/60HZ | √ | √ | ||
Accessories | Phase Contrast Kit | ● | ● | ||
Dark-Field Attachment | ● | ● | |||
Polarization Attachment | ● | ● | |||
Package Size | 396*262*492(BMB-117M), 334*334*533(BMB-300M) | √ | √ | ||
Gross Weight | 7.5kg (BMB-117M), 12.5kg (BMB-300M) | √ | √ | ||
Note: √ Standard Outfit, ● Optional Without this feature
